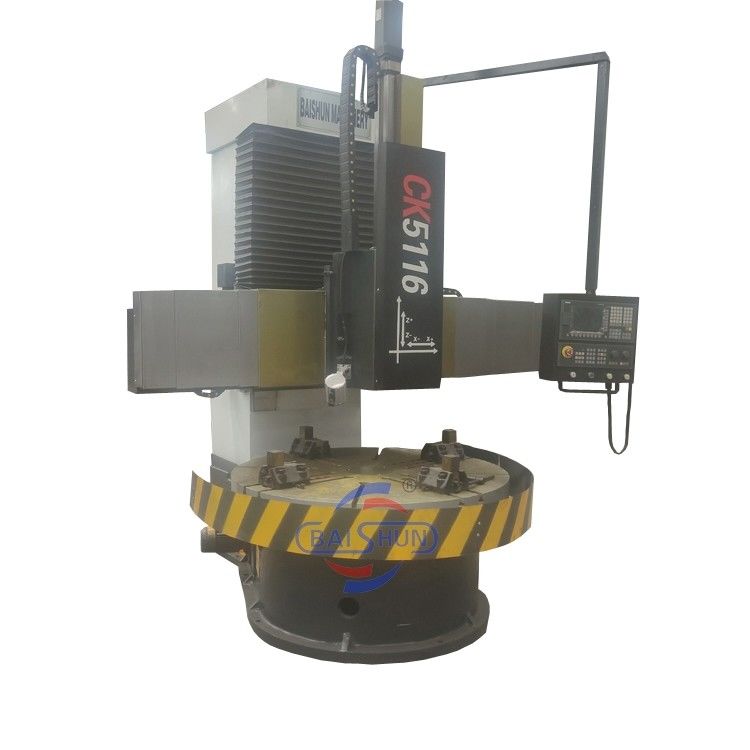

CK5116 Single Column CNC Vertical Lathe Machine Metal Tool Equipment

Product Details

Place of Origin: China

Brand Name: Baishun

Certification: ISO

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 40 Set/Sets per Quarter Vertical Lathe Machine Tool

Get Best Price
Highlight:
Product Name:
Single Column CNC Vertical Lathe Machine
Type:
VERTICAL
Warranty:
1 Year
Control System:
SIEMENS GSK FANUC (optional)
Product Type:
Universal Lathe Machine
Precision:
High Precision
Turret Type:
Electric Turret
Keyword:
Vertical Lathe Machine
Product Name:
Single Column CNC Vertical Lathe Machine
Type:
VERTICAL
Warranty:
1 Year
Control System:
SIEMENS GSK FANUC (optional)
Product Type:
Universal Lathe Machine
Precision:
High Precision
Turret Type:
Electric Turret
Keyword:
Vertical Lathe Machine
CK5116 Single Column CNC Vertical Lathe Machine Metal Tool Equipment

CK5116 Single Column CNC Vertical Lathe Machine Metal Tool Equipment



A. Product application and features:



CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy work pieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve work pieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the work pieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the work piece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.



1. It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
2. It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3. Spindle bearings use domestic famous-brand company products.
4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.



B. Main technical data (Vertical Lathe Machine Tool):

Model CK518 CK5112Q CK5112A CK5116Q CK5116A CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 5000 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 5-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 650 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 916 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30 30
