CK5120 Single Column CNC Metal Turning CNC Vertical Lathe Machine

CK5120 Single Column CNC Metal Turning CNC Vertical Lathe Machine

Product application and features:

The CNC vertical lathe is a top-performing machine with a wide range of capabilities and high productivity. Our company has developed a cutting-edge machine tool that seamlessly integrates animatronics and hydraulics, drawing inspiration from advanced design and manufacturing techniques, and incorporating our rich corporate culture. This allows us to deliver world-class products to both domestic and international customers.

To ensure high precision and durability, we have employed integral casting and a thermally balanced structure for the table. The main shaft bearing utilizes a high-precision double row cylindrical roller bearing, and the table guideway is optimized for smooth operation.

Please note that we are constantly striving to enhance our products, and therefore, the information provided may be subject to change without prior notice.

1. It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
2. It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3. Spindle bearings use domestic famous-brand company products.
4. Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5. Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6. Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7. Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.

Main technical data (2 Meter Vertical Lathe Machine):

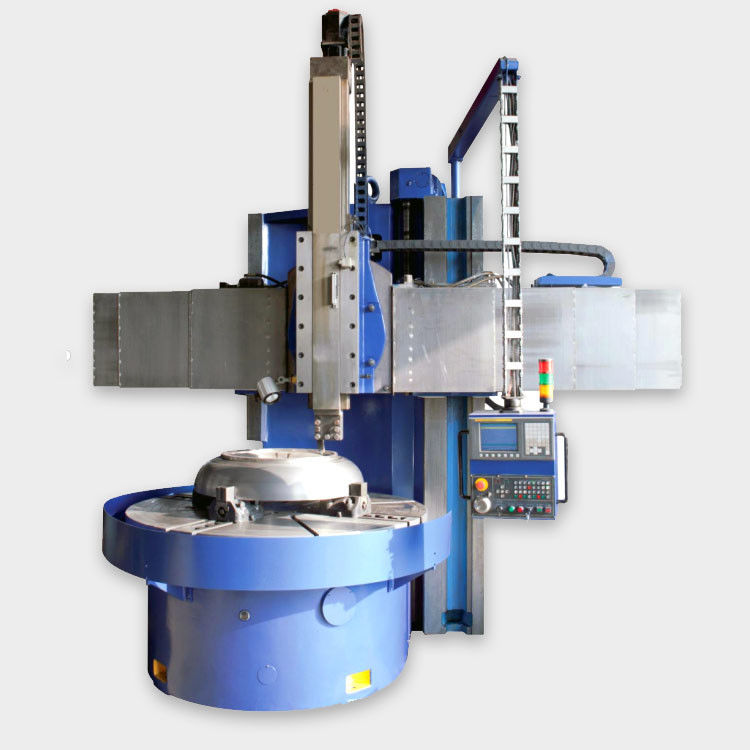

Machine pictures for your reference:
