CK5112 Single Column Metal Turning Automatic CNC Vertical Lathe Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 35 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:
Prodcut Name:
Automatic CNC Vertical Lathe Machine
Type:
VERTICAL
Max. Swing Diameter (mm):
1200 Mm
Max. Height Of Workpiece (mm):
1000
Max. Spindle Speed (r.p.m):
180 R.p.m
Machining Capacity:
Middle Duty
Spindle Motor Power(kW):
15
Positioning Accuracy (mm):
±0.002
Repeatability (X/Y/Z) (mm):
±0.001
CNC Control System:
GSK
Prodcut Name:
Automatic CNC Vertical Lathe Machine
Type:
VERTICAL
Max. Swing Diameter (mm):
1200 Mm
Max. Height Of Workpiece (mm):
1000
Max. Spindle Speed (r.p.m):
180 R.p.m
Machining Capacity:
Middle Duty
Spindle Motor Power(kW):
15
Positioning Accuracy (mm):
±0.002
Repeatability (X/Y/Z) (mm):
±0.001
CNC Control System:
GSK
CK5112 Single Column Metal Turning Automatic CNC Vertical Lathe Machine





Machine description:



CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy workpieces with large radial size and relatively small axial size and complex shape. Uch as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve workpieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.



1. Our CNC vertical lathe is equipped with the Siemens 828DD system, ensuring precise control. It features a vertical tool post, allowing for a maximum machining diameter of 1600mm, a table diameter of 1400mm, and a maximum machining height of 1000mm.

2. The transmission device adopts a four-speed continuous transmission, providing convenience, sensitivity, and reliability.

3. All gears in the system are made of 40Cr grinding gears, guaranteeing high rotation accuracy and minimal noise.

4. This machine is suitable for processing non-ferrous metals, black metals, and non-metallic materials using high-speed steel tools and carbide cutting tools. It can perform various operations, including turning inner and outer cylindrical surfaces, cutting different types of faces (such as hooks), inner and outer conical surfaces, threading, as well as slotting and cutting.





Machine specification



 Model  CK518  CK5112Q  CK5112A  CK5116Q  CK5116A  CK5120A  CK5126A
 Max.turning diameter(mm)  800  1200  1200  1600  1600  2000  2600
 Working table diameter (mm) 700  1000  1000  1400  1400  1800  2200
 Max. height of workpiece (mm)  800  1000  1000  1200  1200  1250  1400
 Max. weight of work-piece (kg)  1500 1500   3200  3200  5000  8000  8000
 Range of worktable rotation speed (rpm)  30-260  20-180  6.3-200  15-160  5-160  3.2-100  2.2-70
 Feeding series  stepless   stepless   stepless   stepless   stepless   stepless   stepless
 Range of tool rest feed (mm/min)  0.25-90  0.25-90  0.8-86  0.25-90  0.8-86  0.8-86  0.8-86
 Cross beam travel (mm)  500  1000  650  1200  650  890  1090
 Horizontal travel of tool rest (mm)  500  700  700  900  916  1115  1400
 Vertical travel of tool rest (mm)  450  500  650  750  800  800  800
 Size of section of cutter bar (mm)  30*40  30*40  30*40  30*40  30*40  30*40  30*40
 Main motor power (kw)  11  15  22  15  30  30  30



Machine picture

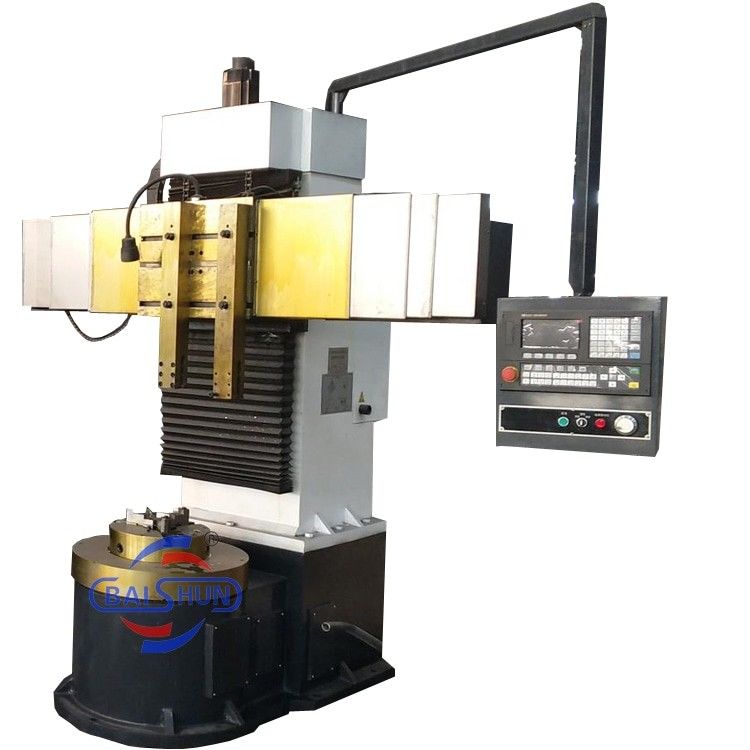

CK5112 Single Column Metal Turning Automatic CNC Vertical Lathe Machine 0CK5112 Single Column Metal Turning Automatic CNC Vertical Lathe Machine 1
