New CK5112 Metal Turning Lathe Automatic CNC Vertical Lathe Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: ISO

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:
Machine Name:
Automatic CNC Vertical Lathe Machine
No. Of Spindles:
Single
Max. Turned Length (mm):
1200
Dia. Of Work Table:
1000mm
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Travel (Z Axis)(mm):
700 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
2350*2350 *2700mm
Machine Name:
Automatic CNC Vertical Lathe Machine
No. Of Spindles:
Single
Max. Turned Length (mm):
1200
Dia. Of Work Table:
1000mm
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Travel (Z Axis)(mm):
700 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
2350*2350 *2700mm
New CK5112 Metal Turning Lathe Automatic CNC Vertical Lathe Machine

New CK5112 Metal Turning Lathe Automatic CNC Vertical Lathe Machine

Product Description

The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.

Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with animatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.

To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway.



As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice



CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy workpieces with large radial size and relatively small axial size and complex shape. Uch as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve workpieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.





Machine specification



 Model  CK518  CK5112Q  CK5112A  CK5116Q  CK5116A  CK5120A  CK5126A
 Max.turning diameter(mm)  800  1200  1200  1600  1600  2000  2600
 Working table diameter (mm) 700  1000  1000  1400  1400  1800  2200
 Max. height of workpiece (mm)  800  1000  1000  1200  1200  1250  1400
 Max. weight of work-piece (kg)  1500 1500   3200  3200  5000  8000  8000
 Range of worktable rotation speed (rpm)  30-260  20-180  6.3-200  15-160  5-160  3.2-100  2.2-70
 Feeding series  stepless   stepless   stepless   stepless   stepless   stepless   stepless
 Range of tool rest feed (mm/min)  0.25-90  0.25-90  0.8-86  0.25-90  0.8-86  0.8-86  0.8-86
 Cross beam travel (mm)  500  1000  650  1200  650  890  1090
 Horizontal travel of tool rest (mm)  500  700  700  900  916  1115  1400
 Vertical travel of tool rest (mm)  450  500  650  750  800  800  800
 Size of section of cutter bar (mm)  30*40  30*40  30*40  30*40  30*40  30*40  30*40
 Main motor power (kw)  11  15  22  15  30  30  30

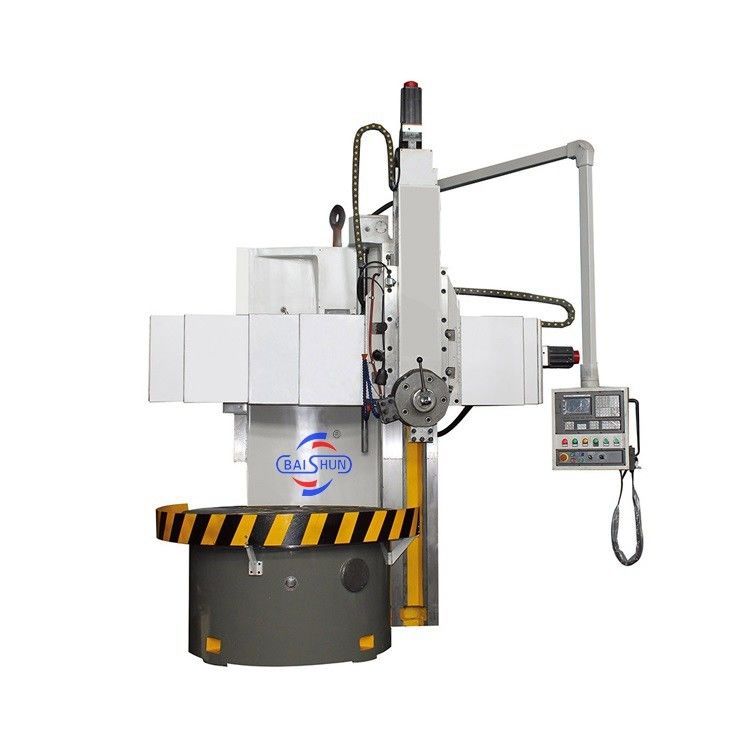

Machine picture

New CK5112 Metal Turning Lathe Automatic CNC Vertical Lathe Machine 0

New CK5112 Metal Turning Lathe Automatic CNC Vertical Lathe Machine 1
