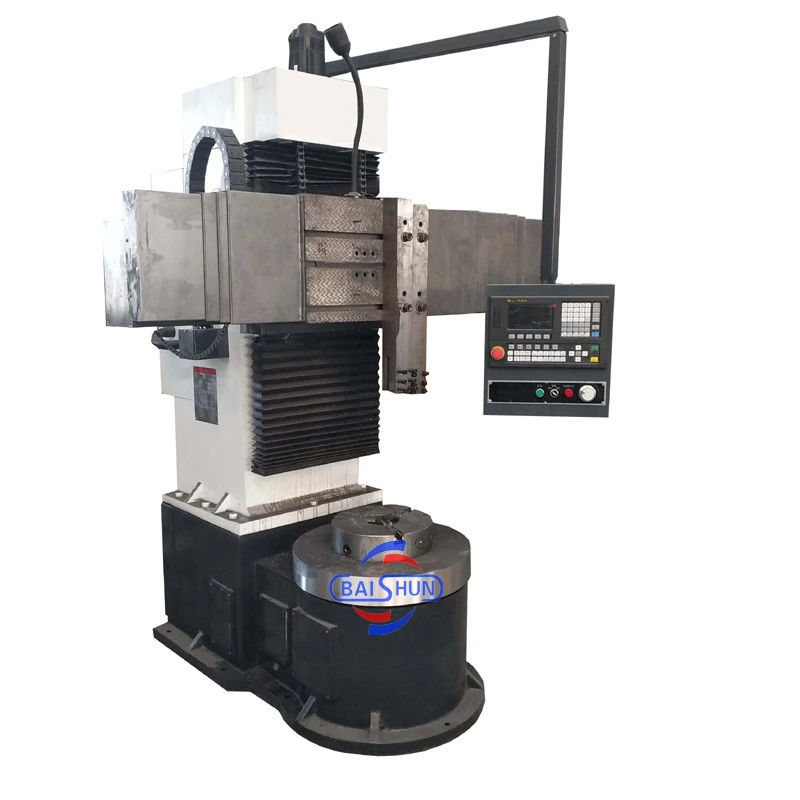

Automatic CNC Single Column Vertical Turret Lathe Torno Factory Directly Supply

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN

Certification: CE ISO9001

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price
Highlight:
Max. Length Of Workpiece (mm):
1200
Max. Spindle Speed (r.p.m):
180 R.p.m
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Dimension(L*W*H):
2350*2350 *2700mm
Tool Post Stations:
4
Product Name:
CNC Single Column Vertical Turret Lathe Torno
Dia. Of Worktable:
1000mm
Max. Length Of Workpiece (mm):
1200
Max. Spindle Speed (r.p.m):
180 R.p.m
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Dimension(L*W*H):
2350*2350 *2700mm
Tool Post Stations:
4
Product Name:
CNC Single Column Vertical Turret Lathe Torno
Dia. Of Worktable:
1000mm
Automatic CNC Single Column Vertical Turret Lathe Torno Factory Directly Supply
Product Description


The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.

Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.


1.The overall layout
Machine tools mainly by the table, table base, column, beam, vertical knife frame composition. The machine tool base are used HT250 cast iron, the use of resin sand process, cast after the stew fire, rough processing after aging treatment (artificial aging and vibration aging). Casting quality and reliable without cracks, pores, shrinkage and white mouth tissue, castings by stew fire, aging treatment with a stable organization to ensure the use of the machine during the stability of the product quality certificate to provide molten iron chemical composition analysis report, heat treatment Report and heat treatment temperature time curve.





2.The main drive

Main drive main motor, through the gear box 16 gear speed for speed conversion. The gears in the box are quenched and ground to ensure transmission accuracy and efficiency and reduce noise and reduce vibration.

3.Workbench

The table consists of table, table base, spindle components and transmission mechanism, table and table base for the overall casting processing. The table guide surface is inlaid with an aluminum alloy guide plate and a pressure oil is injected between the guide rails to form a dynamic pressure rail. So the table carrying capacity, high precision rotation.



4.Beams

The beam moves up and down on the column. The beam consists of a knife feed drive mechanism, a beam clamping mechanism and a hydraulic device. Install a set of automatic lubricating oil pump on the beam, according to the need to lubricate the rail surface.



5.Vertical knife frame

Z-axis, Z-axis by the servo motor drive, through the planetary reducer to increase the torque, by the electromagnetic clutch switch control two axes and locked each other to achieve a variety of complex processing.



6.Hydraulic system

The hydraulic system includes: the table dynamic pressure system, the main drive transmission system, beam clamping and hydraulic system, vertical knife frame hydraulic balance system. Hydraulic system is essential, machine lubrication, dynamic pressure rail stability, to ensure the stability of the hydraulic system and interchangeability.



Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30
