Vertical Machining Center CNC Lathe CK5225 Machine Tool Metal Cutting Vertical Lathe

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5235

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.
2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price
Highlight:
Max. Length Of Workpiece (mm):
3500
Max. Spindle Speed (r.p.m):
50 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Twin
Max. Turned Length (mm):
3500
Number Of Axes:
2
Travel (X Axis)(mm):
750 Mm
Travel (Z Axis)(mm):
1800 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
3950*6300*4350mm
Voltage:
380V
CNC Control System:
GSK,SIEMENS, FANUC
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
35000
Max. Workpiece Weight::
8000kg
Max. Length Of Workpiece (mm):
3500
Max. Spindle Speed (r.p.m):
50 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Twin
Max. Turned Length (mm):
3500
Number Of Axes:
2
Travel (X Axis)(mm):
750 Mm
Travel (Z Axis)(mm):
1800 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
3950*6300*4350mm
Voltage:
380V
CNC Control System:
GSK,SIEMENS, FANUC
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
35000
Max. Workpiece Weight::
8000kg
Vertical Machining Center CNC Lathe CK5225 Machine Tool Metal Cutting Vertical Lathe

CNC Vertical Turning Lathe Machine CK5225 CK5235 Machine Tool Vertical Lathe



Double column vertical lathe is an advanced equipment with the integration of mechanical-electrical-hydraulic, which absorbing the new design philosophy and manufacturing technology. It adopts the CAD optimization design way, equips advanced functional components at home and abroad. In structure, it achieves strong strength, high dynamic and static stiffness, high precision, heavy loading, high efficiency, long service life, safe and reliable movement. Main technical specifications of each machine parts conform to the national related standards.

Machine has worktable base, worktable, main transmission box, gantry frame, beam, ram tool rest, feeding box, electrical system, operation station, hydraulic system, protection device and so on.



Worktable:

The worktable is composed of the worktable base, worktable, spindle components, and transmission device. It is made of cast iron, utilizing high-strength low-stress iron casting, which ensures sufficient rigidity, strength, and thermal stability. The worktable spindle bearing adopts high-precision double row short cylindrical roller bearings, guaranteeing precise rotation and long operational life.

Main transmission:

The machine employs a vertical shaft transmission system as its main drivetrain. It utilizes an AC servo motor to drive the spindle. The gearbox enables mechanical two-gear transformations by shifting the cylinder, allowing the worktable to achieve stepless speed regulation within the range of 0.63-63r/min.



Machine parameter

Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps   16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520

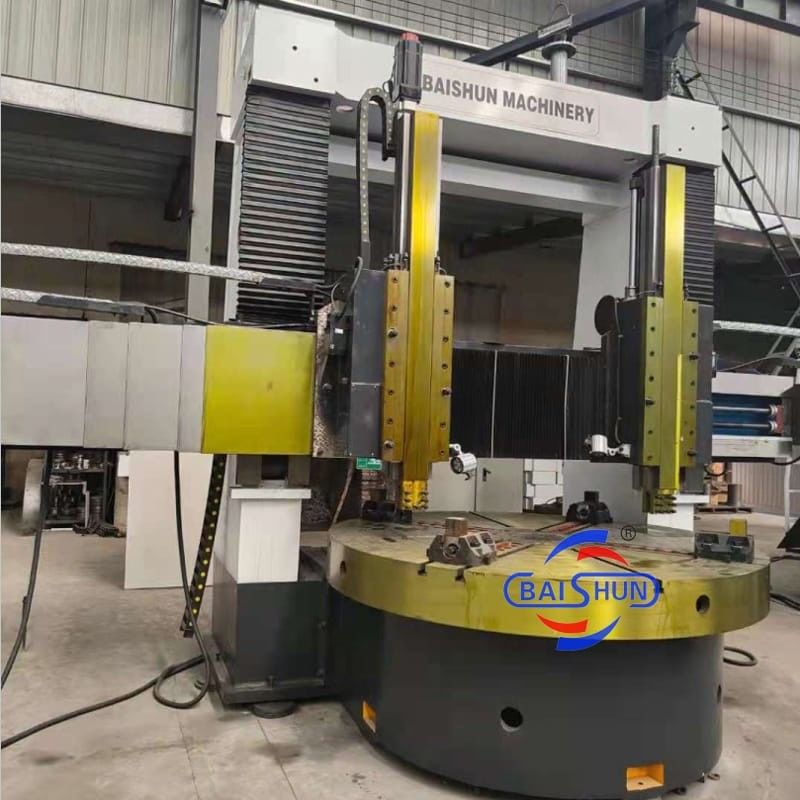

Product photos
Vertical Machining Center CNC Lathe CK5225 Machine Tool Metal Cutting Vertical Lathe 0Vertical Machining Center CNC Lathe CK5225 Machine Tool Metal Cutting Vertical Lathe 1
