High Quality Heavy Duty Vertical Turret Lathe CNC Double Column Vertical Lathe

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE,ISO

Model Number: CK5235

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price
Highlight:
Max. Length Of Workpiece (mm):
2500
Max. Spindle Speed (r.p.m):
90 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
105
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
55
No. Of Spindles:
Twin
Number Of Axes:
2
Travel (X Axis)(mm):
1900 Mm
Travel (Z Axis)(mm):
1250 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Dimension(L*W*H):
6150*4400*5330mm
Voltage:
380V
CNC Control System:
GSK
Tool Post Stations:
4
Weight (KG):
55000
Product Name:
CNC Double Column Vertical Lathe Machine
Max.turning Diameter:
3500mm
Max. Height Of Wok Piece:
2000mm
Max. Length Of Workpiece (mm):
2500
Max. Spindle Speed (r.p.m):
90 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
105
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
55
No. Of Spindles:
Twin
Number Of Axes:
2
Travel (X Axis)(mm):
1900 Mm
Travel (Z Axis)(mm):
1250 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Dimension(L*W*H):
6150*4400*5330mm
Voltage:
380V
CNC Control System:
GSK
Tool Post Stations:
4
Weight (KG):
55000
Product Name:
CNC Double Column Vertical Lathe Machine
Max.turning Diameter:
3500mm
Max. Height Of Wok Piece:
2000mm
High Quality Heavy Duty Vertical Turret Lathe CNC Double Column Vertical Lathe

High Quality Heavy Duty Vertical Turret Lathe CNC Double Column Vertical Lathe



The double column vertical lathe is a cutting-edge piece of equipment that combines mechanical, electrical, and hydraulic components. It incorporates modern design principles and manufacturing techniques, leveraging CAD optimization and state-of-the-art components from both domestic and international sources. The machine boasts a robust structure, offering exceptional strength, high static and dynamic stiffness, precise machining capabilities, heavy load capacity, efficiency, durability, and reliable operation. All major technical specifications of the machine parts comply with national standards.



The machine consists of various components, including the worktable base, worktable, main transmission box, gantry frame, beam, ram tool rest, feeding box, electrical system, operation station, hydraulic system, and protection devices.



Gantry frame

It is composed of left and right vertical columns and connecting beam. Gantry and worktable base form the sealing structure. In the upper part of the gantry, there is left and right lifting box, driven by biaxial stretching AC motor. Through gear pair, worm and gear pair and double leadscrews make the beam to do lifting movement along the left and right column guide rail.

Beam

Beam adopts high strength and low stress iron casting with enough rigidity and strength, so as to ensure the machine accuracy to have long term retentivity and stability. Beam is in front of the vertical column, and it does the vertical movement along the vertical column guideway. On the back of beam, there are 4 hydraulic clamping points. On both sides of the beam, there are feeding box for tool rest.



Machine parameter

Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps   16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520



Product photos

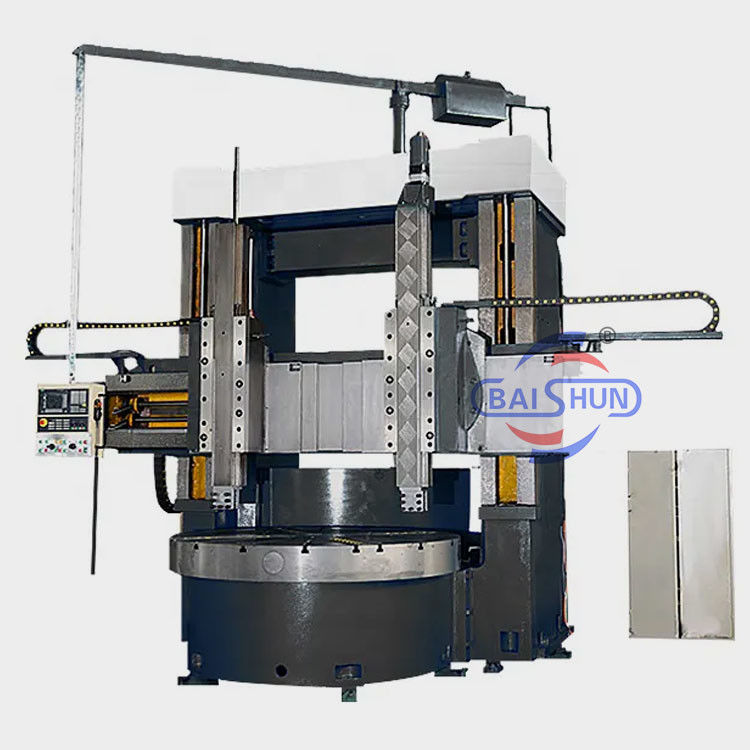

High Quality Heavy Duty Vertical Turret Lathe CNC Double Column Vertical Lathe 0High Quality Heavy Duty Vertical Turret Lathe CNC Double Column Vertical Lathe 1
