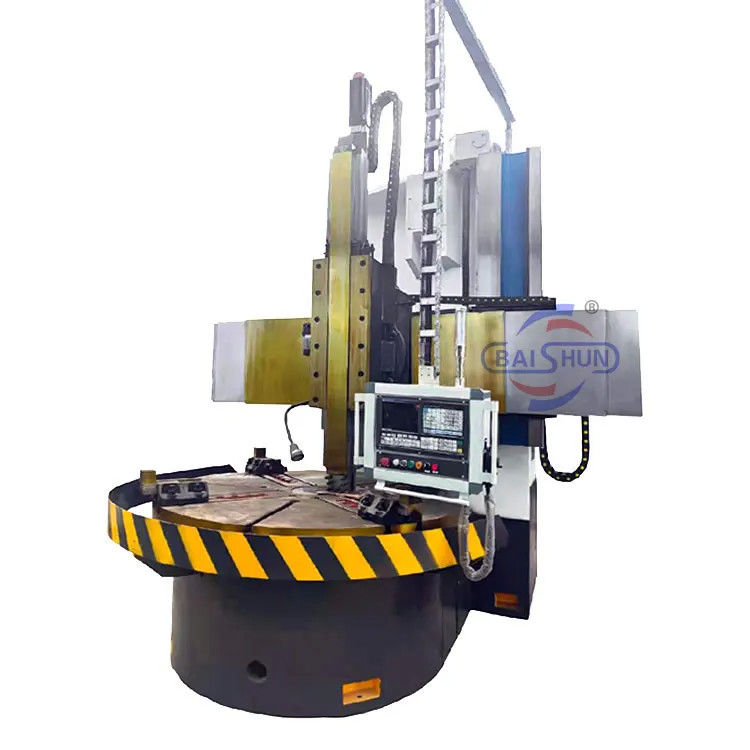

Lathe Machine Easy Operation Vertical Rim Repair Machine Lathe Machine Siemens

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: CE,ISO

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Set/Sets per Month

Get Best Price
Highlight:
Max. Length Of Workpiece (mm):
2000
Max. Spindle Speed (r.p.m):
200 R.p.m
Machining Capacity:
Medium Duty
Number Of Axes:
2
Travel (X Axis)(mm):
700 Mm
Dimension(L*W*H):
2350*2350*2700mm
Weight (KG):
8500
Product Name:
High Quality Yunnan Lathe Machine Vertical Rim Repair Machine
Max. Processing Diameter:
1200mm
Max. Height Work Piece:
2000mm
Max. Length Of Workpiece (mm):
2000
Max. Spindle Speed (r.p.m):
200 R.p.m
Machining Capacity:
Medium Duty
Number Of Axes:
2
Travel (X Axis)(mm):
700 Mm
Dimension(L*W*H):
2350*2350*2700mm
Weight (KG):
8500
Product Name:
High Quality Yunnan Lathe Machine Vertical Rim Repair Machine
Max. Processing Diameter:
1200mm
Max. Height Work Piece:
2000mm
Lathe Machine Easy Operation Vertical Rim Repair Machine Lathe Machine Siemens
Product Overview:
Our hot selling CNC Vertical Turning Lathe is perfect for processing ferrous metals, nonferrous metals, and some non-metallic materials. It can handle tasks such as turning end faces, inner and outer cylindrical surfaces, inner and outer circular conical surfaces, as well as hole drilling, expanding, and reaming. The main transmission is driven by an AC servo motor, and the machine offers hydraulic gear shifting and stepless speed regulation with two gears. The worktable is equipped with a manual 4-jaw single movement chuck for easy operation.


1.The overall layout
Machine tools mainly by the table, table base, column, beam, vertical knife frame composition. The machine tool base are used HT250 cast iron, the use of resin sand process, cast after the stew fire, rough processing after aging treatment (artificial aging and vibration aging). Casting quality and reliable without cracks, pores, shrinkage and white mouth tissue, castings by stew fire, aging treatment with a stable organization to ensure the use of the machine during the stability of the product quality certificate to provide molten iron chemical composition analysis report, heat treatment Report and heat treatment temperature time curve.



2.The main drive

Main drive main motor, through the gear box 16 gear speed for speed conversion. The gears in the box are quenched and ground to ensure transmission accuracy and efficiency and reduce noise and reduce vibration.



3.Workbench

The table consists of table, table base, spindle components and transmission mechanism, table and table base for the overall casting processing. The table guide surface is inlaid with an aluminum alloy guide plate and a pressure oil is injected between the guide rails to form a dynamic pressure rail. So the table carrying capacity, high precision rotation.



4.Beams

The beam moves up and down on the column. The beam consists of a knife feed drive mechanism, a beam clamping mechanism and a hydraulic device. Install a set of automatic lubricating oil pump on the beam, according to the need to lubricate the rail surface.



5.Vertical knife frame

Z-axis, Z-axis by the servo motor drive, through the planetary reducer to increase the torque, by the electromagnetic clutch switch control two axes and locked each other to achieve a variety of complex processing.



6.Hydraulic system

The hydraulic system includes: the table dynamic pressure system, the main drive transmission system, beam clamping and hydraulic system, vertical knife frame hydraulic balance system. Hydraulic system is essential, machine lubrication, dynamic pressure rail stability, to ensure the stability of the hydraulic system and interchangeability.

Machine parameter
Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30
Lathe Machine Easy Operation Vertical Rim Repair Machine Lathe Machine Siemens 0Lathe Machine Easy Operation Vertical Rim Repair Machine Lathe Machine Siemens 1
