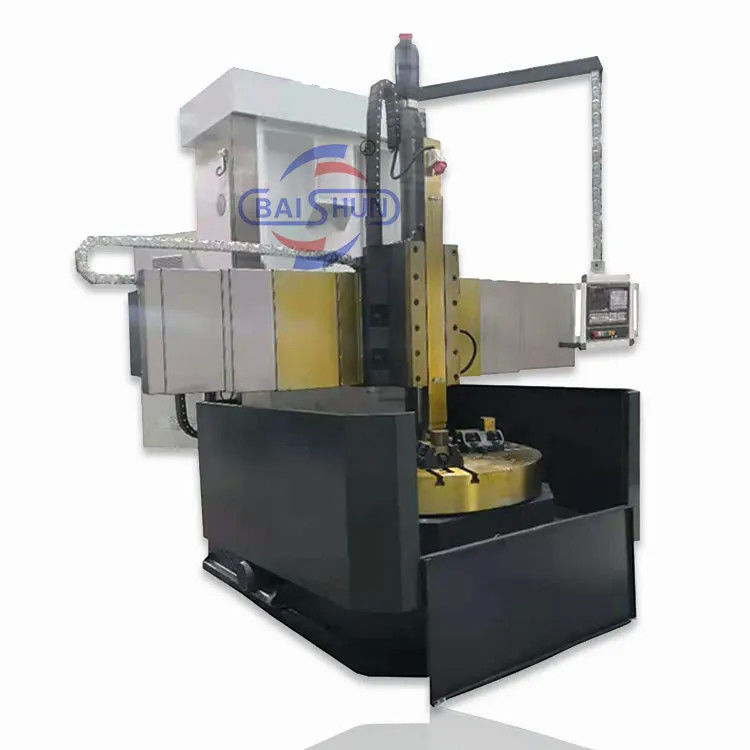

Small Cnc Vertical Lathe Machine Cnc Metal Lathe Automatic Mini Lathe Machine

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: CE,ISO

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Set/Sets per Month

Get Best Price
Highlight:
Max. Length Of Workpiece (mm):
2000
Max. Spindle Speed (r.p.m):
200 R.p.m
Machining Capacity:
Medium Duty
No. Of Spindles:
Single
Max. Turned Length (mm):
1200
Voltage:
380v
Product Name:
Small Cnc Vertical Lathe Machine From China Factory
Max. Processing Diameter:
1200mm
Max. Length Of Workpiece (mm):
2000
Max. Spindle Speed (r.p.m):
200 R.p.m
Machining Capacity:
Medium Duty
No. Of Spindles:
Single
Max. Turned Length (mm):
1200
Voltage:
380v
Product Name:
Small Cnc Vertical Lathe Machine From China Factory
Max. Processing Diameter:
1200mm
Small Cnc Vertical Lathe Machine Cnc Metal Lathe Automatic Mini Lathe Machine
Product Overview:

Our hot selling CNC Vertical Turning Lathe is perfect for processing ferrous metals, nonferrous metals, and some non-metallic materials. It can handle tasks such as turning end faces, inner and outer cylindrical surfaces, inner and outer circular conical surfaces, as well as hole drilling, expanding, and reaming. The main transmission is driven by an AC servo motor, and the machine offers hydraulic gear shifting and stepless speed regulation with two gears. The worktable is equipped with a manual 4-jaw single movement chuck for easy operation.



The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.

Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with animatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.

To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway.

* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.



Key Features:



1. Our CNC vertical lathe is equipped with the Siemens 828DD system, ensuring precise control. It features a vertical tool post, allowing for a maximum machining diameter of 1600mm, a table diameter of 1400mm, and a maximum machining height of 1000mm.

2. The transmission device adopts a four-speed continuous transmission, providing convenience, sensitivity, and reliability.

3. All gears in the system are made of 40Cr grinding gears, guaranteeing high rotation accuracy and minimal noise.

4. This machine is suitable for processing non-ferrous metals, black metals, and non-metallic materials using high-speed steel tools and carbide cutting tools. It can perform various operations, including turning inner and outer cylindrical surfaces, cutting different types of faces (such as hooks), inner and outer conical surfaces, threading, as well as slotting and cutting.

Machine parameter
Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30
