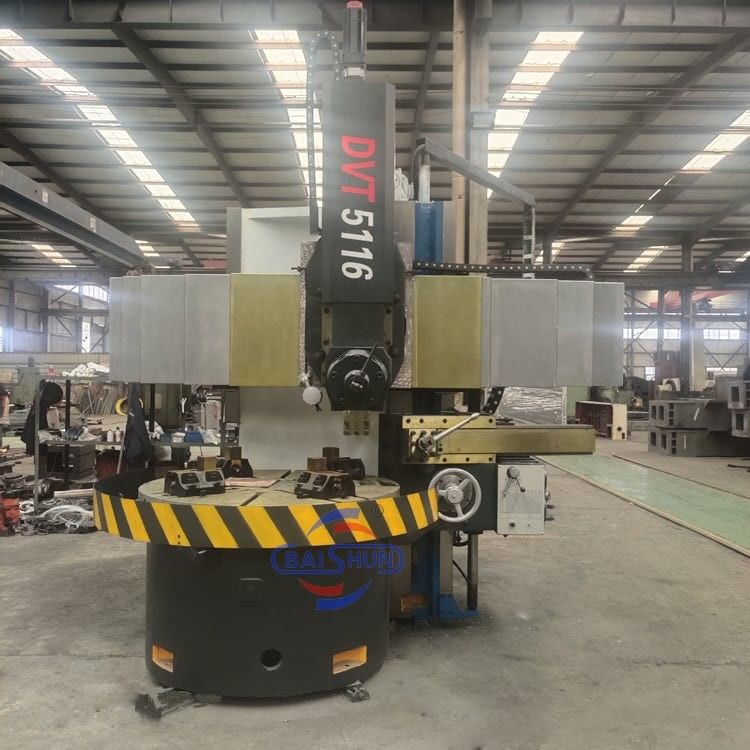

High Speed Lathe Machine Metal Turning Cnc Heavy Duty Machine VTL Vertical Lathe

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price
Highlight:
Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Number Of Axes:
2
Travel (X Axis)(mm):
800 Mm
Travel (Z Axis)(mm):
916 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.004
Dimension(L*W*H):
2660*2665 *3528mm
Voltage:
380V
CNC Control System:
GSK,SIEMENS, FANUC
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
12500
Product Name:
Metal Lathe Cnc Lathe Machine Mini Lathe
Max. Workpiece Weight::
5000kg
Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Number Of Axes:
2
Travel (X Axis)(mm):
800 Mm
Travel (Z Axis)(mm):
916 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.004
Dimension(L*W*H):
2660*2665 *3528mm
Voltage:
380V
CNC Control System:
GSK,SIEMENS, FANUC
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
12500
Product Name:
Metal Lathe Cnc Lathe Machine Mini Lathe
Max. Workpiece Weight::
5000kg
High Speed Lathe Machine Metal Turning Cnc Heavy Duty Machine VTL Vertical Lathe
Product Description

High Speed Lathe Machine Metal Turning Cnc Heavy Duty Machine VTL Vertical Lathe



Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing.

Workbench using hydro static guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision. Machine tool electric using domestic brand-name products, high reliability. Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance. High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.



Key Features:



The table utilizes a high precision thrust ball rolling guideway and a slide guideway with a diameter of 1.6 meters.

The column cross rail is made of high-strength and highly wear-resistant Grey cast iron.

The guideway pairs in both the horizontal and vertical directions are made of wear-resistant Grey cast iron.

The rail guideway surface of the ram and side head undergo middle frequency hardening and rolling grind finish machining.

The bottom station features a new type of black chromium plane.

The rail head is equipped with a lead screw for horizontal and vertical transmission.

The pentagonal turret pinion plate ensures high strength and rigidity in index positioning.

Cross lubrication is provided with oil through a hand pump.

Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30



Vertical Lathe MachineFeature:



The table adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.

The column cross rail adopt high strengthen and high wear-resistance Grey cast iron.

Fiction pairs of guideway in horizontal and vertical direction adopt wear-resistance grey cast iron.

Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.

Black chromium plane of new type for botton siation.

The rail head is designed with lead screw for horizontal and vertical transmission.

Pentagonal turret pinion plate index positioning with high strengthen and rigidity.

Lubrication of cross is supplied with oil by hand pump.
