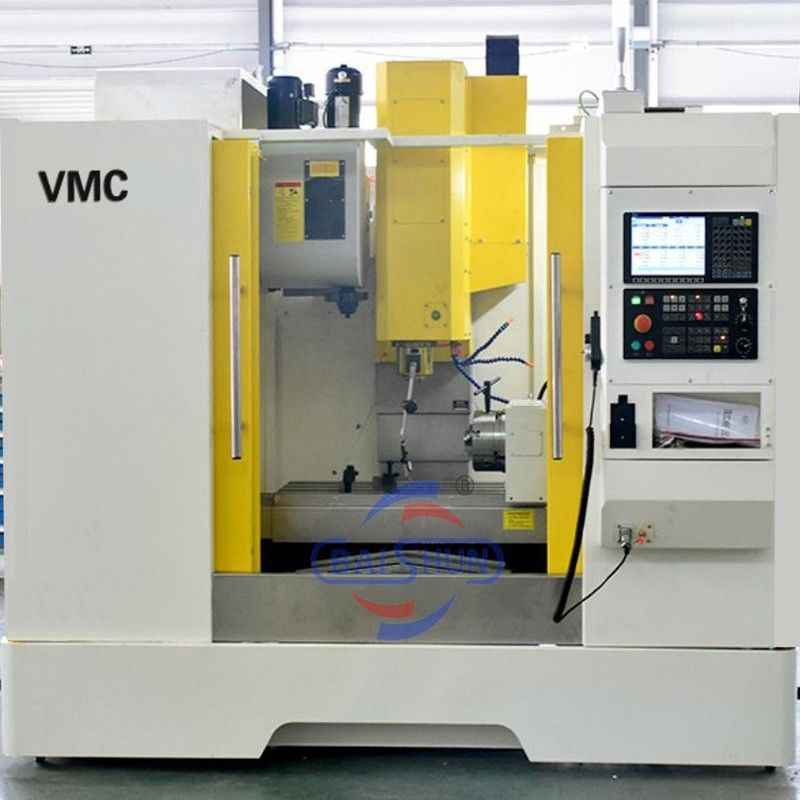

High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: VMC850

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case or as customers' requirement

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

Metal Milling CNC Vertical Machining Center

,

3 Axis CNC Vertical Machining Center

,

High Precision CNC Vertical Machining Center

Product Name:
Vertical Metal Milling Machining Center Lathe
X/Y/Z Travel (X) (mm):
800/500/600
Table Size (mm):
1050*500
Max. Table Load(kg):
300 Kg
Spindle Taper:
BT40
Keywords:
Vertical Milling Center
Usage:
Metal Turning And Milling
Machine Weight (T):
3 T
Max.speed Of Spindle:
8000r/min
Dimension(L*W*H):
2100*1950*2200mm
Product Name:
Vertical Metal Milling Machining Center Lathe
X/Y/Z Travel (X) (mm):
800/500/600
Table Size (mm):
1050*500
Max. Table Load(kg):
300 Kg
Spindle Taper:
BT40
Keywords:
Vertical Milling Center
Usage:
Metal Turning And Milling
Machine Weight (T):
3 T
Max.speed Of Spindle:
8000r/min
Dimension(L*W*H):
2100*1950*2200mm
High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe

High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe

Product Description



Vertical Milling Centers (VMC) are widely utilized in manufacturing sectors such as automotive, aerospace, and electronics, serving as crucial equipment for producing intricate precision parts. Their primary components, including the base, saddles, worktables, columns, and spindle housings, are all constructed from HT300 cast iron. The base features a box-type structure, complemented by a compact and rationally designed symmetrical rib structure, ensuring the high rigidity and bending resistance of the foundational elements. A-type bridge struts and internal grid-like ribs robustly guarantee the stiffness and precision of the Z-axis during heavy cutting. Furthermore, these fundamental parts are manufactured using resin sand casting and undergo aging treatment to assure the long-term stability of the machine tool's performance.

High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe 0

High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe 1

High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe 2

High Precision 3 Axis Vmc Cnc Vertical Metal Milling Machining Center Lathe 3



Machine Parameter



Model

VMC550

VMC650

VMC850

VMC1050

Table(mm)

800*350

900*400

1050*500

1050*560

Max.table load(kg)

300

450

600

600

X/Y/Z axis travel(mm)

550*350*500

650*400*500

800*500*600

1000*500*600

Diatance between spindle center and column guide surface(mm)

419

476

560

560

Diatance between spindle face and worktable face(mm)

100-600

100-600

140-740

140-740

X/Y/Z Max.feed speed(mm/min)

10000

10000

10000

10000

X/Y/Z Max.rapid traverse

20/20/15

24/24/20

20/20/15

20/20/15

Max.speed of spindle(r/min)

8000

8000

8000

8000

The spindle taper hole(type)

BT40

BT40

BT40

BT40

Spindle motor(kw)

3.7/5.5

5.5/7.5

7.5/11

7.5/11

X/Y/Z axis servo motor(kw)

1.0/1.0/1.5

1.0/1.0/1.5

1.0/1.0/2.0

1.0/1.0/2.0

X/Y/Z motor connection

Direct connection

X/Y/Z Guide way type

Linear guide

Two linear one hard guide

Linear guide

Linear guide

Worbench T slot(mm)

3-18*105

3-18*125

5-18*90

5-18*90

Repeat accuracy(mm)

±0.004

±0.004

±0.004

±0.004

Max.tool wight(kg)

7

7

8

8

Max.tool length(mm)

250/300

250/300

250/300

250/300

Electric capacity(kVA)

10

10

11

11

Weight (kg)

3000

4500

5700

6000

Dimension(L*W*Hmm)

2100*1950*2200

2300*2200*2400

2700*2400*2700

2920*2400*2700





Company Introduction

Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer,  which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.

Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.
