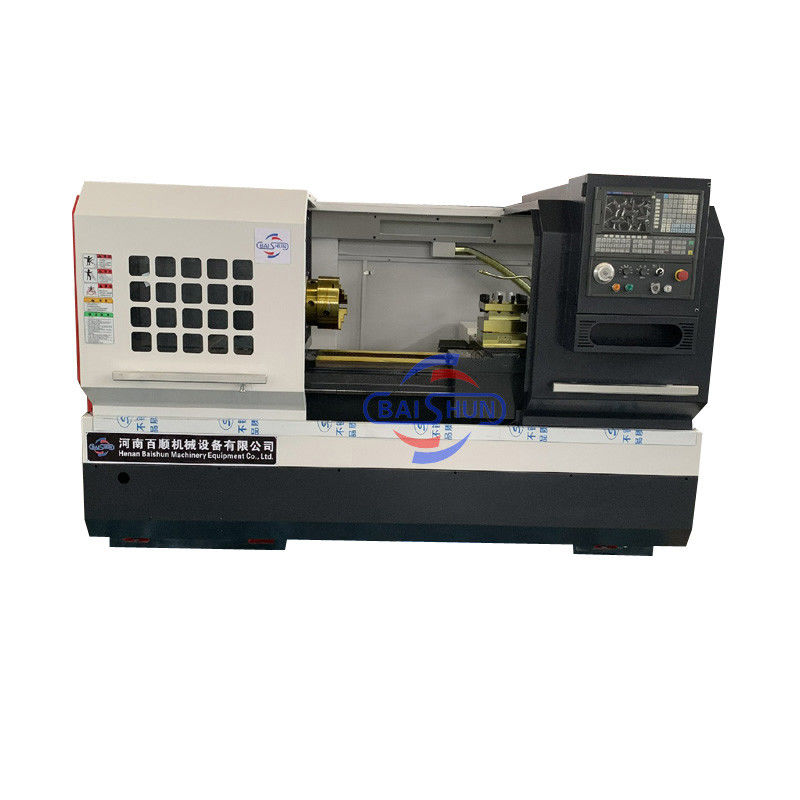

Flat Bed Cnc Horizontal Lathe Machine Automatic Metal Processing
High Precision Automatic Metal Processing Horizontal CNC Lathe Flat Bed CNC Lathe Machine Price
Product Introduction:
The CNC lathe is a machine tool that is used for shaping and turning metal workpieces. It use a variety of cutting tools, such as drills, boring tools, and turning tools, to remove material from the workpiece. The machine is programmed using software that specifies the size and shape of the workpiece, as well as the cutting operations to be performed..
Specification:
| Specification |
CK6140 |
CK6150 |
CK6161 |
CK6166 |
CK6180 |
| Max. swing over bed |
400mm |
500mm |
610mm |
660mm |
800mm |
| Max. workpiece length |
750/1000/1500/2000/3000mm |
| Spindle taper |
Mohs NO.6(MT6)[ Φ90 1:20(Type B)][ Φ113 1:20(Type C)] |
| Chuck size |
C6[D8(Type B/C)] |
| Spindle bore dia. |
Φ52mm/[Φ80mm(Type B)][Φ105mm(Type C)] |
| Range of spindle speeds 3 steps(Auto. Change gear) |
Independent spindle:100~1600r/min
21-1500r/min(Ⅰ62-1500 Ⅱ66-500 Ⅲ21-150) |
| Tail stock center travel |
150mm |
| Tail stock sleeve taper |
MT5 |
| Positioning accuracy |
±0.015mm |
| Repositioning accuracy |
±0.006mm |
| X/Z rapid traverse |
4/6m/min |
| Spindle motor |
7.5kw |
11kw |
| Overall dimensions for750 |
2550*1550*1700 |
2550*1550*1900 |
| Overall dimensions for1000 |
2750*1550*1700 |
2750*1550*1900 |
| Overall dimensions for1500 |
3250*1550*1700 |
3250*1550*1900 |
| Overall dimensions for2000 |
3700*1550*1700 |
3700*1550*1900 |
| Overall dimensions for3000 |
4710*1550*1700 |
4710*1550*1900 |
| Length |
G.W. |
G.W. |
G.W. |
G.W. |
G.W. |
| Overall dimensions for750 |
2800 |
2900 |
2850
|
2900
|
3000 |
| Overall dimensions for1000 |
2900 |
3000 |
3000
|
3050 |
3150 |
| Overall dimensions for1500 |
3150 |
3200 |
3200
|
3250 |
3350 |
| Overall dimensions for2000 |
3350 |
3400 |
3400
|
3450 |
3550 |
| Overall dimensions for3000 |
4100 |
4200
|
4250
|
4300 |
4400 |
Paking&Delivery:
Customs' feed back:
Our services& advantage:
Our Services
We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers' costs in all aspects.
Our advantage:
1: With CE, ISO certification.
2: Full production tracking.
3: Professional engineers can guarantee the highest quality.
4: More suppliers as alternatives, guarantee your lowest and competitive price.
5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.
6: OEM production is available, to meet customer needs
7. Low MOQ (1 unit) is available.
8. 24 hours technical support.
Warranty period:
During warranty period (one year), if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact us, we will supply our best service to you as usual.
1. Technical support online service provided .
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 24 hours
