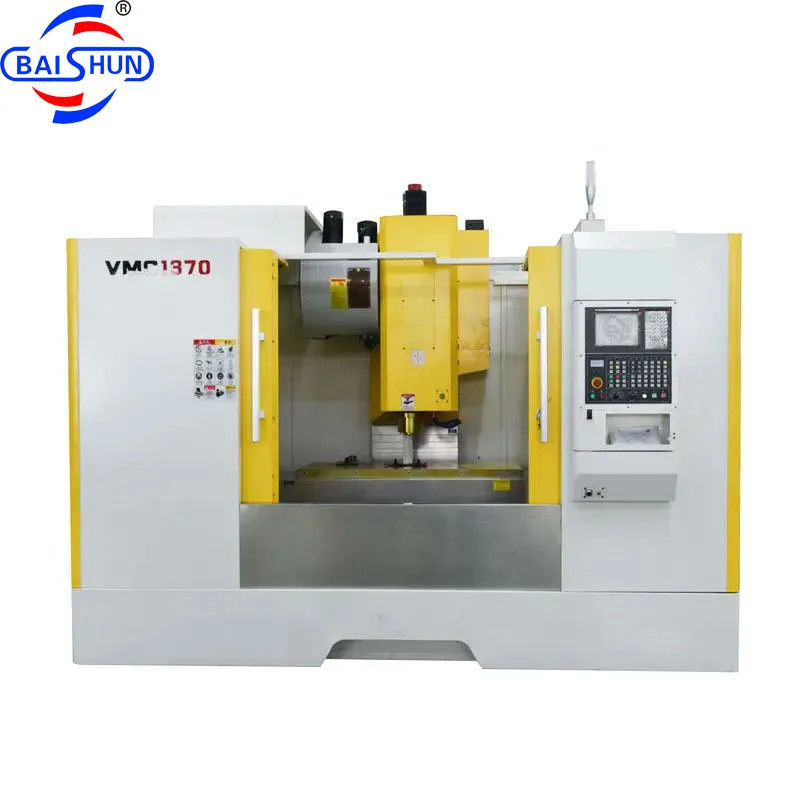

Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno
Vmc 1580 3 Axis Vertical Machining Center Torno

Vmc 1580 3 Axis Vertical Machining Center Torno

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: VMC1580

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case or as customers' requirement

Delivery Time: 45 work days

Payment Terms: L/C, Western Union, T/T

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

vmc 1580

,

3 axis vertical machining center

,

3 axis vmc machine

Condition:
New
Spindle Taper:
BT40
No. Of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
4260*3545*3200mm
Weight (T):
12 T
Table Size (mm):
1700*800
CNC Control System:
GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes:
3, 4, 5
Table Travel (X) (mm):
1500
Table Travel (Y) (mm):
800
Table Travel (Z) (mm):
700
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.004
Range Of Spindle Speed(r.p.m):
1 - 10000 R.p.m
Spindle Motor Power(kW):
11
Max. Table Load(kg):
1500 Kg
Feed Speed(mm/min):
1 - 10000 Mm/min
Rapid Feed Speed(m/min):
10
Min. Time Of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
Competitive Price
Warranty:
1 Year
Voltage:
380V
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Construction Works
Showroom Location:
Italy, Viet Nam, Brazil, Peru, Indonesia, Mexico, Russia, Sri Lanka, Ukraine
Marketing Type:
Hot Product 2023
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Product Name:
Cnc 3axis Mini Vmc Machining Center Machine
Model:
VMC1580
Worktable Size:
1700*800mm
Max.speed Of Spindle:
10000r/min
Tool Magazine:
24
CNC Controller:
Fanuc Siemens KND GSK
Guide Way Type:
Two Linear One Hard Guide
Keywords:
3axis Mini Vmc Machining Center
Usage:
Cnc Vmc Machining Center
Color:
Yellow, White, Brown
Port:
Qingdao Port. China. Or As Customer's Requirement
Condition:
New
Spindle Taper:
BT40
No. Of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
4260*3545*3200mm
Weight (T):
12 T
Table Size (mm):
1700*800
CNC Control System:
GSK, FANUC, MITSUBISHI, KND, Siemens
Number Of Axes:
3, 4, 5
Table Travel (X) (mm):
1500
Table Travel (Y) (mm):
800
Table Travel (Z) (mm):
700
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.004
Range Of Spindle Speed(r.p.m):
1 - 10000 R.p.m
Spindle Motor Power(kW):
11
Max. Table Load(kg):
1500 Kg
Feed Speed(mm/min):
1 - 10000 Mm/min
Rapid Feed Speed(m/min):
10
Min. Time Of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
Competitive Price
Warranty:
1 Year
Voltage:
380V
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Construction Works
Showroom Location:
Italy, Viet Nam, Brazil, Peru, Indonesia, Mexico, Russia, Sri Lanka, Ukraine
Marketing Type:
Hot Product 2023
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Product Name:
Cnc 3axis Mini Vmc Machining Center Machine
Model:
VMC1580
Worktable Size:
1700*800mm
Max.speed Of Spindle:
10000r/min
Tool Magazine:
24
CNC Controller:
Fanuc Siemens KND GSK
Guide Way Type:
Two Linear One Hard Guide
Keywords:
3axis Mini Vmc Machining Center
Usage:
Cnc Vmc Machining Center
Color:
Yellow, White, Brown
Port:
Qingdao Port. China. Or As Customer's Requirement
Vmc 1580 3 Axis Vertical Machining Center Torno
Product Description



Cnc Lathe Torno 3axis Vmc cNC Vertical Machining Center Machine Sale In South Africa



VMC Vertical machining center is a specialized type of milling machine commonly employed in industries such as automotive, aerospace, and electronics. It is primarily utilized for the production of intricate parts with complex geometries, utilizing a computer-controlled cutting tool that rotates and moves along multiple axes.



Vmc 1580 3 Axis Vertical Machining Center Torno 0Vmc 1580 3 Axis Vertical Machining Center Torno 1Vmc 1580 3 Axis Vertical Machining Center Torno 2Vmc 1580 3 Axis Vertical Machining Center Torno 3Vmc 1580 3 Axis Vertical Machining Center Torno 4Vmc 1580 3 Axis Vertical Machining Center Torno 5Vmc 1580 3 Axis Vertical Machining Center Torno 6



Machine Parameter



Model

VMC550

VMC650

VMC850

VMC1050

Table(mm)

800*350

900*400

1050*500

1050*560

Max.table load(kg)

300

450

600

600

X/Y/Z axis travel(mm)

550*350*500

650*400*500

800*500*600

1000*500*600

Diatance between spindle center and column guide surface(mm)

419

476

560

560

Diatance between spindle face and worktable face(mm)

100-600

100-600

140-740

140-740

X/Y/Z Max.feed speed(mm/min)

10000

10000

10000

10000

X/Y/Z Max.rapid traverse

20/20/15

24/24/20

20/20/15

20/20/15

Max.speed of spindle(r/min)

8000

8000

8000

8000

The spindle taper hole(type)

BT40

BT40

BT40

BT40

Spindle motor(kw)

3.7/5.5

5.5/7.5

7.5/11

7.5/11

X/Y/Z axis servo motor(kw)

1.0/1.0/1.5

1.0/1.0/1.5

1.0/1.0/2.0

1.0/1.0/2.0

X/Y/Z motor connection

Direct connection

X/Y/Z Guide way type

Linear guide

Two linear one hard guide

Linear guide

Linear guide

Worbench T slot(mm)

3-18*105

3-18*125

5-18*90

5-18*90

Repeat accuracy(mm)

±0.004

±0.004

±0.004

±0.004

Max.tool wight(kg)

7

7

8

8

Max.tool length(mm)

250/300

250/300

250/300

250/300

Electric capacity(kVA)

10

10

11

11

Weight (kg)

3000

4500

5700

6000

Dimension(L*W*Hmm)

2100*1950*2200

2300*2200*2400

2700*2400*2700

2920*2400*2700





Company Introduction

Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer,  which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.

Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.



Vmc 1580 3 Axis Vertical Machining Center Torno 7



Vmc 1580 3 Axis Vertical Machining Center Torno 8Vmc 1580 3 Axis Vertical Machining Center Torno 9

Related Products

Vmc 1580 3 Axis Vertical Machining Center Torno 10



Our Services

Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.



Warranty period:
During warranty period (one year), if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact us, we will supply our best service to you as usual.
1. Technical support online service provided .
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 24 hours



Contact

Welcome to contact!!

Vmc 1580 3 Axis Vertical Machining Center Torno 11

Tags:

vmc 1160 cnc,

vmc vertical machining center,

vertical machining center vmc

Similar Products
Vmc 1580 3 Axis Vertical Machining Center Torno Video

Vmc 1580 3 Axis Vertical Machining Center Torno

Get Best Price
4 Axis Cnc Vertical Machining Center VMC 855 Automatic Taiwan Liner Guidway Video

4 Axis Cnc Vertical Machining Center VMC 855 Automatic Taiwan Liner Guidway

Get Best Price
VMC1160 Cnc Vertical Machining Center 5 Axis Machining Tool Metal Lathe Video

VMC1160 Cnc Vertical Machining Center 5 Axis Machining Tool Metal Lathe

Get Best Price
VMC 1160 CNC Vertical Machining Center vmc High Speed Vertical Milling Machine Video

VMC 1160 CNC Vertical Machining Center vmc High Speed Vertical Milling Machine

Get Best Price
VMC 855 CNC Vertical Machine Center 5 Axis Metal Turning Vmc Milling Machine Lathe Video

VMC 855 CNC Vertical Machine Center 5 Axis Metal Turning Vmc Milling Machine Lathe

Get Best Price
Vmc650 CNC Vertical Machining Center Metal Cutting Torno Vmc Lathe Milling Video

Vmc650 CNC Vertical Machining Center Metal Cutting Torno Vmc Lathe Milling

Get Best Price
Milling CNC Vertical Machining Center 5 Axis Vmc855 Automatic Video

Milling CNC Vertical Machining Center 5 Axis Vmc855 Automatic

Get Best Price
5 Axis Cnc Heavy Duty Vertical Milling Machine VMC Mineral Casting Material Video

5 Axis Cnc Heavy Duty Vertical Milling Machine VMC Mineral Casting Material

Get Best Price
Vertical Milling Center Machine Sheet Metal Cutting Machining Center Video

Vertical Milling Center Machine Sheet Metal Cutting Machining Center

Get Best Price
3 Axis Vertical Machining Center Vmc Cnc Brass Metal Turning Video

3 Axis Vertical Machining Center Vmc Cnc Brass Metal Turning

Get Best Price
Torno Cnc Vertical Machine Center Aluminium Profile Cnc Fanuc Drilling Milling Machine Video

Torno Cnc Vertical Machine Center Aluminium Profile Cnc Fanuc Drilling Milling Machine

Get Best Price
Henan Baishun Machinery Equipment Co., Ltd.
products

Vertical Turning Lathe Machine

CNC Vertical Lathe Machine

Horizontal Lathe Machine

Face Lathe Machine

Flat Bed CNC Lathe Machine

CNC Horizontal Boring And Milling Machine

Roll Turning Lathe Machine

sale@goodlathe.com 86-18939515188
No.65, Tianming Road, Jinshui District, Zhengzhou City, Henan Province, China
Quick links
Company Profile Factory Tour Quality Control news Cases Sitemap Privacy Policy
China Good Quality Vertical Turning Lathe Machine Supplier. Copyright © 2023-2025 lathemach.com . All Rights Reserved.
