C5125 Metal Cnc Vertical Turret Lathe Single Column Metal Processing

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5125

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 30 Set/Sets per Month

Get Best Price
Highlight:

C5125

,

vertical metal lathes

,

cnc vertical turret lathe

Name:
Metal Processing Vertical Lathe Machine
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
2500 Mm
Type:
VERTICAL
Spindle Motor Power(kW):
30
Dimension(L*W*H):
3300*4000 *3500mm
Weight (KG):
23000 KG
Warranty:
1 Year
Application:
Metal Processing
Name:
Metal Processing Vertical Lathe Machine
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
2500 Mm
Type:
VERTICAL
Spindle Motor Power(kW):
30
Dimension(L*W*H):
3300*4000 *3500mm
Weight (KG):
23000 KG
Warranty:
1 Year
Application:
Metal Processing
C5125 Metal Cnc Vertical Turret Lathe Single Column Metal Processing

Customized Color C5125 Single Column Metal Processing Vertical Lathe Machine



The vertical lathe machine is designed for turning both inside and outside cylinders and planes, corn surfaces, and grooving. It is suitable for high-speed steel tools working on ferrous metals, nonferrous metals, and some non-metallic materials.



Features:

1.This versatile machine is suitable for mechanical processing across various industries. 2. The main transmission is driven by an AC motor, with a main drive speed that can be changed in 16 steps through solenoid valve control.

2. All gears in the gearbox undergo high-frequency quenching for enhanced durability.

3. The worktable features a rolling guideway design, allowing for large loading capacity and high turning precision.

4. The vertical tool-post is equipped with a five-station tool-post and utilizes high-precision rat-gear disk positioning.

5.The tool-posts employ hydraulic balancing, with horizontal and vertical feeds using sliding screw drives.

6. The hydraulic system is equipped with German traffic transmission devices to ensure stable oil flow for the worktable lubrication.

7. The machine is controlled by a PLC system for high reliability, with electrical wiring tailored to the specific process requirements.

8. The machine boasts an attractive design, ensuring user comfort and convenient operation and maintenance.

9. Customization options include a digital display(DRO) device square ram upon customer request, providing additional flexibility to meet specific needs.

10. It mainly can be used for rough and finish machining of inside and outside cylinders, cone surfaces, end faces, grooving, cutting, and internal hole boring.



Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Specification:

Model C518 C5112 C5116 C5120 C5125
Max.turning dia.(mm) 800 1200 1600 2000 2500
Max.cutting height(mm) 800 1000 1000 1250 1250
Max.loading weight(tons) 1.2 3.2 5 8 10
Worktable diameter(mm) 720 1000 1400 1800 2250
Worktable speed range(r/min) 30-260 6.3-200 5-160 3.2-100 2-63
Max worktable torque(n.m) 1000 25000 32000 32000 35000
vertical travel of vertical tool post(mm) 650 650 800 800 1200
horizontal travel of vertical post(mm) 570 700 915 1200 1400
G.W(tons) 5 8 12.4 17 23
Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

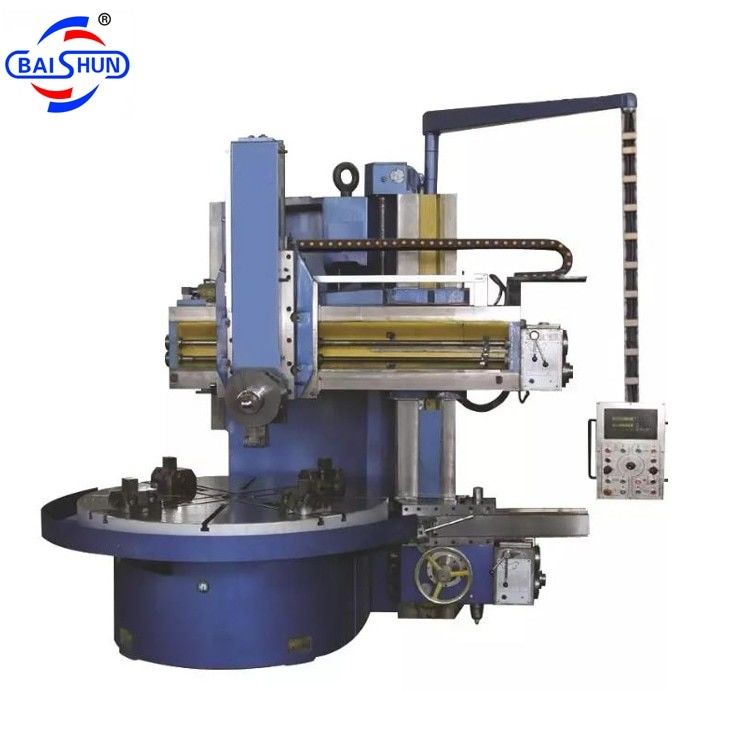

Machine picture:

C5125 Metal Cnc Vertical Turret Lathe Single Column Metal Processing 0

C5125 Metal Cnc Vertical Turret Lathe Single Column Metal Processing 1C5125 Metal Cnc Vertical Turret Lathe Single Column Metal Processing 2
