Vtl Vertical Turret Lathe Machine Heavy Duty Manual DRO Display Single Column

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 35 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 30 Set/Sets per Month

Get Best Price
Highlight:

vertical turret lathe machine

,

vtl vertical turret lathe

,

vertical turret lathe

Name:
Vertical Lathe Machine With Single Column
Type:
Vertical
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1600 Mm
Spindle Motor Power(kW):
15
Work Table Dia.:
1400mm
Dimension(L*W*H):
2830*2670 *3010mm
Weight (KG):
12400 KG
Warranty:
1 Year
Name:
Vertical Lathe Machine With Single Column
Type:
Vertical
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1600 Mm
Spindle Motor Power(kW):
15
Work Table Dia.:
1400mm
Dimension(L*W*H):
2830*2670 *3010mm
Weight (KG):
12400 KG
Warranty:
1 Year
Vtl Vertical Turret Lathe Machine Heavy Duty Manual DRO Display Single Column

Heavy Duty Manual DRO Display Vertical Lathe Machine With Single Column



Description:

The vertical lathe machine is designed for turning both inside and outside cylinders and planes, corn surfaces, and grooving. It is suitable for high-speed steel tools working on ferrous metals, nonferrous metals, and some non-metallic materials.

The main components of the equipment are made using a whole casting structure with high-strength, low-stress cast iron material. After casting, it undergoes annealing and aging treatment after rough machining. The column guide rail is ground to ensure precision, while the beam guide and ram guide undergo grinding after intermediate frequency quenching.

The vertical lathes are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts.

This manual DRO display vertical lathe machine is designed with a vertical spindle that holds and rotates the workpiece. The cutting tool is mounted on a tool turret that moves in multiple axes, allowing for precise and complex machining operations.

Generally it can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.



Features:

1.This versatile machine is suitable for mechanical processing across various industries.

2.The main transmission is driven by an AC motor, with a main drive speed that can be changed in 16 steps through solenoid valve control.

3.All gears in the gearbox undergo high-frequency quenching for enhanced durability.

4. The machine boasts an attractive design, ensuring user comfort and convenient operation and maintenance.

5. Customization options include a digital display(DRO) device square ram upon customer request, providing additional flexibility to meet specific needs.

6. It mainly can be used for rough and finish machining of inside and outside cylinders, cone surfaces, end faces, grooving, cutting, and internal hole boring.



Specification:



C51 series

Model C518 C5112 C5116 C5120 C5125
Max.turning dia.(mm) 800 1200 1600 2000 2500
Max.cutting height(mm) 800 1000 1000 1250 1250
Max.loading weight(tons) 1.2 3.2 5 8 10
Worktable diameter(mm) 720 1000 1400 1800 2250
Worktable speed range(r/min) 30-260 6.3-200 5-160 3.2-100 2-63
Max worktable torque(n.m) 1000 25000 32000 32000 35000
vertical travel of vertical tool post(mm) 650 650 800 800 1200
horizontal travel of vertical post(mm) 570 700 915 1200 1400
G.W(tons) 5 8 12.4 17 23
Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

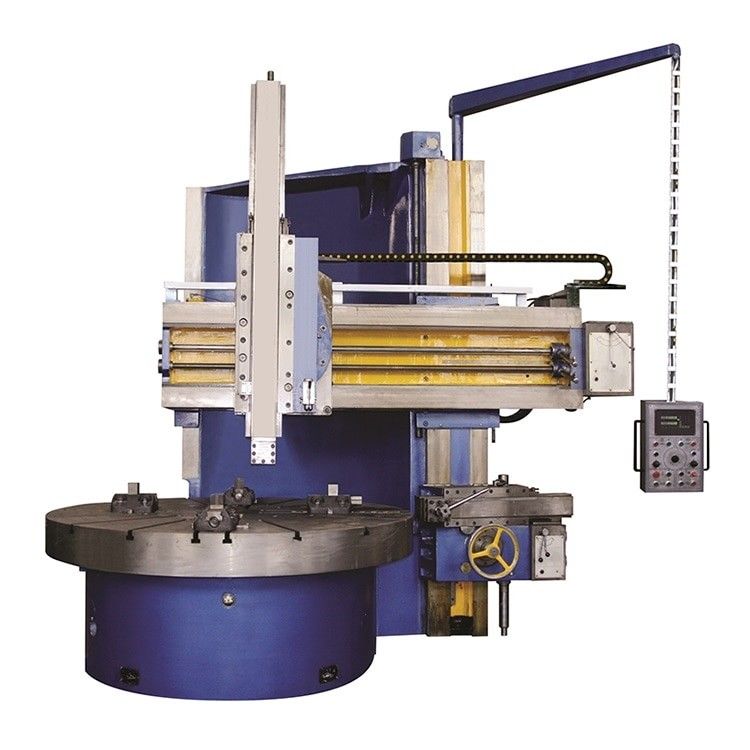

Machine picture:
