VTL Lathe Vertical Turning Lathe Machine Heavy Duty For Metal Cutting C5225

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5225

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 30 Set/Sets per Month

Get Best Price
Highlight:

vtl lathe

,

vertical turning lathe machine

,

vertical turning lathe

Name:
Vertical Lathe Machine For Metal Cutting Turning
Machining Capacity:
Heavy Duty
Max. Turned Length (mm):
2500 Mm
Spindle Motor Power(kW):
30
Voltage:
380V
Dimension(L*W*H):
3700*5650 *3950mm
Weight (KG):
33000 KG
Warranty:
1 Year
Machinery Test Report:
Provided
Brand:
BAISHUN MACHINERY
Name:
Vertical Lathe Machine For Metal Cutting Turning
Machining Capacity:
Heavy Duty
Max. Turned Length (mm):
2500 Mm
Spindle Motor Power(kW):
30
Voltage:
380V
Dimension(L*W*H):
3700*5650 *3950mm
Weight (KG):
33000 KG
Warranty:
1 Year
Machinery Test Report:
Provided
Brand:
BAISHUN MACHINERY
VTL Lathe Vertical Turning Lathe Machine Heavy Duty For Metal Cutting C5225

C5225 VTL Heavy Duty Vertical Lathe Machine For Metal Cutting Turning



Description:

The vertical lathe machine is designed for turning both inside and outside cylinders and planes, corn surfaces, and grooving. It is suitable for high-speed steel tools working on ferrous metals, nonferrous metals, and some non-metallic materials.

The main components of the equipment are made using a whole casting structure with high-strength, low-stress cast iron material. After casting, it undergoes annealing and aging treatment after rough machining. The column guide rail is ground to ensure precision, while the beam guide and ram guide undergo grinding after intermediate frequency quenching.

Generally it can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.



1.All gears in the gearbox undergo high-frequency quenching for enhanced durability.

2. The worktable features a rolling guideway design, allowing for large loading capacity and high turning precision.

3. The vertical tool-post is equipped with a five-station tool-post and utilizes high-precision rat-gear disk positioning.

4.The tool-posts employ hydraulic balancing, with horizontal and vertical feeds using sliding screw drives.

5. The hydraulic system is equipped with German traffic transmission devices to ensure stable oil flow for the worktable lubrication.

6. The machine is controlled by a PLC system for high reliability, with electrical wiring tailored to the specific process requirements.

7. The machine boasts an attractive design, ensuring user comfort and convenient operation and maintenance.



Specification



Model

C5225

C5232

C5235

C5240

C5250

C5260

Work table diameter

2250 mm

2830mm

2830mm

3150mm

4500mm

5200mm

Max. turning diameter

2500mm

3200mm

3200mm

4000mm

5000mm

6000mm

Max. height of work piece(mm)

1600-2800

1600-3000

1600-3000

1600-3200

2500-4200

2500-4500

Max. weight of work piece

10/20

10/20/32

10/20/32

10/20/32

32/50

32/50

Max. torque of worktable

63000 N•m

63000 N•m

63000 N•m

63000 N•m

105000N•m

105000N•m

Rest feeding range

0.25-90 mm/min

0.25-90 mm/min

0.25-90 mm/min

0.25-90 mm/min

0.1-1000
mm/min

0.1-000 mm/min

Beam travel

1250mm

1250mm

1250mm

1250mm

2150mm

2150mm

Horizontal Travel of tool rest

1400mm

1750mm

1900mm

2150mm

2700mm

3300mm

Vertical Travel of tool rest

1000/1250/

1400/1600

1000/1250/

1400/1600

1000/1250/

1400/1600

1000/1250/

1400/1600

1400/1600

1400/1600

Beam moving speed(mm/min)

350

350

350

350

380

380

Max. Swing angle of tool post

±30°

±30°

±30°

±30°

±30°

±30°

Turret dimension(WxHmm)

40x50

40x50

40x50

40x50

60x65

60x65

Main motor power

55kw

55kw

55kw

55/75kw

75kw

75kw

Machine Weight(around)

33-38T

36-50T

38-62T

43-65T

92-105T

150-200T

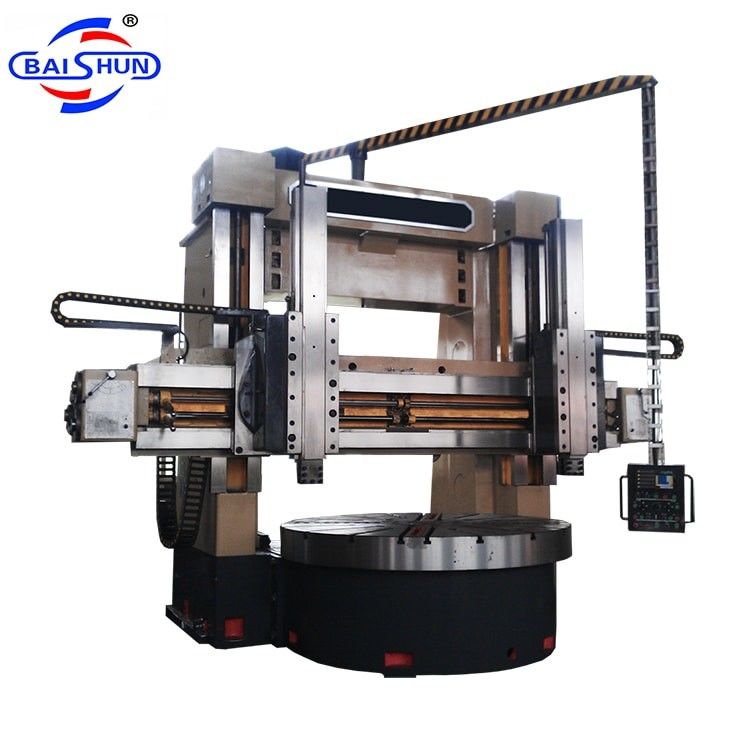

Machine photo
