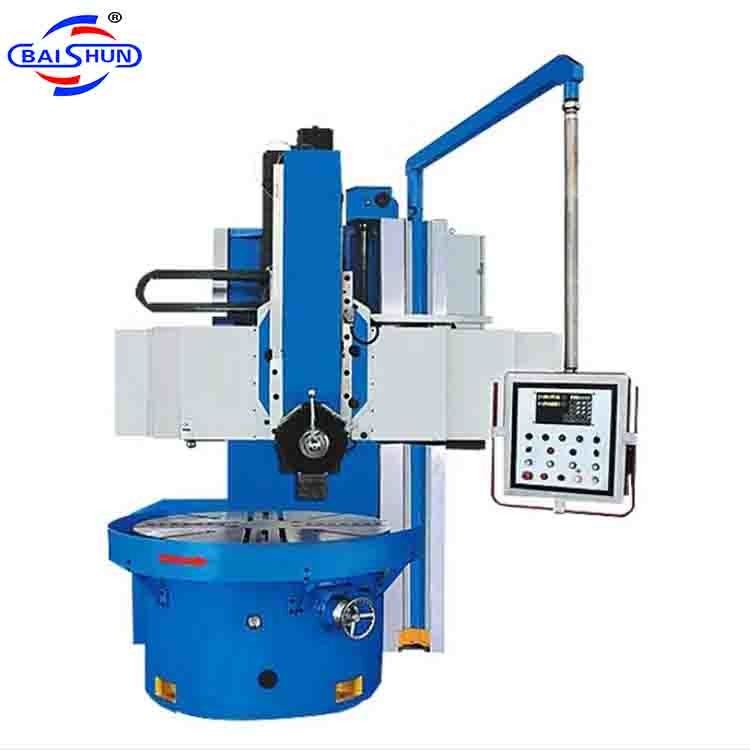

Medium Duty VTL Vertical Lathe Machine Cnc Metal Turning Conventional

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: C5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 35 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

vertical lathe machine cnc

,

cnc vtl

,

vertical lathe cnc

Production Name:
Conventional Vertical Lathe Machine
Max. Length Of Workpiece (mm):
1200
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1200 Mm
Type:
VERTICAL
Spindle Motor Power(kW):
22
Dimension(L*W*H):
2360*2280 *2800mm
Weight (KG):
8000 KG
Warranty:
1 Year
Display:
DRO Display
Production Name:
Conventional Vertical Lathe Machine
Max. Length Of Workpiece (mm):
1200
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1200 Mm
Type:
VERTICAL
Spindle Motor Power(kW):
22
Dimension(L*W*H):
2360*2280 *2800mm
Weight (KG):
8000 KG
Warranty:
1 Year
Display:
DRO Display
Medium Duty VTL Vertical Lathe Machine Cnc Metal Turning Conventional

Medium Duty VTL Vertical Metal Turning Conventional Vertical Lathe Machine



The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.

Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.



This machine series is suitable for machining parts in all industries. It can perform cylindrical turning, boring, tapering, surfacing, and grooving, both rough and finishing operations.The table uses a high-precision thrust ball bearing for the rolling guideway, while the C5116 machine adopts a slipping guideway. The spindle radial is equipped with NN30 type double row cylindrical rolling bearings, which improve the rotary precision and load capacity of the table.The rail head is equipped with a pentagonal turret, and the side head has a square turret design.

Both heads are hydraulically balanced. The rail head of the C518-C5112 machine uses rolling lead screw bearings for horizontal and vertical movement transmission.The machine's electrical equipment is controlled by a PC, ensuring high reliability.The machine's overall dimensions are aesthetically pleasing and user-friendly. It is easy to maintain and service. On special request, additional attachments such as a side head, digital control, and turning taper can be provided.

   Machine specification:



Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500
