C5116 Cnc Vertical Borer Conventional Vertical Turning Lathe Machine High Rigidity

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: Provided

Model Number: C5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

C5116

,

cnc vertical borer

,

C5116 Cnc Vertical Borer

Product Name:
High Rigidity Vertical Lathe Machine
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Max. Turned Length (mm):
1600 Mm
Work Table Dia.:
1400mm
Type:
VERTICAL
Spindle Motor Power(kW):
30
Dimension(L*W*H):
2830*2670 *3010mm
Weight (KG):
12400 KG
Warranty:
1 Year
Product Name:
High Rigidity Vertical Lathe Machine
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Max. Turned Length (mm):
1600 Mm
Work Table Dia.:
1400mm
Type:
VERTICAL
Spindle Motor Power(kW):
30
Dimension(L*W*H):
2830*2670 *3010mm
Weight (KG):
12400 KG
Warranty:
1 Year
C5116 Cnc Vertical Borer Conventional Vertical Turning Lathe Machine High Rigidity

C5116 Conventional Vertical Type High Rigidity Vertical Lathe Machine



The C5116 model of our single-column lathe is a highly rigid machine with large machining capacities, a stable and sturdy structure, and efficient performance. It comes with a vertical tool head and can be equipped with a high precision digital readout system (DRO).
An AC inverter motor is used for speed adjustment.
The gears, made from 40 Cr steel, are precision ground to ensure high accuracy and reduce machine noise. These machines are specifically designed and built to handle modern machining requirements, including high-speed cutting tools and carbide cutters, for workpieces made of ferrous and non-ferrous metals, composites, and other materials.

Vertical Lathe Machine Main Structure:



1. Machine tool: The main components of the machine tool (lathe bed, base, workbench, beam, vertical slide rest, side tool box, feed box, main drive gear box) are made of strong cast iron using resin sand technology.

2. Main drive: The workbench rotation is powered by the main electric motor, with a gear reduction and an electromagnetic speed control system for adjusting the speed.

3. Vertical slide and feed mechanism of the vertical slide: The RAM is made of HT250 material, known for its excellent mechanical properties.

4. Workbench base structure: The workbench adopts a long spindle structure, supported by high-precision double row cylindrical roller bearings for radial alignment.

5. Beam: The beam is secured and released using a drift, with hydraulic pressure for clamping.

6. Hydraulic system: The hydraulic system uses reliable control components from renowned manufacturers, both domestic and international.

7. Lubrication of the machine tool: The machine tool automatically provides oil at specified intervals to lubricate the beam and moving parts.

8. Machine tool protection: The machine tool's moving parts are equipped with a comprehensive security chain and interlock system.

9. Electrical control system:

a) Power source: Three-phase current of 380V±10%, 50Hz.

b) The electrical design of the machine tool follows international design standards.



DESCRIPTION:
This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring. Tapering and surfacing as well as grooving can be carried out rough and finishing.
The table adopts thrust ball bearing with high accuracy for rolling guideway C5116 machine is also adopted slipping guideway. Spindle radial is performed NN30 type double row cylindrical rolling bearing. So it can improve the rotary precision and load capacity of
The table.
The rail head equipped with pentagonal turret, and the side heed is designed with square turret.
The two heads are all adopted the hydraulic balance.
The rail head C518-C5112 machine is adopted rolling lead screw bearing for transmission in horizontal and vertical movement.
The electrical equipment of machine is controlled by PC. So it is high reliability.
Overall dimensions of machine is beautiful and it is delightful for people to use. It is easily for maintenance and service.
The attachment of side head, digital control and turning taper can provided on special requirement.

DESCRIPTION:

This machine series is suitable for machining parts in all industries. It can perform cylindrical turning, boring, tapering, surfacing, and grooving, both rough and finishing operations.

The table uses a high-precision thrust ball bearing for the rolling guideway, while the C5116 machine adopts a slipping guideway. The spindle radial is equipped with NN30 type double row cylindrical rolling bearings, which improve the rotary precision and load capacity of the table.

The rail head is equipped with a pentagonal turret, and the side head has a square turret design.

Both heads are hydraulically balanced.

The rail head of the C518-C5116 machine uses rolling lead screw bearings for horizontal and vertical movement transmission.

The machine's electrical equipment is controlled by a PC, ensuring high reliability.

The machine's overall dimensions are aesthetically pleasing and user-friendly. It is easy to maintain and service.

On special request, additional attachments such as a side head, digital control, and turning taper can be provided.



Machine specification

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500





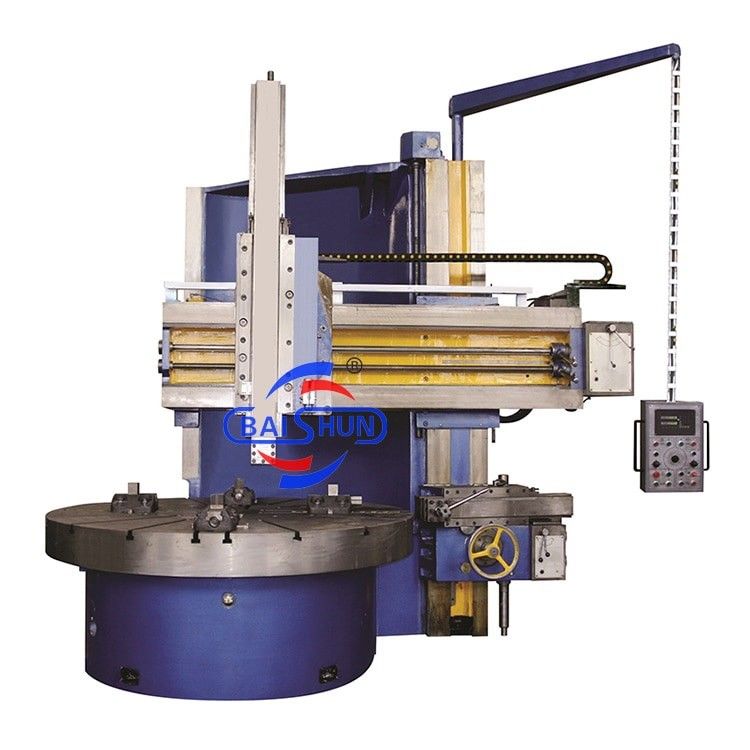

Machine picture
