VTL Cnc Vertical Lathe Borer Single Column Vertical Turning Lathe Machine

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: Provided

Model Number: C5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

vertical borer

,

VTL cnc vertical lathe

,

cnc vertical lathe 2830x2670x3010mm

Product Name:
High Precision Vertical Lathe Machine
Max. Height Of Workpiece (mm):
1200
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Max. Turned Length (mm):
1600 Mm
Type:
VERTICAL
Dimension(L*W*H):
2830*2670 *3010mm
Weight (KG):
12400 KG
Warranty:
1 Year
Automatic Grade:
Manual
Product Name:
High Precision Vertical Lathe Machine
Max. Height Of Workpiece (mm):
1200
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Max. Turned Length (mm):
1600 Mm
Type:
VERTICAL
Dimension(L*W*H):
2830*2670 *3010mm
Weight (KG):
12400 KG
Warranty:
1 Year
Automatic Grade:
Manual
VTL Cnc Vertical Lathe Borer Single Column Vertical Turning Lathe Machine

VTL Single Column Vertical Lathe Machine High Precision Vertical Lathe Machine



This lathe is perfect for cutting tools made of high-speed steel, hard alloy, and ceramics. It can handle both inner and outer cylindrical surfaces, inner and outer conical surfaces, grooves, and flat surfaces of metallic and non-metallic parts. With its high efficiency and stable precision, it can easily meet various production demands.

The C5112 model of our single-column lathe is a highly rigid machine with large machining capacities, a stable and sturdy structure, and efficient performance. It comes with a vertical tool head and can be equipped with a high precision digital readout system (DRO). The use of an AC inverter motor allows for easy speed adjustment. The gears, made from 40 Cr steel, are precision ground to ensure high accuracy and reduce machine noise. These machines are specifically designed and built to handle modern machining requirements, including high-speed cutting tools and carbide cutters, for work pieces made of ferrous and non-ferrous metals, composites, and other materials.



Vertical Lathe Machine Main Structure:



1. Machine tool: The main components of the machine tool (lathe bed, base, workbench, beam, vertical slide rest, side tool box, feed box, main drive gear box) are made of strong cast iron using resin sand technology.

2. Main drive: The workbench rotation is powered by the main electric motor, with a gear reduction and an electromagnetic speed control system for adjusting the speed.

3. Vertical slide and feed mechanism of the vertical slide: The RAM is made of HT250 material, known for its excellent mechanical properties.

4. Workbench base structure: The workbench adopts a long spindle structure, supported by high-precision double row cylindrical roller bearings for radial alignment.

5. Beam: The beam is secured and released using a drift, with hydraulic pressure for clamping.

6. Hydraulic system: The hydraulic system uses reliable control components from renowned manufacturers, both domestic and international.

7. Lubrication of the machine tool: The machine tool automatically provides oil at specified intervals to lubricate the beam and moving parts.

8. Machine tool protection: The machine tool's moving parts are equipped with a comprehensive security chain and interlock system.

9. Electrical control system:

a) Power source: Three-phase current of 380V±10%, 50Hz.

b) The electrical design of the machine tool follows international design standards.





Machine specification

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

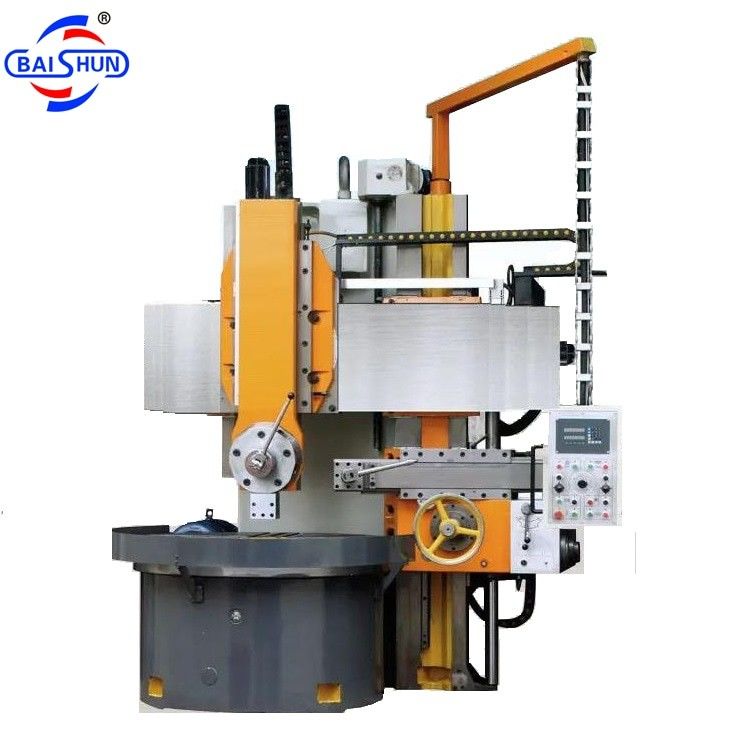

Machine picture
