Product Details
Place of Origin: Henan, China
Brand Name: BAISHUN
Certification: Provided
Model Number: C5116
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard package or negotiation with customer
Delivery Time: 45 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 Set/Sets per Month
Product Name: |
Metal Turning Vertical Lathe Machine |
Max. Length Of Workpiece (mm): |
1600 |
Machining Capacity: |
Heavy Duty |
Max. Turned Length (mm): |
1600 Mm |
Type: |
VERTICAL |
Spindle Motor Power(kW): |
30 |
Voltage: |
380V |
Dimension(L*W*H): |
2830*2670 *3010mm |
Weight (KG): |
12400 KG |
Warranty: |
1 Year |
Product Name: |
Metal Turning Vertical Lathe Machine |
Max. Length Of Workpiece (mm): |
1600 |
Machining Capacity: |
Heavy Duty |
Max. Turned Length (mm): |
1600 Mm |
Type: |
VERTICAL |
Spindle Motor Power(kW): |
30 |
Voltage: |
380V |
Dimension(L*W*H): |
2830*2670 *3010mm |
Weight (KG): |
12400 KG |
Warranty: |
1 Year |
10Ton Convention Economic Metal Turning Vertical Lathe Machine Heavy Duty
Machine Description:
This lathe is perfect for cutting tools made of high-speed steel, hard alloy, and ceramics. It can handle both inner and outer cylindrical surfaces, inner and outer conical surfaces, grooves, and flat surfaces of metallic and non-metallic parts. With its high efficiency and stable precision, it can easily meet various production demands.
The C5112 model of our single-column lathe is a highly rigid machine with large machining capacities, a stable and sturdy structure, and efficient performance. It comes with a vertical tool head and can be equipped with a high precision digital readout system (DRO). The use of an AC inverter motor allows for easy speed adjustment. The gears, made from 40 Cr steel, are precision ground to ensure high accuracy and reduce machine noise. These machines are specifically designed and built to handle modern machining requirements, including high-speed cutting tools and carbide cutters, for work pieces made of ferrous and non-ferrous metals, composites, and other materials.
Vertical Lathe Features:
The C5112 model of our single-column lathe is a highly rigid machine with large machining capacities, a stable and sturdy structure, and efficient performance. It comes with a vertical tool head and can be equipped with a high precision digital readout system (DRO).
An AC inverter motor is used for speed adjustment.
The gears, made from 40 Cr steel, are precision ground to ensure high accuracy and reduce machine noise. These machines are specifically designed and built to handle modern machining requirements, including high-speed cutting tools and carbide cutters, for workpieces made of ferrous and non-ferrous metals, composites, and other materials.
Model |
C518 |
C5112 |
C5116 |
C5120 |
C5125 |
Max.turning dia.(mm) |
800 |
1200 |
1600 |
2000 |
2500 |
Max.cutting height(mm) |
800 |
1000 |
1000 |
1250 |
1250 |
Max.loading weight(tons) |
1.2 |
3.2 |
5 |
8 |
10 |
Worktable diameter(mm) |
720 |
1000 |
1400 |
1800 |
2250 |
Worktable speed range(r/min) |
30-260 |
6.3-200 |
5-160 |
3.2-100 |
2-63 |
Max worktable torque(n.m) |
1000 |
25000 |
32000 |
32000 |
35000 |
vertical travel of vertical tool post(mm) |
650 |
650 |
800 |
800 |
1200 |
horizontal travel of vertical post(mm) |
570 |
700 |
915 |
1200 |
1400 |
G.W(tons) |
7 |
8 |
12.4 |
17 |
23 |
Dimension(L*W*Hmm) |
2080*2621 *3515 |
2360*2280 *2800 |
2830*2670 *3010 |
3200*2800 *3250 |
3300*4000 *3500 |

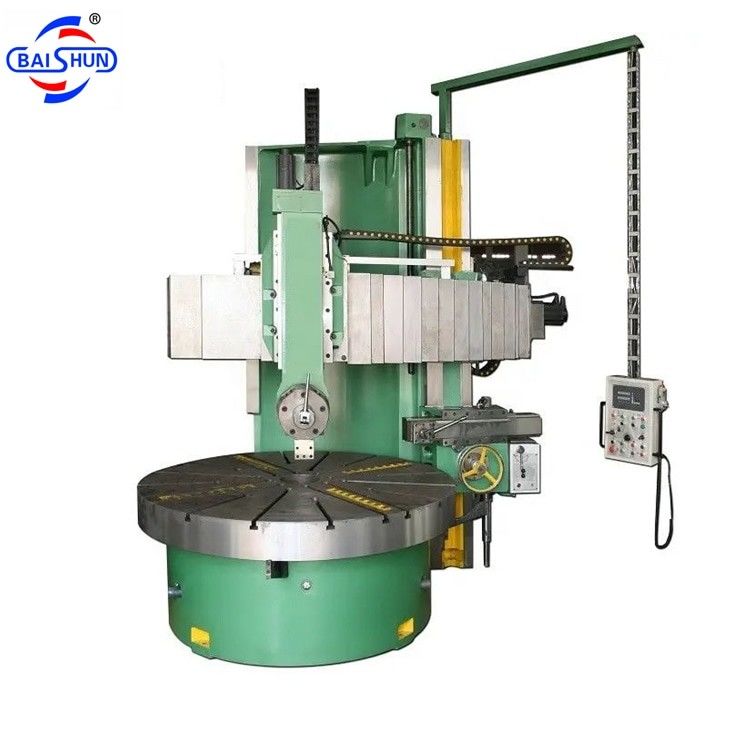

Machine picture:
