Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: Provided

Model Number: C5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard package or negotiation with customer

Delivery Time: 35 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

Single Column Vertical Lathe

,

Vertical Lathe Machine Conventional

,

C5112

Product Name:
C5112 High Efficient Vertical Lathe Machine
Max. Height Of Workpiece (mm):
1000
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1200 Mm
Type:
VERTICAL
Spindle Motor Power(kW):
22
Dimension(L*W*H):
2350*2350 *2700mm
Weight (KG):
10400 KG
Warranty:
1 Year
Automatic Grade:
Conventional
Product Name:
C5112 High Efficient Vertical Lathe Machine
Max. Height Of Workpiece (mm):
1000
Machining Capacity:
Medium Duty
Max. Turned Length (mm):
1200 Mm
Type:
VERTICAL
Spindle Motor Power(kW):
22
Dimension(L*W*H):
2350*2350 *2700mm
Weight (KG):
10400 KG
Warranty:
1 Year
Automatic Grade:
Conventional
Single Column Vertical Turning Lathe Machine Conventional C5112 High Efficient

Single Column Conventional C5112 High Efficient Vertical Lathe Machine



The Single column model C5112 are super rigid machines with big machining capacities, stable and rigid structure and high machining efficiency. The machine is equipped with one vertical tool head and can be equipped with high precision digital readout system (DRO). AC inverter motor is used to achieve speed change. Gears are made of 40 Cr steel and precision ground for high precision and low machine noise. The machines are designed and built to meet modern machining requirements of high speed cutting tools and carbide cutters on work pieces of ferrous, non-ferrous, composite and other materials.

1. Machine tool: The main components of the machine tool (lathe bed, base, workbench, beam, vertical slide rest, side tool box, feed box, main drive gear box) are made of strong cast iron using resin sand technology.

2. Main drive: The workbench rotation is powered by the main electric motor, with a gear reduction and an electromagnetic speed control system for adjusting the speed.

3. Vertical slide and feed mechanism of the vertical slide: The RAM is made of HT250 material, known for its excellent mechanical properties.

4. Workbench base structure: The workbench adopts a long spindle structure, supported by high-precision double row cylindrical roller bearings for radial alignment.

5. Beam: The beam is secured and released using a drift, with hydraulic pressure for clamping.

6. Hydraulic system: The hydraulic system uses reliable control components from renowned manufacturers, both domestic and international.

7. Lubrication of the machine tool: The machine tool automatically provides oil at specified intervals to lubricate the beam and moving parts.

8. Machine tool protection: The machine tool's moving parts are equipped with a comprehensive security chain and interlock system.

9. Electrical control system:

a) Power source: Three-phase current of 380V±10%, 50Hz.

b) The electrical design of the machine tool follows international design standards.





Machine Specification

Model

C518

C5112

C5116

C5120

C5125

Max.turning dia.(mm)

800

1200

1600

2000

2500

Max.cutting height(mm)

800

1000

1000

1250

1250

Max.loading weight(tons)

1.2

3.2

5

8

10

Worktable diameter(mm)

720

1000

1400

1800

2250

Worktable speed range(r/min)

30-260

6.3-200

5-160

3.2-100

2-63

Max worktable torque(n.m)

1000

25000

32000

32000

35000

vertical travel of vertical tool post(mm)

650

650

800

800

1200

horizontal travel of vertical post(mm)

570

700

915

1200

1400

G.W(tons)

7

8

12.4

17

23

Dimension(L*W*Hmm)

2080*2621

*3515

2360*2280

*2800

2830*2670

*3010

3200*2800

*3250

3300*4000

*3500

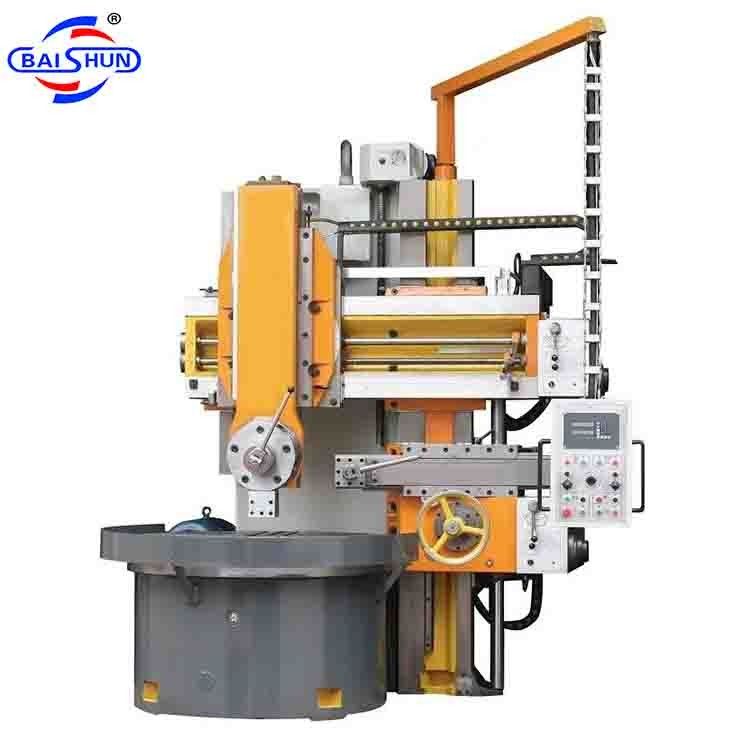

Machine picture
