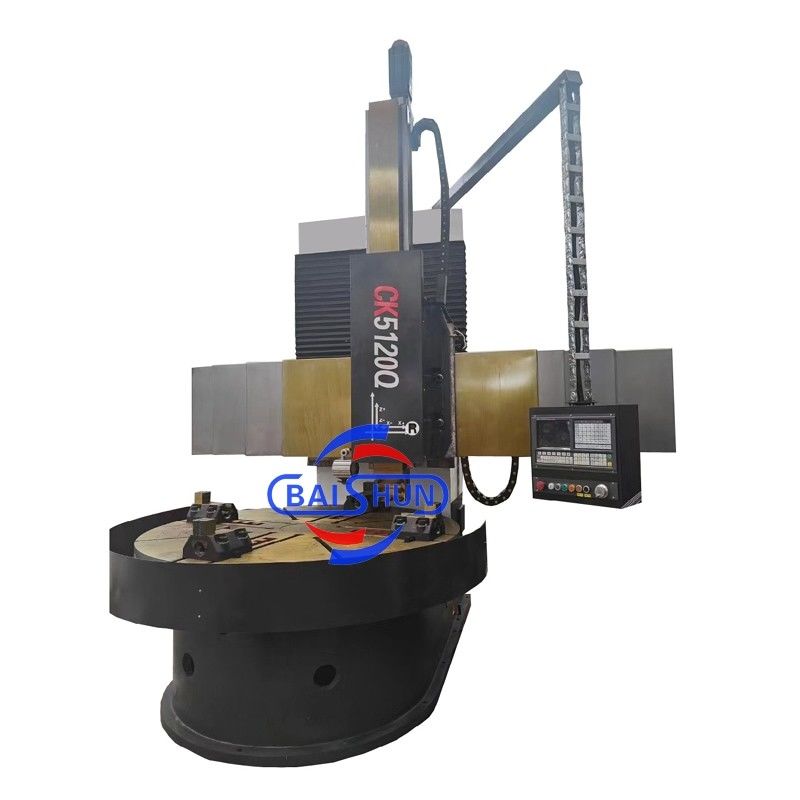

Metal Turning CNC Vertical Lathe Machine
Metal Turning CNC Vertical Lathe Machine
Metal Turning CNC Vertical Lathe Machine
Metal Turning CNC Vertical Lathe Machine
Metal Turning CNC Vertical Lathe Machine

Metal Turning CNC Vertical Lathe Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Turning CNC Vertical Lathe Machine

,

Metal CNC Vertical Lathe Machine

,

Metal Vertical Lathe

Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Machining Capacity:
Medium Duty
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Repeatability (X/Y/Z) (mm):
±0.004
Dimension(L*W*H):
2660*2665 *3528mm
Product Name:
Cheap Cost CNC Vertical Turing Lathe Machine
Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Machining Capacity:
Medium Duty
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Repeatability (X/Y/Z) (mm):
±0.004
Dimension(L*W*H):
2660*2665 *3528mm
Product Name:
Cheap Cost CNC Vertical Turing Lathe Machine
Metal Turning CNC Vertical Lathe Machine

CK5116 CNC Vertical Lathe

Main Features:

1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm, the table diameter is 1400mm, and the maximum machining height is 1000mm.

2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.

3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.

4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.

Product Description

The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.

Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.





Machine parameter

Model

CK518

CK5112Q

CK5112A

CK5116Q

CK5120A

CK5126A

Max. turning diameter of vertical tool rest (mm)

800

1200

1200

1600

2000

2600

Working table diameter (mm)

700

1000

1000

1400

1800

2200

Max. height of work-piece (mm)

800

1000

1000

1200

1250

1400

Max. weight of work-piece (kg)

1500

1500

3200

3200

8000

8000

Range of worktable rotation speed (rpm)

30-260

20-180

6.3-200

15-160

3.2-100

2.2-70

Feeding series

Stepless

Stepless

Stepless

Stepless

Stepless

Stepless

Range of tool rest feed (mm/min)

0.25-90

0.25-90

0.8-86

0.25-90

0.8-86

0.8-86

Cross beam travel (mm)

500

1000

650

1200

890

1090

Horizontal travel of tool rest (mm)

500

700

700

900

1115

1400

Vertical travel of tool rest (mm)

450

500

650

750

800

800

Size of section of cutter bar (mm)

30*40

30*40

30*40

30*40

30*40

30*40

Main motor power (kw)

11

15

22

15

30

30

Metal Turning CNC Vertical Lathe Machine 0Metal Turning CNC Vertical Lathe Machine 1
