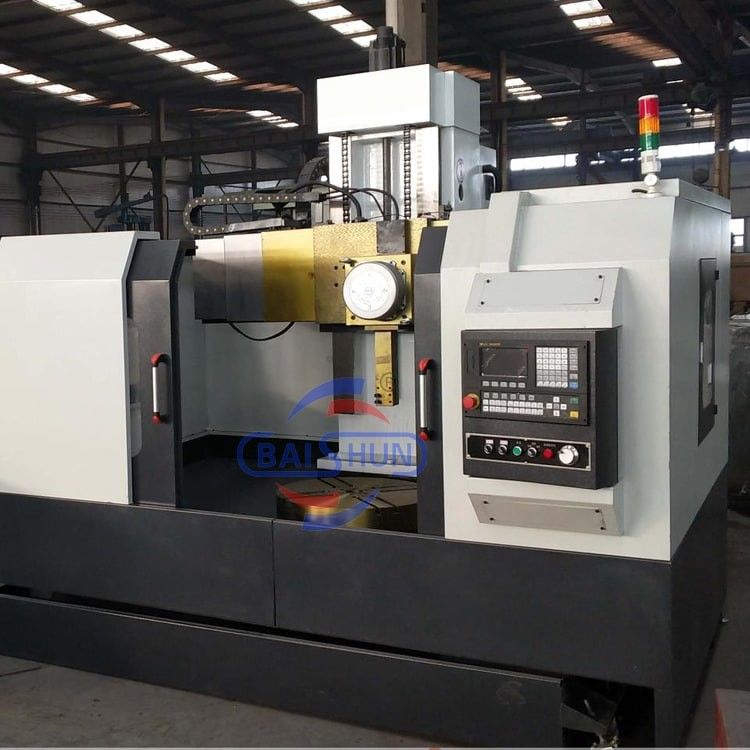

Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum

Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

3 axis vertical milling machine

,

vmc 3 axis

,

3 axis vertical machining center

Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
2660*2665 *3528mm
Voltage:
380V
Tool Post Stations:
4
Weight (KG):
12500
Product Name:
Vertical Turning Lathe
Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
2660*2665 *3528mm
Voltage:
380V
Tool Post Stations:
4
Weight (KG):
12500
Product Name:
Vertical Turning Lathe
Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum

Product Description



China CNC Milling Tools Lathe Metal 3 Axis Automatic Single Colum Vertical Lathe



China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

Our hot selling CNC Vertical Turning Lathe is perfect for processing ferrous metals, nonferrous metals, and some non-metallic materials. It can handle tasks such as turning end faces, inner and outer cylindrical surfaces, inner and outer circular conical surfaces, as well as hole drilling, expanding, and reaming. The main transmission is driven by an AC servo motor, and the machine offers hydraulic gear shifting and stepless speed regulation with two gears. The worktable is equipped with a manual 4-jaw single movement chuck for easy operation.





Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30

Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum 0Vmc 3 Axis Cnc Vertical Milling Machine Center Metal Automatic Single Colum 1



Our Services



Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.
