cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing

cnc vertical turning lathe machine alloy Wheel Repair Metal Processing

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

cnc vertical turning lathe machine

,

vertical alloy wheel lathe

,

vertical wheel lathe

Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Number Of Axes:
2
Travel (X Axis)(mm):
800 Mm
Max. Length Of Workpiece (mm):
1600
Max. Spindle Speed (r.p.m):
160 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Number Of Axes:
2
Travel (X Axis)(mm):
800 Mm
cnc vertical turning lathe machine alloy Wheel Repair Metal Processing

Product Description

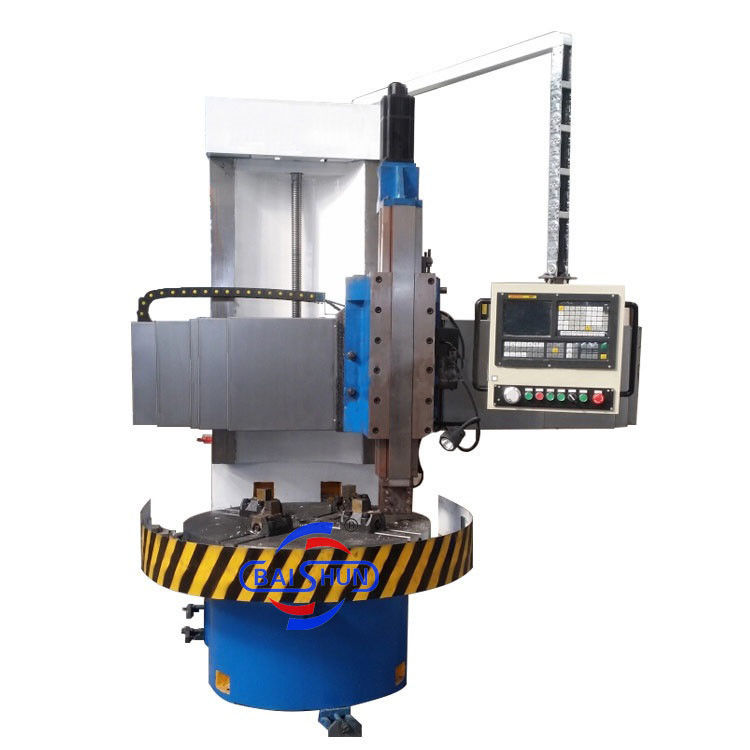

CNC Vertical Turning Lathe For Wheel Repair Lathe Machines Metal Processing



China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.



CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy work pieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve work pieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the work pieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the work piece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.





Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30

cnc vertical turning lathe machine alloy Wheel Repair Metal Processing 0cnc vertical turning lathe machine alloy Wheel Repair Metal Processing 1

Our Services



Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.
