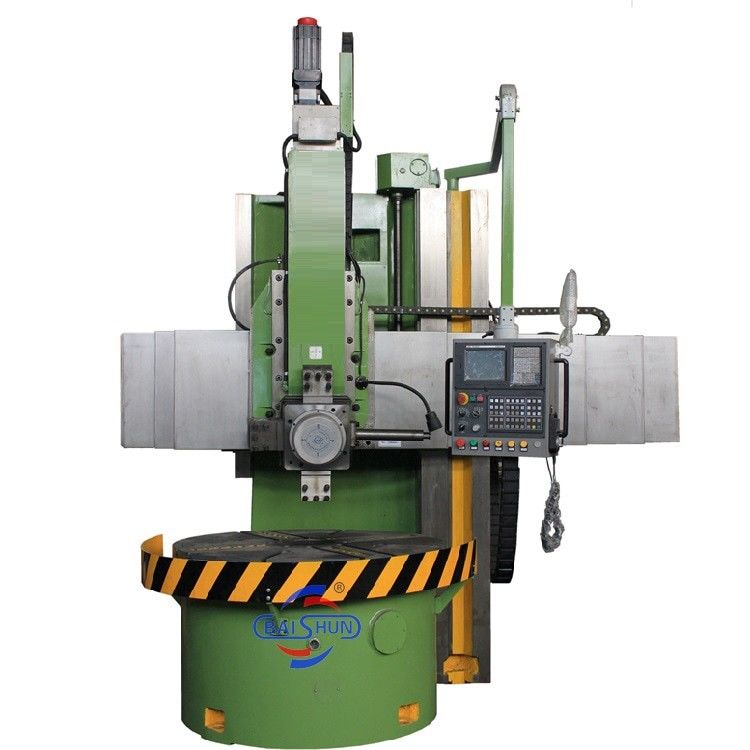

CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe

CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE，ISO

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

CK5120

,

vertical cnc lathe machine

,

cnc vertical turning lathe

Max. Length Of Workpiece (mm):
2600
Max. Spindle Speed (r.p.m):
260 R.p.m
Machining Capacity:
Medium Duty
Travel (Z Axis)(mm):
800 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Weight (KG):
7000
Product Name:
CNC Vertical Turning Lathe
Max.turning Diameter:
1600mm
Max. Height Of Wok Piece:
1200mm
Max. Length Of Workpiece (mm):
2600
Max. Spindle Speed (r.p.m):
260 R.p.m
Machining Capacity:
Medium Duty
Travel (Z Axis)(mm):
800 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Weight (KG):
7000
Product Name:
CNC Vertical Turning Lathe
Max.turning Diameter:
1600mm
Max. Height Of Wok Piece:
1200mm
CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe

Product Description



High Precision Vertical Lathe Machine CK5116 Heavy Duty CNC Turning Lathe



The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.

Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with animatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.

To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway.

* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.



The CNC Vertical lathe is a big machine used for handling large and heavy workpieces with a wide radial size and relatively smaller axial size. It's designed to process workpieces with complex shapes, such as cylindrical surfaces, end surfaces, conical surfaces, cylindrical holes, conical holes, and more. Additionally, with the help of additional tools, it can also perform operations like thread cutting, turning spherical surfaces, imitation machining, and grinding. Unlike horizontal lathes where workpieces are clamped horizontally, the vertical lathe has its main spindle axis arranged vertically, and the worktable is positioned horizontally. This arrangement makes it more convenient for clamping and aligning workpieces. Furthermore, this setup reduces the load on the spindle and bearings, enabling the vertical lathe to maintain its accuracy over long periods of operation.





Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30

CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe 0CK5120 Vertical Cnc Lathe Machine High Precision Heavy Duty CNC Turning Lathe 1

Tags:

Torno CNC Vertical Lathe Machine,

CK5116,

CK5120
