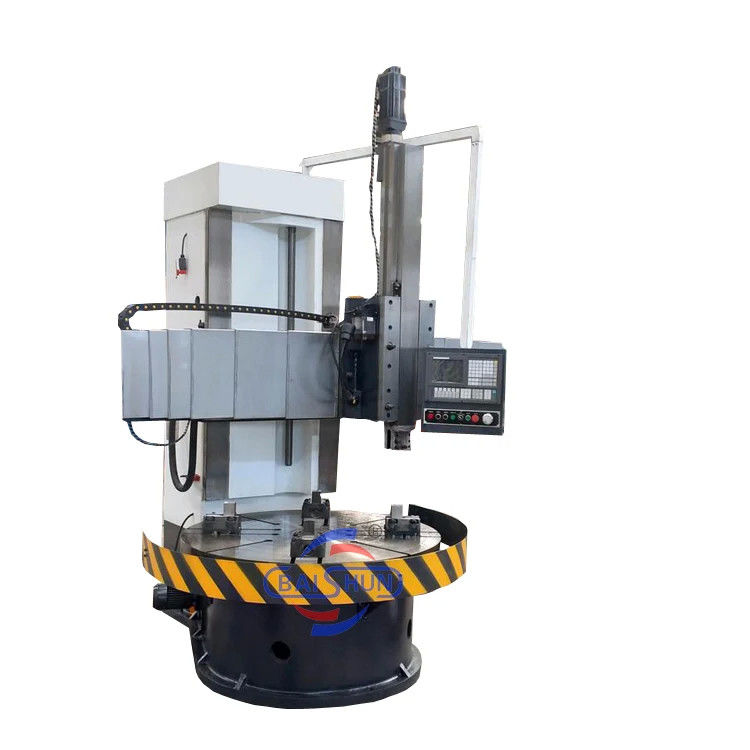

CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112

CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE，ISO

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

vertical turret lathe machine

,

CK5112

,

turret lathe for sale

Max. Length Of Workpiece (mm):
2600
Max. Spindle Speed (r.p.m):
260 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
105
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Voltage:
380V
Product Name:
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe
Max.turning Diameter:
1200mm
Max. Length Of Workpiece (mm):
2600
Max. Spindle Speed (r.p.m):
260 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
105
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Voltage:
380V
Product Name:
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe
Max.turning Diameter:
1200mm
CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112
Product Description

CNC controlling Automatic Vertical Turning Lathe







Product Overview: The Vertical CNC Lathe, also known as a Vertical Turning Center, is a powerful machine used in metalworking to precisely and efficiently turn and cut metal components. With its vertical spindle that holds and rotates the workpiece, it has gained popularity in various manufacturing industries. It excels in the production of large and heavy components like gears, turbines, and aerospace parts, especially those with a high aspect ratio.

Moreover, the CNC vertical lathe is equipped with advanced automation features, allowing for minimal human intervention. It can be programmed to perform a wide range of machining operations, including turning, drilling, boring, threading, and milling. Offering versatility, high precision, and automation, the CNC vertical lathe has become an indispensable tool in modern manufacturing processes.



The CNC Vertical lathe is a big machine used for handling large and heavy workpieces with a wide radial size and relatively smaller axial size. It's designed to process workpieces with complex shapes, such as cylindrical surfaces, end surfaces, conical surfaces, cylindrical holes, conical holes, and more. Additionally, with the help of additional tools, it can also perform operations like thread cutting, turning spherical surfaces, imitation machining, and grinding. Unlike horizontal lathes where workpieces are clamped horizontally, the vertical lathe has its main spindle axis arranged vertically, and the worktable is positioned horizontally. This arrangement makes it more convenient for clamping and aligning workpieces. Furthermore, this setup reduces the load on the spindle and bearings, enabling the vertical lathe to maintain its accuracy over long periods of operation.



Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30

CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112 0CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112 1CNC Heavy Duty Vertical Turret Lathe Machine Metal Cutting Lathe High Accuracy CK5112 2
