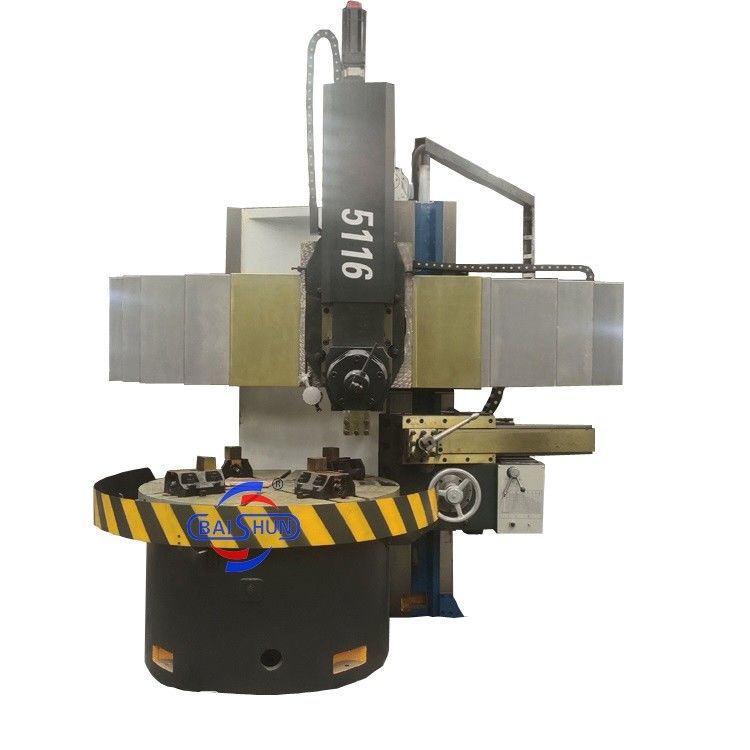

Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic

Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN

Certification: CE ISO9001

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

vertical turret milling machine

,

vertical turret mill

,

milling machine turret

Max. Length Of Workpiece (mm):
1200
Max. Spindle Speed (r.p.m):
180 R.p.m
Spindle Bore(mm):
130
Spindle Motor Power(kW):
15
No. Of Spindles:
Single
Max. Turned Length (mm):
1200
Dimension(L*W*H):
2350*2350 *2700mm
Tool Post Stations:
4
Weight (KG):
85000
Dia. Of Worktable:
1000mm
Max. Length Of Workpiece (mm):
1200
Max. Spindle Speed (r.p.m):
180 R.p.m
Spindle Bore(mm):
130
Spindle Motor Power(kW):
15
No. Of Spindles:
Single
Max. Turned Length (mm):
1200
Dimension(L*W*H):
2350*2350 *2700mm
Tool Post Stations:
4
Weight (KG):
85000
Dia. Of Worktable:
1000mm
Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic



Product Description
Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe

Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

1.The overall layout
Machine tools mainly by the table, table base, column, beam, vertical knife frame composition. The machine tool base are used HT250 cast iron, the use of resin sand process, cast after the stew fire, rough processing after aging treatment (artificial aging and vibration aging). Casting quality and reliable without cracks, pores, shrinkage and white mouth tissue, castings by stew fire, aging treatment with a stable organization to ensure the use of the machine during the stability of the product quality certificate to provide molten iron chemical composition analysis report, heat treatment Report and heat treatment temperature time curve.



2.The main drive

Main drive main motor, through the gear box 16 gear speed for speed conversion. The gears in the box are quenched and ground to ensure transmission accuracy and efficiency and reduce noise and reduce vibration.

3.Workbench

The table consists of table, table base, spindle components and transmission mechanism, table and table base for the overall casting processing. The table guide surface is inlaid with an aluminum alloy guide plate and a pressure oil is injected between the guide rails to form a dynamic pressure rail. So the table carrying capacity, high precision rotation.



4.Beams

The beam moves up and down on the column. The beam consists of a knife feed drive mechanism, a beam clamping mechanism and a hydraulic device. Install a set of automatic lubricating oil pump on the beam, according to the need to lubricate the rail surface.



5.Vertical knife frame

Z-axis, Z-axis by the servo motor drive, through the planetary reducer to increase the torque, by the electromagnetic clutch switch control two axes and locked each other to achieve a variety of complex processing.



6.Hydraulic system

The hydraulic system includes: the table dynamic pressure system, the main drive transmission system, beam clamping and hydraulic system, vertical knife frame hydraulic balance system. Hydraulic system is essential, machine lubrication, dynamic pressure rail stability, to ensure the stability of the hydraulic system and interchangeability.



Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30

Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic 0Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic 1Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic 2

Product Description
Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe

Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

Main Features:


1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm, the table diameter is 1400mm, and the maximum machining height is 1000mm.

2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.

3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.

4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.

The CNC vertical lathe is a top-performing machine with a wide range of capabilities and high productivity. Our company has developed a cutting-edge machine tool that seamlessly integrates animatronics and hydraulics, drawing inspiration from advanced design and manufacturing techniques, and incorporating our rich corporate culture. This allows us to deliver world-class products to both domestic and international customers.





Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30

Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic 0Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic 1Single Column CNC Vertical Turret Milling Machine CE Standard High Rigidity Automatic 2

Product Description
Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe

Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

Product Overview: The Vertical CNC Lathe, also known as a Vertical Turning Center, is a powerful machine used in metalworking to precisely and efficiently turn and cut metal components. With its vertical spindle that holds and rotates the workpiece, it has gained popularity in various manufacturing industries. It excels in the production of large and heavy components like gears, turbines, and aerospace parts, especially those with a high aspect ratio.



Moreover, the CNC vertical lathe is equipped with advanced automation features, allowing for minimal human intervention. It can be programmed to perform a wide range of machining operations, including turning, drilling, boring, threading, and milling. Offering versatility, high precision, and automation, the CNC vertical lathe has become an indispensable tool in modern manufacturing processes.



The CNC vertical lathe is a top-performing machine with a wide range of capabilities and high productivity. Our company has developed a cutting-edge machine tool that seamlessly integrates animatronics and hydraulics, drawing inspiration from advanced design and manufacturing techniques, and incorporating our rich corporate culture. This allows us to deliver world-class products to both domestic and international customers.



To ensure high precision and durability, we have employed integral casting and a thermally balanced structure for the table. The main shaft bearing utilizes a high-precision double row cylindrical roller bearing, and the table guideway is optimized for smooth operation.



Please note that we are constantly striving to enhance our products, and therefore, the information provided may be subject to change without prior notice.



Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750
