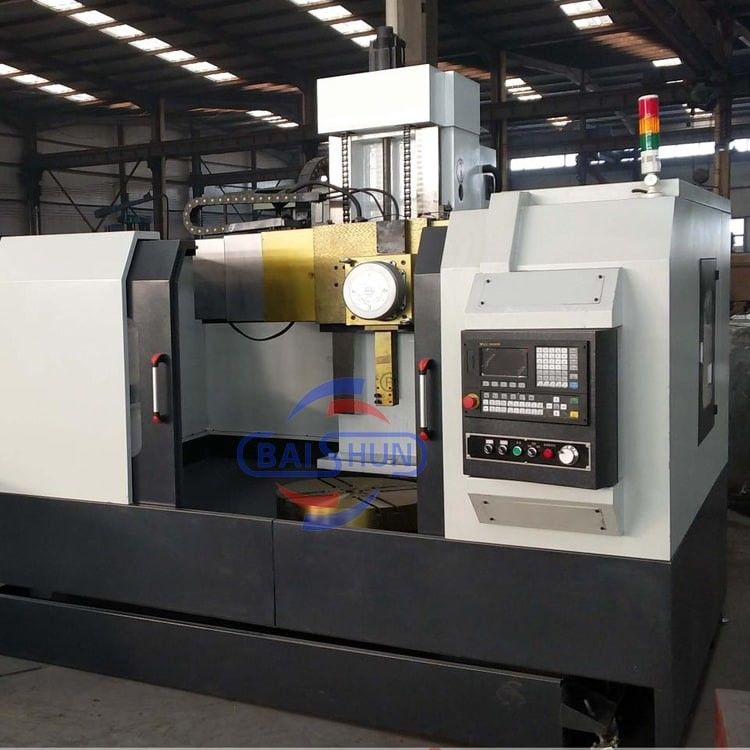

Automatic Metal CK5116 3 Axis Vertical CNC Turning Lathe Machine VTL Lathe CE
Main Features:
1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm, the table diameter is 1400mm, and the maximum machining height is 1000mm.
2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.
3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.
4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.
CNC Vertical Turning Lathe Machine
The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.
Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with animatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.
To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Machine parameter
| Model |
CK518 |
CK5112Q |
CK5112A |
CK5116Q |
CK5120A |
CK5126A |
| Max. turning diameter of vertical tool rest (mm) |
800 |
1200 |
1200 |
1600 |
2000 |
2600 |
| Working table diameter (mm) |
700 |
1000 |
1000 |
1400 |
1800 |
2200 |
| Max. height of work-piece (mm) |
800 |
1000 |
1000 |
1200 |
1250 |
1400 |
| Max. weight of work-piece (kg) |
1500 |
1500 |
3200 |
3200 |
8000 |
8000 |
| Range of worktable rotation speed (rpm) |
30-260 |
20-180 |
6.3-200 |
15-160 |
3.2-100 |
2.2-70 |
| Feeding series |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
| Range of tool rest feed (mm/min) |
0.25-90 |
0.25-90 |
0.8-86 |
0.25-90 |
0.8-86 |
0.8-86 |
| Cross beam travel (mm) |
500 |
1000 |
650 |
1200 |
890 |
1090 |
| Horizontal travel of tool rest (mm) |
500 |
700 |
700 |
900 |
1115 |
1400 |
| Vertical travel of tool rest (mm) |
450 |
500 |
650 |
750 |
800 |
800 |
| Size of section of cutter bar (mm) |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
| Main motor power (kw) |
11 |
15 |
22 |
15 |
30 |
30 |
