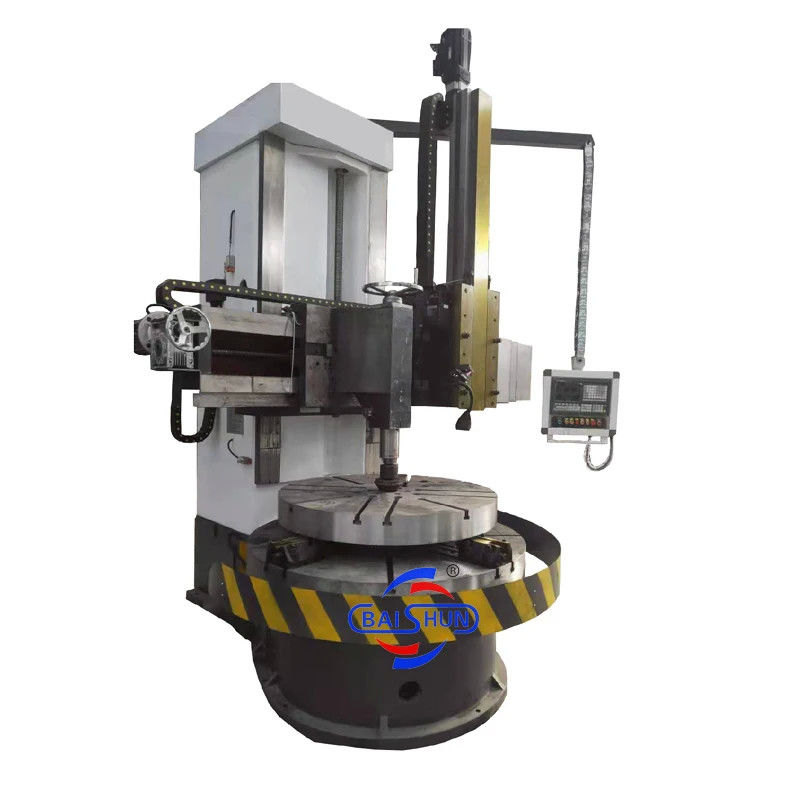

Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno

Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

cnc lathe and turning center

,

manual vertical turret lathe

,

cnc lathe and turning center

Max. Length Of Workpiece (mm):
1600
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Number Of Axes:
2
Travel (X Axis)(mm):
800 Mm
Travel (Z Axis)(mm):
916 Mm
Positioning Accuracy (mm):
±0.005
Dimension(L*W*H):
2660*2665 *3528mm
Tool Post Stations:
4
Weight (KG):
12500
Product Name:
Low Price Power Vertical Turning Center Turret Lathe Torno
Max. Length Of Workpiece (mm):
1600
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Single
Max. Turned Length (mm):
1600
Number Of Axes:
2
Travel (X Axis)(mm):
800 Mm
Travel (Z Axis)(mm):
916 Mm
Positioning Accuracy (mm):
±0.005
Dimension(L*W*H):
2660*2665 *3528mm
Tool Post Stations:
4
Weight (KG):
12500
Product Name:
Low Price Power Vertical Turning Center Turret Lathe Torno
Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno
Product Description

The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.

Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.

CNC Disc Drum Heavy Duty Vertical Automatic Lathe For Metal Cutting Processing



Product Description

Used High Quality CNC Vertical Lathe Machine With Good After Sales And Guarantee



The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.

Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.





Machine parameter

Model CK518 CK5112Q CK5112A CK5116Q CK5120A CK5126A
Max. turning diameter of vertical tool rest (mm) 800 1200 1200 1600 2000 2600
Working table diameter (mm) 700 1000 1000 1400 1800 2200
Max. height of work-piece (mm) 800 1000 1000 1200 1250 1400
Max. weight of work-piece (kg) 1500 1500 3200 3200 8000 8000
Range of worktable rotation speed (rpm) 30-260 20-180 6.3-200 15-160 3.2-100 2.2-70
Feeding series Stepless Stepless Stepless Stepless Stepless Stepless
Range of tool rest feed (mm/min) 0.25-90 0.25-90 0.8-86 0.25-90 0.8-86 0.8-86
Cross beam travel (mm) 500 1000 650 1200 890 1090
Horizontal travel of tool rest (mm) 500 700 700 900 1115 1400
Vertical travel of tool rest (mm) 450 500 650 750 800 800
Size of section of cutter bar (mm) 30*40 30*40 30*40 30*40 30*40 30*40
Main motor power (kw) 11 15 22 15 30 30



Vertical Lathe MachineFeature:



The table adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.

The column cross rail adopt high strengthen and high wear-resistance Grey cast iron.

Fiction pairs of guideway in horizontal and vertical direction adopt wear-resistance grey cast iron.

Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.

Black chromium plane of new type for botton siation.

The rail head is designed with lead screw for horizontal and vertical transmission.

Pentagonal turret pinion plate index positioning with high strengthen and rigidity.

Lubrication of cross is supplied with oil by hand pump.

Manual Vertical Turret Lathe CNC Controller Power Vertical Turning Center Torno 0

Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.
