CNC Vertical Turret Lathe Machine
, Vertical Turret Lathe Machine Single Column
, CK5116

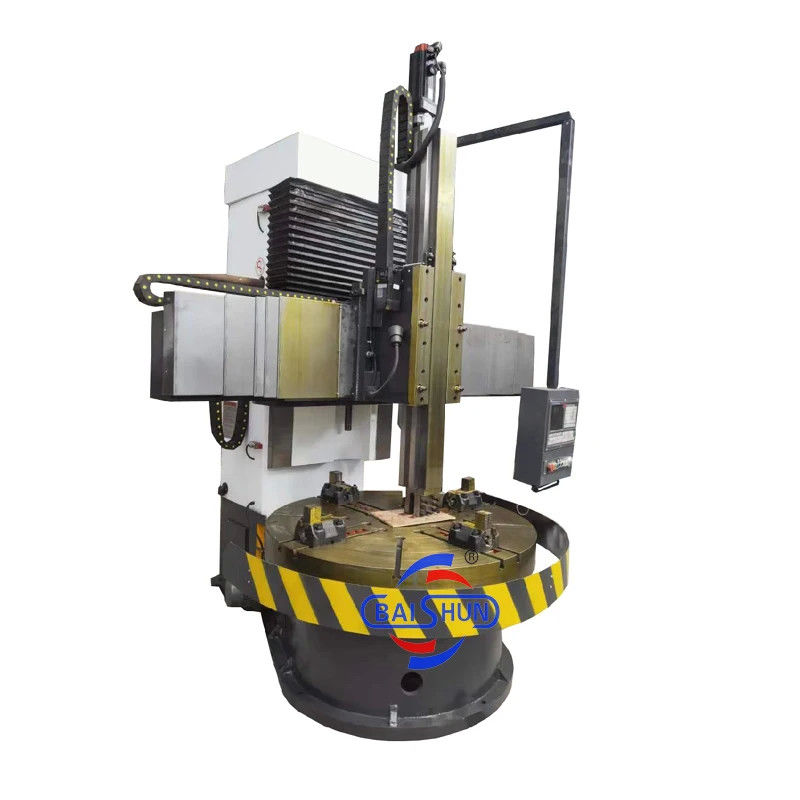

CNC Vertical Turret Lathe Machine Single Column Adjustable Live Center CK5116
CNC Lathe Single Column Adjustable Live Center Vertical Turret Lathe CK Series
The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.
CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.
Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.
Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.
Key Features:
The table utilizes a high precision thrust ball rolling guideway and a slide guideway with a diameter of 1.6 meters.
The column cross rail is made of high-strength and highly wear-resistant Grey cast iron.
The guideway pairs in both the horizontal and vertical directions are made of wear-resistant Grey cast iron.
The rail guideway surface of the ram and side head undergo middle frequency hardening and rolling grind finish machining.
The bottom station features a new type of black chromium plane.
The rail head is equipped with a lead screw for horizontal and vertical transmission.
The pentagonal turret pinion plate ensures high strength and rigidity in index positioning.
Cross lubrication is provided with oil through a hand pump.
Machine parameter
| Model |
CK518 |
CK5112Q |
CK5112A |
CK5116Q |
CK5120A |
CK5126A |
| Max. turning diameter of vertical tool rest (mm) |
800 |
1200 |
1200 |
1600 |
2000 |
2600 |
| Working table diameter (mm) |
700 |
1000 |
1000 |
1400 |
1800 |
2200 |
| Max. height of work-piece (mm) |
800 |
1000 |
1000 |
1200 |
1250 |
1400 |
| Max. weight of work-piece (kg) |
1500 |
1500 |
3200 |
3200 |
8000 |
8000 |
| Range of worktable rotation speed (rpm) |
30-260 |
20-180 |
6.3-200 |
15-160 |
3.2-100 |
2.2-70 |
| Feeding series |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
| Range of tool rest feed (mm/min) |
0.25-90 |
0.25-90 |
0.8-86 |
0.25-90 |
0.8-86 |
0.8-86 |
| Cross beam travel (mm) |
500 |
1000 |
650 |
1200 |
890 |
1090 |
| Horizontal travel of tool rest (mm) |
500 |
700 |
700 |
900 |
1115 |
1400 |
| Vertical travel of tool rest (mm) |
450 |
500 |
650 |
750 |
800 |
800 |
| Size of section of cutter bar (mm) |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
| Main motor power (kw) |
11 |
15 |
22 |
15 |
30 |
30 |
Vertical Lathe MachineFeature:
The table adopt high precision thrust ball rolling guideway and slide guideway in 1.6 metre of diameter.
The column cross rail adopt high strengthen and high wear-resistance Grey cast iron.
Fiction pairs of guideway in horizontal and vertical direction adopt wear-resistance grey cast iron.
Ram guideway surface of rail, side head adopt middle frequency harden rolling grind finish machining.
Black chromium plane of new type for botton siation.
The rail head is designed with lead screw for horizontal and vertical transmission.
Pentagonal turret pinion plate index positioning with high strengthen and rigidity.
Lubrication of cross is supplied with oil by hand pump.
