Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235
Integrated Alloy Wheel Double Column Vertical Lathe CK5235

Integrated Alloy Wheel Double Column Vertical Lathe CK5235

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5235

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

vertical alloy wheel lathe

,

Wheel Double Column Vertical Lathe

,

Double Column Vertical Lathe CK5235

Max. Length Of Workpiece (mm):
3500
Max. Spindle Speed (r.p.m):
50 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Twin
Max. Turned Length (mm):
3500
Number Of Axes:
2
Travel (X Axis)(mm):
750 Mm
Travel (Z Axis)(mm):
1800 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
3950*6300*4350mm
Voltage:
380V
CNC Control System:
GSK,SIEMENS, FANUC
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
35000
Max. Workpiece Weight::
8000kg
Max. Length Of Workpiece (mm):
3500
Max. Spindle Speed (r.p.m):
50 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
30
No. Of Spindles:
Twin
Max. Turned Length (mm):
3500
Number Of Axes:
2
Travel (X Axis)(mm):
750 Mm
Travel (Z Axis)(mm):
1800 Mm
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.005
Dimension(L*W*H):
3950*6300*4350mm
Voltage:
380V
CNC Control System:
GSK,SIEMENS, FANUC
Toolpost Brand:
Hongda
Tool Post Stations:
4
Weight (KG):
35000
Max. Workpiece Weight::
8000kg
Integrated Alloy Wheel Double Column Vertical Lathe CK5235

Vertical Alloy Wheel Popular Type Double Column CK5235 Vertical Lathe Machine



Double column vertical lathe is an advanced equipment with the integration of mechanical-electrical-hydraulic, which absorbing the new design philosophy and manufacturing technology. It adopts the CAD optimization design way, equips advanced functional components at home and abroad. In structure, it achieves strong strength, high dynamic and static stiffness, high precision, heavy loading, high efficiency, long service life, safe and reliable movement. Main technical specifications of each machine parts conform to the national related standards.

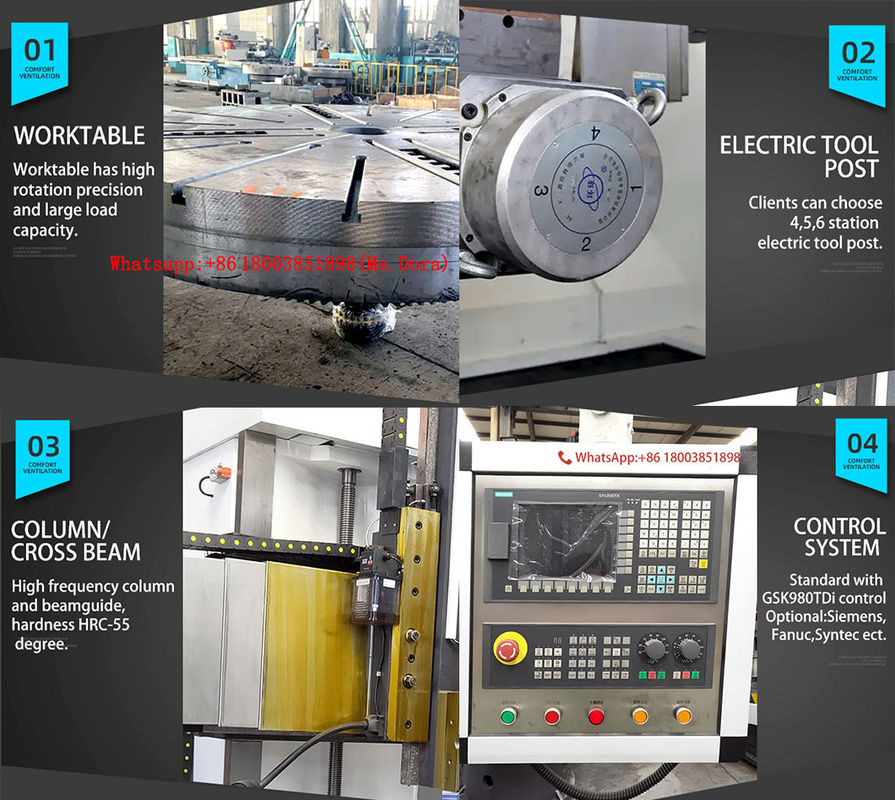

Machine has worktable base, worktable, main transmission box, gantry frame, beam, ram tool rest, feeding box, electrical system, operation station, hydraulic system, protection device and so on.



To ensure accuracy and load-bearing capabilities, the double column vertical lathe adopts a short spindle structure. The spindle centering bearing utilizes high-precision double row roller bearings. The worktable is equipped with a constant flow hydrostatic guideway, which supplies pressure oil to the static pressure oil cavity through an equivalent oil distributor. This design enhances both radial and axial precision of the worktable.

The main movement of the machine is driven by an AC servo motor, providing excellent dynamic characteristics. The worktable also has strong instantaneous overload capacity. The feeding axis movement is achieved through a servo motor driving a high-precision ball screw structure via a reduction box, ensuring accurate positioning.



Machine parameter

Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps   16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520



Product photos
Integrated Alloy Wheel Double Column Vertical Lathe CK5235 0Integrated Alloy Wheel Double Column Vertical Lathe CK5235 1
