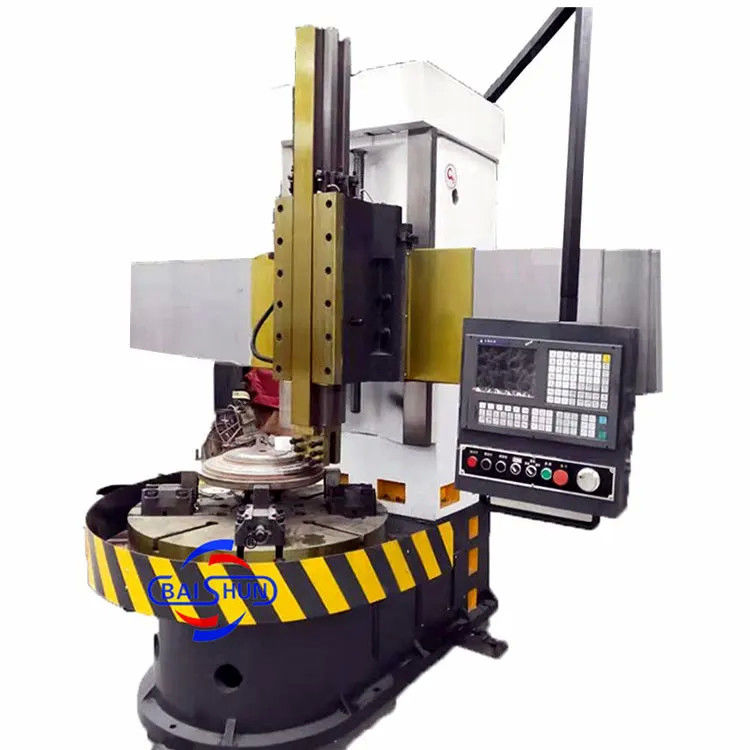

Vtl Cnc Vertical Lathe Machine With Live Tooling Siemens Controller

Name: Vtl Cnc Vertical Lathe Machine With Live Tooling Siemens Controller
Brand: Henan Baishun Machinery Equipment Co., Ltd.
SKU: CK5112
Price: 96,300.00 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: CE，ISO

Model Number: CK5112

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                cnc vertical lathe with live tooling, cnc vtl, cnc vertical lathe manufacturers


Max. Length Of Workpiece (mm):	2000	Machining Capacity:	Medium Duty
Spindle Bore(mm):	105	No. Of Spindles:	Single
Positioning Accuracy (mm):	±0.005	Dimension(LWH):	235023502700mm
Voltage:	380v	CNC Control System:	GSK
Toolpost Brand:	Hongda	Product Name:	Conventional Vertical Lathe Machine With Siemens Controller

Max. Length Of Workpiece (mm):	2000
Machining Capacity:	Medium Duty
Spindle Bore(mm):	105
No. Of Spindles:	Single
Positioning Accuracy (mm):	±0.005
Dimension(LWH):	235023502700mm
Voltage:	380v
CNC Control System:	GSK
Toolpost Brand:	Hongda
Product Name:	Conventional Vertical Lathe Machine With Siemens Controller

Vtl Cnc Vertical Lathe Machine With Live Tooling Siemens Controller

Product Description

Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe

Hot Sale Lathe Machine Cnc Machining Parts Cnc Wheel Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

Product Overview: The Vertical CNC Lathe, also known as a Vertical Turning Center, is a powerful machine used in metalworking to precisely and efficiently turn and cut metal components. With its vertical spindle that holds and rotates the workpiece, it has gained popularity in various manufacturing industries. It excels in the production of large and heavy components like gears, turbines, and aerospace parts, especially those with a high aspect ratio.

Moreover, the CNC vertical lathe is equipped with advanced automation features, allowing for minimal human intervention. It can be programmed to perform a wide range of machining operations, including turning, drilling, boring, threading, and milling. Offering versatility, high precision, and automation, the CNC vertical lathe has become an indispensable tool in modern manufacturing processes.

The CNC vertical lathe is a top-performing machine with a wide range of capabilities and high productivity. Our company has developed a cutting-edge machine tool that seamlessly integrates animatronics and hydraulics, drawing inspiration from advanced design and manufacturing techniques, and incorporating our rich corporate culture. This allows us to deliver world-class products to both domestic and international customers.

To ensure high precision and durability, we have employed integral casting and a thermally balanced structure for the table. The main shaft bearing utilizes a high-precision double row cylindrical roller bearing, and the table guideway is optimized for smooth operation.

Please note that we are constantly striving to enhance our products, and therefore, the information provided may be subject to change without prior notice.

Machine parameter

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5120A	CK5126A
Max. turning diameter of vertical tool rest (mm)	800	1200	1200	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1800	2200
Max. height of work-piece (mm)	800	1000	1000	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	3.2-100	2.2-70
Feeding series	Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30
