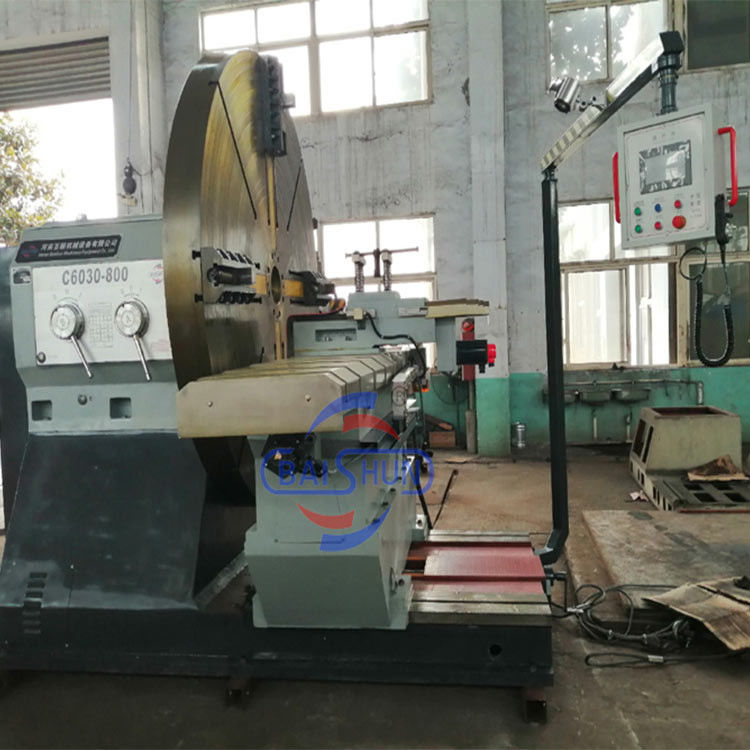

Big Face Plate Lathe Machine Facing Machine Tools Flange Processing

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO9001:2008

Model Number: C6016

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Exported standard package
facing lathe machine

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 80 Set/Sets per Month

Get Best Price
Highlight:

face plate lathe machine

,

Big face plate lathe

,

Facing Machine Tools

Type:
Floor Type
Voltage:
3 Phase 380V 50HZ
Dimension(L*W*H):
4200*2200*1950mm
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Product Name:
Facing Lathe Machine
Load Capable Table:
3T
Main Motor Power:
11KW
HeadStock Base:
6
Weight:
6000kg
Max. Swing Diameter:
2000mm
Type:
Floor Type
Voltage:
3 Phase 380V 50HZ
Dimension(L*W*H):
4200*2200*1950mm
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Product Name:
Facing Lathe Machine
Load Capable Table:
3T
Main Motor Power:
11KW
HeadStock Base:
6
Weight:
6000kg
Max. Swing Diameter:
2000mm
Big Face Plate Lathe Machine Facing Machine Tools Flange Processing
Flang Processing Big Face Plate Lathe Facing Machine Tools Face Lathe Machine
Description of Facing Machine Tools:

This Facing Machine Tools or landing lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.



1. Facing Machine Tools is  floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.

2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.

3. All the gears are precision grounded, with long life and low noise;

4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.



 Technical Parameters:

Item Unit C6010 C6016 C6020 C6025 C6030
Chuck diameter mm 800 1400 1600 2000 2500
Max. turning diameter mm 1000 1600 2000 2500 3000
Max. length of work pieces mm 200 400 600 600 600
Max weight of workpiece T 1 2 3 3 5
Power of main motor kW 15 11 15 15 22
Spindle speed r/min 8-120 16-128 12-94 12-94 4-40
Spindle diameter mm 190 200 200 200 300
Feed way of tool rest Infinitely variable frequency
Horizontal stroke mm 320 320 320 320 320
Longitudinal travel mm 500 800 900 1400 1400
Weight T 4 5 8 10 17



Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 0Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 1Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 2Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 3Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 4Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 5Big Face Plate Lathe Machine  Facing Machine Tools Flange Processing 6
