C6016 flange lathe metal lathe facing digital readout floor facing cutting machine

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C6016

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 80 Set/Sets per Month

Get Best Price
Highlight:

C6016

,

metal lathe facing

,

flange lathe

Max. Length Of Workpiece (mm):
400 Mm
Machining Capacity:
Heavy Duty
Spindle Bore(mm):
190
Max. Turned Length (mm):
2500 Mm
Type:
Floor Type
Year:
100% Brand New
Voltage:
3 Phase 380V 50HZ
Dimension(L*W*H):
4200*2200*1950mm
Weight (KG):
6000 KG
Name:
C6016 Digital Readout Floor Facing Lathe Cutting Machine For Flange
Weight:
6000kg
Max. Swing Diameter:
1600mm
Power:
380V, 50hZ. 3Phase
Power (kW):
11
Max. Length Of Workpiece (mm):
400 Mm
Machining Capacity:
Heavy Duty
Spindle Bore(mm):
190
Max. Turned Length (mm):
2500 Mm
Type:
Floor Type
Year:
100% Brand New
Voltage:
3 Phase 380V 50HZ
Dimension(L*W*H):
4200*2200*1950mm
Weight (KG):
6000 KG
Name:
C6016 Digital Readout Floor Facing Lathe Cutting Machine For Flange
Weight:
6000kg
Max. Swing Diameter:
1600mm
Power:
380V, 50hZ. 3Phase
Power (kW):
11
C6016 flange lathe metal lathe facing digital readout floor facing cutting machine

C6016 digital readout floor facing lathe cutting machine for flange

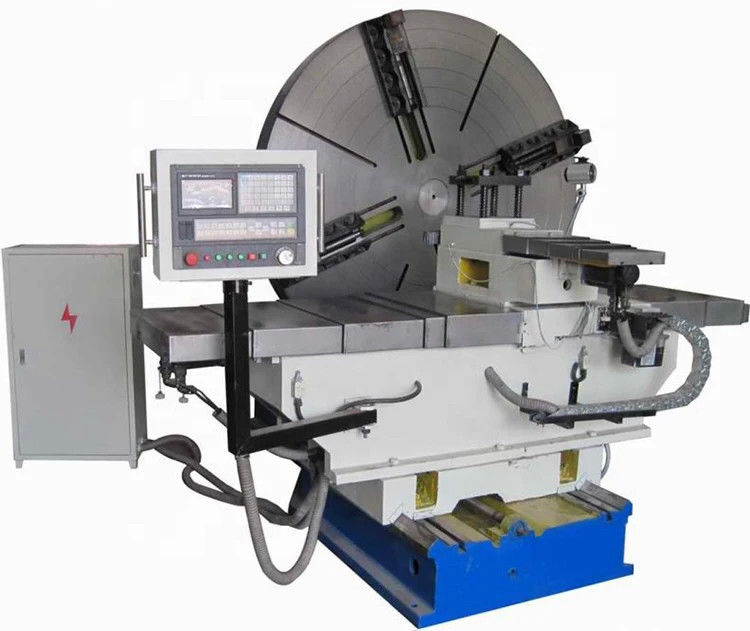

flange processing facing lathe machine real pictures for your reference:



C6016 flange lathe metal lathe facing digital readout floor facing cutting machine 0C6016 flange lathe metal lathe facing digital readout floor facing cutting machine 1C6016 flange lathe metal lathe facing digital readout floor facing cutting machine 2















Flange processing facing lathe machine introduction:

This Engine Lathe or landing lathe is mainly used to process large, medium plate and cylinder workpiece such as flange, valve, gland, plate, motor cover, tire mold, etc.
This lathe can be widely applied in the production field of energy, transportation, oil, chemical industry, mining, railway, car making and so on.

1. Engine Lathe is  floor face lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel, forgings and non-ferrous disc type rotating body metal parts machining.

2. To complete the cylindrical, conical, end, grooving and other machining processes, can meet part of the rough and fine turning.

3. All the gears are precision grounded, with long life and low noise;

4. All guideways are quenched and hardend, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed.


Technical Parameters:

Item Unit C6010 C6016 C6020 C6025 C6030
Chuck diameter mm 800 1400 1600 2000 2500
Max. turning diameter mm 1000 1600 2000 2500 3000
Max. length of work pieces mm 200 400 600 600 600
Max weight of workpiece T 1 2 3 3 5
Power of main motor kW 15 11 15 15 22
Spindle speed r/min 8-120 16-128 12-94 12-94 4-40
Spindle diameter mm 190 200 200 200 300
Feed way of tool rest Infinitely variable frequency
Horizontal stroke mm 320 320 320 320 320
Longitudinal travel mm 500 800 900 1400 1400
Weight T 4 5 8 10 17
