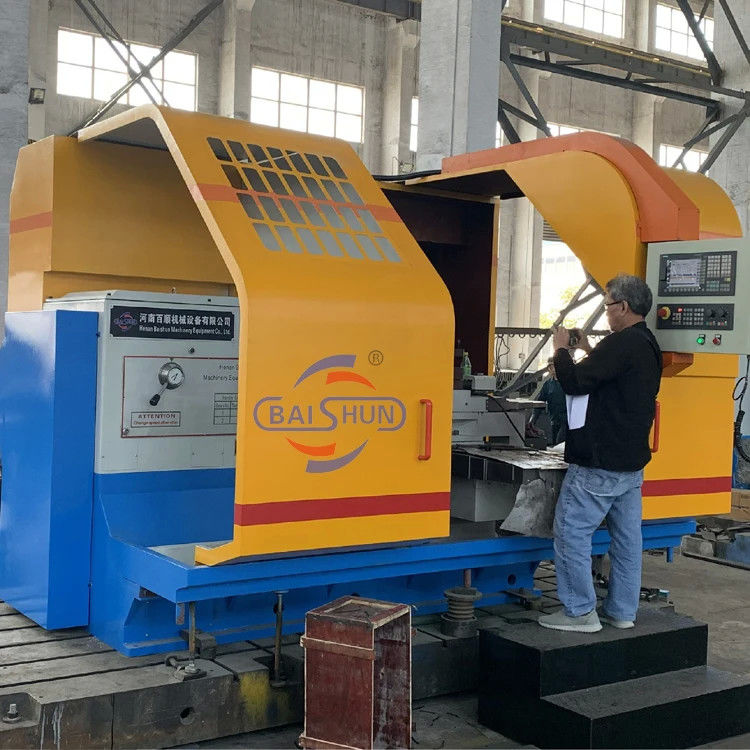

CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: C6030

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case or negotiation with customer.

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

CNC Face Lathe Machine

,

Face Lathe Machine High Precision

,

Auto Wheel Turning Lathe

Condition:
New
Max. Length Of Workpiece (mm):
1000mm
Range Of Spindle Speed(r.p.m):
4 - 40 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
190
Max. Turned Length (mm):
3000 Mm
Type:
Horizontal
Spindle Motor Power(kW):
15
Year:
2023
Voltage:
380V
Weight (KG):
17000 KG
Warranty:
1 Year
Key Selling Points:
Competitive Price
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works
Showroom Location:
United Kingdom, Germany, Indonesia, Russia, UAE, Australia
Marketing Type:
Hot Product 2023
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Gear, Motor
Product Name:
Auto Wheel Turning Lathe CNC Facing Lathe
Machine Type:
C6030
Max. Turning Diameter:
3000mm
Max. Length Of Work Piece:
600mm
Chuck Diameter:
2500mm
Keyword:
Facing Lathe
Function:
Metal Turning
Automatic Grade:
Manual Or CNC
After Warranty Service:
Provided
Color:
Customized
Port:
Qingdao Port, Shanghai Port, Tianjin Port Or Main Sea Port Of China.
Condition:
New
Max. Length Of Workpiece (mm):
1000mm
Range Of Spindle Speed(r.p.m):
4 - 40 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
190
Max. Turned Length (mm):
3000 Mm
Type:
Horizontal
Spindle Motor Power(kW):
15
Year:
2023
Voltage:
380V
Weight (KG):
17000 KG
Warranty:
1 Year
Key Selling Points:
Competitive Price
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works
Showroom Location:
United Kingdom, Germany, Indonesia, Russia, UAE, Australia
Marketing Type:
Hot Product 2023
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Gear, Motor
Product Name:
Auto Wheel Turning Lathe CNC Facing Lathe
Machine Type:
C6030
Max. Turning Diameter:
3000mm
Max. Length Of Work Piece:
600mm
Chuck Diameter:
2500mm
Keyword:
Facing Lathe
Function:
Metal Turning
Automatic Grade:
Manual Or CNC
After Warranty Service:
Provided
Color:
Customized
Port:
Qingdao Port, Shanghai Port, Tianjin Port Or Main Sea Port Of China.
CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe

High Precision Auto Wheel Turning Lathe CNC Face Lathe Machine

Product Description

The face lathe include a large chuck or faceplate to hold the flange securely during machining, a range of cutting tools to accommodate different sizes and shapes of work piece, and controls to adjust the depth and angle of the cuts as needed, and is especially suitable for low speed high load cutting . Featuring high carrying capacity , high rigidity , optimal appearance design and easy operation , it mainly be used in turning neutral mechanical parts with a relatively large diameter , such as tire mold large diameter flange tube plate , turbine parts , end enclosure , etc . And widely applied in chemical engineering, heavy duty machining , automobile manufacturing, mining and railway equipment and aviation parts processing and manufacturing, Normally there are conventional type and CNC type for Choice.



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 0



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 1



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 2



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 3



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 4



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 5



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 6



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 7



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 8



Machine Parameter



Item

Unit

C6010

C6016

C6020

C6025

C6030

Max. turning diameter

mm

1000

1600

2000

2500

3000

Chuck diameter

mm

800

1400

1600

2000

2500

Max. length of work pieces

mm

200

400

600

600

600

Max weight of workpiece

T

1

2

3

3

5

Power of main motor

kW

11

11

15

15

22

Spindle speed

r/min

8-120

16-128

12-94

12-94

4-40

Spindle diameter

mm

190

200

200

200

300

Feed way of tool rest

Infinitely variable frequency

Horizontal stroke

mm

320

320

320

320

320

Longitudinal travel

mm

500

800

900

1400

1400

Weight

T

4

5

8

10

17



Company Introduction

Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer,  which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.

Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 9





CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 10



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 11



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 12



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 13



CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 14





Packing&delivery

CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 15CNC Face Lathe Machine High Precision Auto Wheel Turning Lathe 16

Our Services

Our Services

We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.



Our advantage:

1: With CE, ISO certification.

2: Full production tracking.

3: Professional engineers can guarantee the highest quality.

4: More suppliers as alternatives, guarantee your lowest and competitive price.

5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.

6: OEM production is available, to meet customer needs

7. Low MOQ (1 unit) is available.

8. 24 hours technical support.



Warranty period:
During warranty period (one year), if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact us, we will supply our best service to you as usual.
1. Technical support online service provided .
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 24 hours
