CW6180B CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO9001:2008

Model Number: CK6132x1000MM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

CK6163

,

bench lathe machine

,

flatbed cnc

Max. Spindle Speed (r.p.m):
100~2500r/min
Dimension(L*W*H):
2300x1100x1650mm
Voltage:
380V/50Hz
Name:
CJK6132 CNC Lathe Machine
Swing Over Bed:
320mm
Swing Over Carriage:
130mm
Distance Between Centres:
500mm
Spindle Bore:
38mm
Electrical Toolpost:
4 Stations
Motor Power:
3KW
Gross Weight:
1000KGS
Max. Swing Diameter:
320mm
Weight:
1000KGS
Power:
3KW
Max. Spindle Speed (r.p.m):
100~2500r/min
Dimension(L*W*H):
2300x1100x1650mm
Voltage:
380V/50Hz
Name:
CJK6132 CNC Lathe Machine
Swing Over Bed:
320mm
Swing Over Carriage:
130mm
Distance Between Centres:
500mm
Spindle Bore:
38mm
Electrical Toolpost:
4 Stations
Motor Power:
3KW
Gross Weight:
1000KGS
Max. Swing Diameter:
320mm
Weight:
1000KGS
Power:
3KW
CW6180B CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc
Product Description

CK6163*2000 High Precision Bench Type Mini Flat Bed Lathe Machine



This series of machines is a well-established and designed with a compact design, attractive appearance, high spindle torque, strong rigidity, stable and reliable performance, and excellent accuracy retention.

The headstock has been optimized for turning disc and shaft parts. It can handle straight, curved, metric, and inch threads, as well as multi-threaded operations. It is suitable for processing complex-shaped discs and shafts with high precision requirements.



1.Spindle bearings adopts domestic famous-brand company products;
2.The bed is adopted high strength cast iron, after 3 time tempering, so that it has high rigidity and vibration resistance;
3.With electrical turret, it can achieve high positioning, fast speed for toolchange and high performance;
4.With feeding motor and lead screw for type of direct connection, it can assure the machining precision and positioning accuracy.
5.Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.



Product Description:

Technical items
Model
CW6163
/
CW6263
CW6180Q
/
CW6280Q
CW6180B
/
CW6280B
CW61110Q /
CW62110Q
CW61125Q
/
CW62125Q
CW61125B CW61160B CW61160 CW61200 CW61250
Swing diameter over bed 630mm 800mm 800mm 1100mm 1250mm 1250mm 1600mm 1600mm 2000mm 2500mm
Swing diameter over carriage/cross slide 350mm 480mm 480mm 800mm 920mm 860mm 1200mm 1200mm 1600mm 2100mm
Swing diameter over gap/saddle CW6163-
No gap
CW6180Q-
No gap
CW6180B-
No gap
CW61110Q--
No gap
CW61125Q--No gap
No gap
CW6263-
800mm
CW6280Q-
1000mm
CW6280B-
1000mm
CW62110Q--
1300mm
CW62125Q--1500mm
Max. Length of workpiece 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm
Max. Weight of workpiece 2 tons 2 tons 2.5 tons 2.5 tons 2.5 tons 6 tons 6 tons 16 tons 16 tons 16 tons
Spindle hole diameter 105mm 105mm 105mm 105mm 105mm 130mm 130mm 130mm 130mm 130mm
Guide rail width 550mm 550mm 600mm 600mm 600mm 755mm 755mm 1100mm 1100mm 1100mm
Main motor power 11 kw 11 kw 11 kw 11 kw 11 kw 22 kw 22 kw 22 kw 22 kw 22 kw



Product Features:
 (1)
The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
(2) Standard tool-post is 4-stations, also 6-stations tool-post can be optional selection
Spindle speed changed by frequency
(3)Induction harden bed-way. Bed saddle with plastic sticker can improve the accuracy and service life of the machine
(4)The spindle is supported by imported precision bearings
(5)Normally machine is provided with 3-jaw chuck. According to customer’s optional selection, hydraulic chuck or pneumatic chuck also can be supplied.



Standard accessories

1.3-jaw chuck and tool-post wrench

2.Allen wrench

3.Electrical tool post 4 station

4.Cooling system

5.Manual lubricating system

6.Working lamp

7.GSK Siemens CNC controller system

8.Iron steel stand



Optional accessories

1.6 station tool-post

2.Pneumatic chuck

3.Hydraulic chuck

4.Bar auto-feeding device

4.Controller system GSK, Fanuc

5.Auto-lubricating system

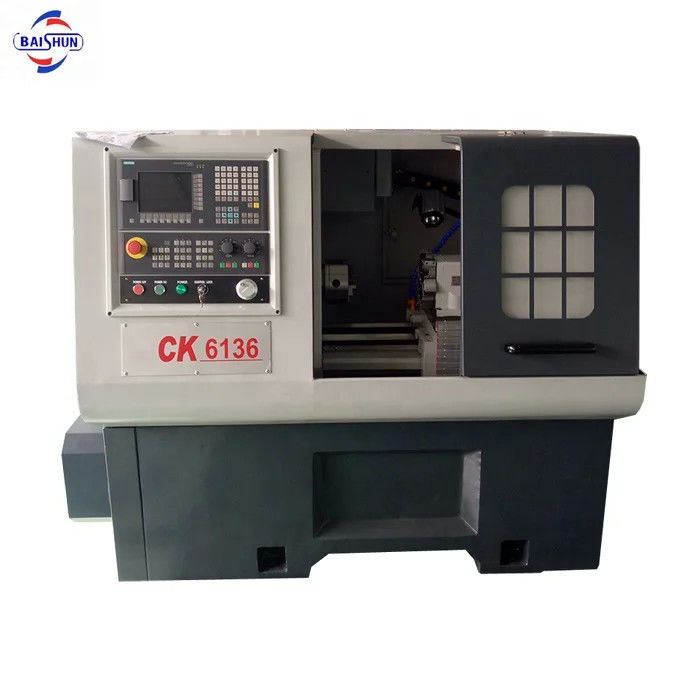

Product pictures:

CW6180B  CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc 0CW6180B  CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc 1CW6180B  CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc 2CW6180B  CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc 3CW6180B  CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc 4CW6180B  CW6180Q CW6263 CK6163*2000 Bench Lathe Machine Mini Flatbed Cnc 5

Our Services



1. Inquiry and consulting support.
2. Sample testing support.
3. Visit our company
4. Training how to install and use the machine.
5. Engineers available to service machinery overseas.
6. The warranty time is 12 months, the spare parts will be offered with factory cost price.
