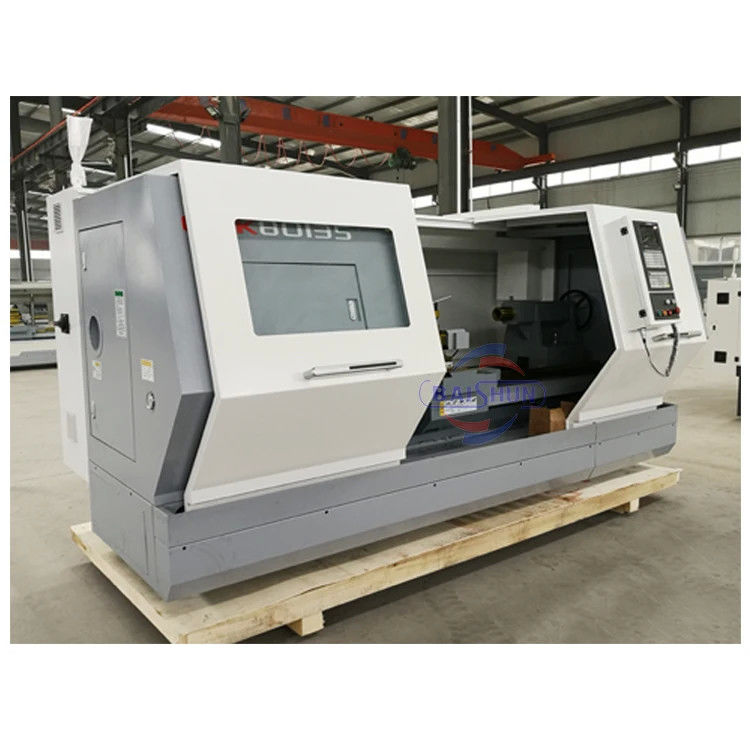

CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: CK6180X3000mm

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

CK6180/3000

,

cnc turning lathe machine

,

cnc lathe turning machine

Max. Length Of Workpiece (mm):
3000
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
850 R.p.m
Machining Capacity:
Light Duty
Spindle Bore(mm):
100
Width Of Bed (mm):
550 Mm
Spindle Motor Power(kW):
11
No. Of Spindles:
Single
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Travel (Z Axis)(mm):
1850 Mm
Positioning Accuracy (mm):
0.03
Repeatability (X/Y/Z) (mm):
0.012
Dimension(L*W*H):
4710*1550*1900mm
Voltage:
380V/50Hz
Tool Post Stations:
6, 4
Weight (KG):
5000
Product Name:
China Good Price CK6180 Cnc Turning Lathe
Max. Swing Diameter (mm):
800
Automatic Grade:
Automatic
Swing Over Bed:
800mm
Swing Over Carriage:
480mm
Distance Between Centres:
3000mm
Motor Power:
11KW
Max. Length Of Workpiece (mm):
3000
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
850 R.p.m
Machining Capacity:
Light Duty
Spindle Bore(mm):
100
Width Of Bed (mm):
550 Mm
Spindle Motor Power(kW):
11
No. Of Spindles:
Single
Number Of Axes:
2
Travel (X Axis)(mm):
500 Mm
Travel (Z Axis)(mm):
1850 Mm
Positioning Accuracy (mm):
0.03
Repeatability (X/Y/Z) (mm):
0.012
Dimension(L*W*H):
4710*1550*1900mm
Voltage:
380V/50Hz
Tool Post Stations:
6, 4
Weight (KG):
5000
Product Name:
China Good Price CK6180 Cnc Turning Lathe
Max. Swing Diameter (mm):
800
Automatic Grade:
Automatic
Swing Over Bed:
800mm
Swing Over Carriage:
480mm
Distance Between Centres:
3000mm
Motor Power:
11KW
CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed
Product Description

CK6180 Cnc Turning Lathe Horizontal Machine Metal Processing Flat Bed Cnc Lathe Machine



Both the machine tool guide rail and the sliding saddle guide rail are made of special material hard guide rails. They are extremely hard, wear-resistant, durable, and maintain good machining accuracy after high-frequency quenching.

The CNC system uses the GSK980TC3 and GSK system servo drive. It also adopts domestically renowned and high-quality ball screws and high-precision screw bearings.

The spindle uses high-precision spindle bearings that are precisely assembled and dynamically balanced, ensuring high precision, low noise, and strong rigidity.



CNC lathe machine
1.Max swing dia:800mm
2.Spindle bore: 105mm
3. Max length:3000mm
4. GSK, KND, SIMENS, FANUC SYSTEM



Model

CK6180/3000

Swing over bed

800mm

Swing over carriage

480mm

Distance between centers

3000mm

Taper of barrel

M.T.120

Spindle hole

105mm

Range of speed(variable)

70~850r/min

Feed motor power(X/Z)

6N.M/12N.M

X rapid traverse

4m/min

Z rapid traverse

6m/min

Max. travel of X axis

500mm

Max. travel of Z axis

2850mm

Motor power

11Kw

Tool-post

4 stations or 6 stations

Max.tool size

25x25mm

Min input unit

0.001mm

Repeatability accuracy(X/Y)

0.012mm

Barrel travel of tailstock

250mm

Barrel taper of tailstock

M.T.3

Packing size(L x W x H)

6300x2000x1650mm

N/G weight

5000kg



Features:
 (1)
The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
(2) Standard tool-post is 4-stations, also 6-stations tool-post can be optional selection
Spindle speed changed by frequency
(3)Induction harden bed-way. Bed saddle with plastic sticker can improve the accuracy and service life of the machine
(4)The spindle is supported by imported precision bearings
(5)Normally machine is provided with 3-jaw chuck. According to customer’s optional selection, hydraulic chuck or pneumatic chuck also can be supplied.

CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 0



CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 1CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 2CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 3CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 4CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 5CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 6CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 7CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 8



CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 9

CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 10

CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 11

CK6180/3000 Cnc Turning Lathe Machine Horizontal Metal Processing Flat Bed 12

Our Services



(A)We will delivery the goods as soon as possible

(B)Goods will be packed according to the customer needs

(C)Long term strong and steady supply ability

(D)The final price is up to your order quantity and product quality

(E)OEM is available

(F)Good after-sales service
