CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ISO

Model Number: CK61125

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

CK61125

,

flat bed cnc lathe

,

cnc lathe machine automatic

Max. Length Of Workpiece (mm):
3000 Mm
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
835 R.p.m
Machining Capacity:
Heavy Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
700 Mm
Spindle Motor Power(kW):
18.5
No. Of Spindles:
Twin
Max. Turned Length (mm):
2850
Number Of Axes:
2
Travel (X Axis)(mm):
625 Mm
Travel (Z Axis)(mm):
2850 Mm
Positioning Accuracy (mm):
0.02 Mm
Repeatability (X/Y/Z) (mm):
0.01
Voltage:
380V
CNC Control System:
GSK
Tool Post Stations:
6, 4
Weight (KG):
4000
Name:
CK61125 Horizontal Automatic Turning Machine Flat Bed Cnc Lathe
Width Of Bed:
700mm
Power (kW):
18.5
Max. Swing Diameter (mm):
1250
Max. Length Of Workpiece (mm):
3000 Mm
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
835 R.p.m
Machining Capacity:
Heavy Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
700 Mm
Spindle Motor Power(kW):
18.5
No. Of Spindles:
Twin
Max. Turned Length (mm):
2850
Number Of Axes:
2
Travel (X Axis)(mm):
625 Mm
Travel (Z Axis)(mm):
2850 Mm
Positioning Accuracy (mm):
0.02 Mm
Repeatability (X/Y/Z) (mm):
0.01
Voltage:
380V
CNC Control System:
GSK
Tool Post Stations:
6, 4
Weight (KG):
4000
Name:
CK61125 Horizontal Automatic Turning Machine Flat Bed Cnc Lathe
Width Of Bed:
700mm
Power (kW):
18.5
Max. Swing Diameter (mm):
1250
CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine

CK61125 Horizontal Automatic Turning Machine Flat Bed Cnc Lathe Machine



Horizontal metal turning CNC lathe basic machine introduction:

1.Spindle bearings adopts domestic famous-brand company products;
2.The bed is adopted high strength cast iron, after 3 time tempering, so that it has high rigidity and vibration resistance;
3.With electrical turret, it can achieve high positioning, fast speed for toolchange and high performance;
4.With feeding motor and leadscrew for type of direct connection, it can assure the machining precision and positioning accuracy.
5.Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
6.Headstock adopts oil bath circulating lubrication to reduce thermal deformation;
7.Frond end of the spindle adopts three-supporting structure of two-way angular in touch with the ball bearing to improve its accuracy and enhance its rigidity;
8.Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
9.Complete closed cover can protect the iron scraps splashing out.

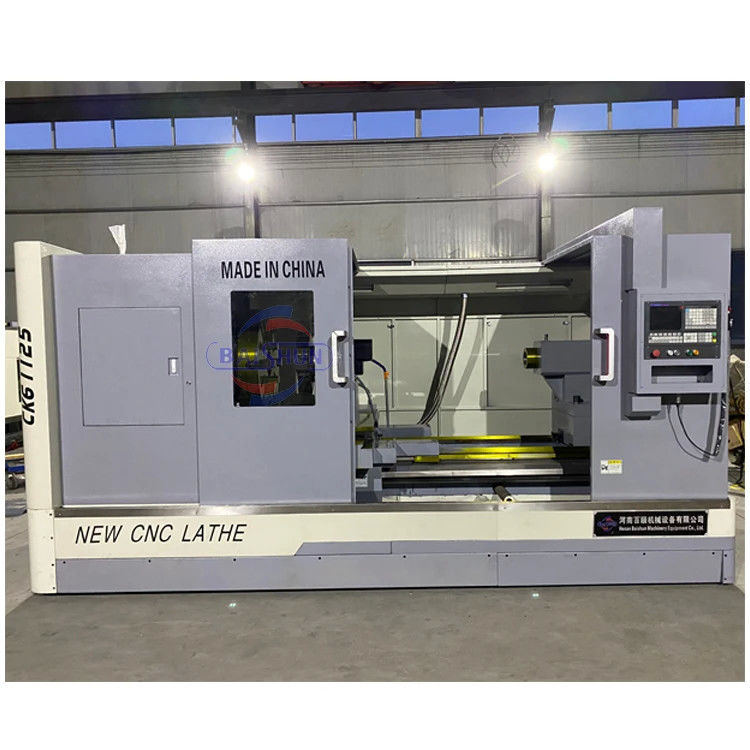

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 0

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 1

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 2

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 3

Specification of metal turning lathe:

Model CK61125 CK6163 CK6180
Max.swing diameter over bed  1250mm 630mm 800mm
Max.swing diameter over carriage  860m 350mm 480mm
Max.workpiece length 1000/1500/2000 1000/1500/2000 1000/1500/2000
Effective turning length 850/1350/1850 850/1350/1850 850/1350/1850
Bed width 700mm 500mm 550mm/600mm
Main transmission system 4 gear stepless 3 gear stepless 3 gear stepless
Spindle speed range

30-84

300-835

53-150

125-350

70-260
25-100
200-850
70-260
25-100
220-850
Spindle bore diameter 130mm 100mm 105mm
Spindle taper Metric 90 1:20 Metric 120 1:20 Metric 120 1:20
Max.travel of tool post

X 625mm

Z 900/1400/1900mm

X 430mm

Z 900/1400/1900mm

X 500

Z 900/1400/1900mm

Quickly speed of tool post

X 4000mm/min

Z 6000mm/min

X 4000mm/min

Z 6000mm/min

X 4000mm/min

Z 6000mm/min

Positional accuracy

X 0.02mm

Z 0.03mm

X 0.03mm

Z 0.032mm

X 0.03mm

Z 0.032mm

Repeated positional accuracy

X 0.012mm

Z 0.016mm

X 0.012mm

Z 0.013mm

X 0.012mm

Z 0.013mm

Processing accuracy

IT6-IT7

IT6-IT7

IT6-IT7

Surface roughness

Ra1.6

Ra1.6

Ra1.6

Tailstock diameter

250mm

100mm

100mm

Tailstock travel

130mm

250mm

250mm

Taper of tailstock quill

Morse 8

Morse 5

Morse 5

Motor power

18.5kw

11kw

11kw



Factory of cnc metal turning lathe:

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 4

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 5

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 6



CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 7

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 8

CK61125 Flat Bed Cnc Lathe Horizontal Automatic Turning Machine 9



Our warranty and services about lathe:
Time limitation for warranty period and response for a period of 12 months from the date of B/L, any defective or problem that is not caused by mis-operation will be repaired or replaced free of charge by the supplier.

1. Any inquiries will be replied within 12 hours

2. Professional manufacturer, Welcome to visit our factory at any time

3. OEM services are welcomed, and we can help you to print your logo, company information etc on our products and package .

4. High quality, fashion designs, reasonable & competitive price and fast lead time

5. After-sale service

6. Faster delivery

7. Protection of your sales area, ideas of design and all your private information

You can pay for the order via: T/T, western union, L/C at sight.

Our ultimate goal is your satisfaction!
