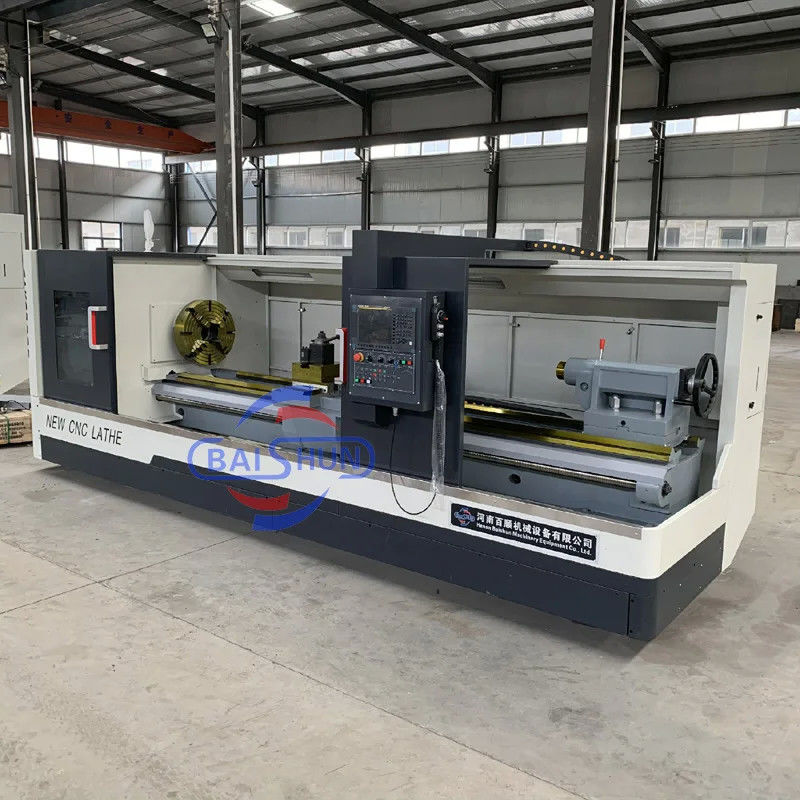

Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: CK6140

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package, or as customers' requirement.

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

cnc lathe machine fanuc control

,

fanuc cnc lathe machine

,

heavy duty cnc lathe machine

Max. Length Of Workpiece (mm):
3000
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
1600 R.p.m
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
300
Spindle Bore(mm):
52
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Number Of Axes:
2
Travel (X Axis)(mm):
260 Mm
Travel (Z Axis)(mm):
850 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.006
Dimension(L*W*H):
2550*1550*1700mm
Tool Post Stations:
8, 6, 4
Weight (KG):
2800
Core Components:
Motor, Gear
Product Name:
Automatic CNC Machine Lathe
Turret Type:
4/6/8 Station Turret
X/Z Rapid Traverse:
4/6m/min
Tail Stock Center Travel:
150mm
Spindle Speed Ranges:
100~1600r/min
Max. Length Of Workpiece (mm):
3000
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
1600 R.p.m
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
300
Spindle Bore(mm):
52
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Number Of Axes:
2
Travel (X Axis)(mm):
260 Mm
Travel (Z Axis)(mm):
850 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.006
Dimension(L*W*H):
2550*1550*1700mm
Tool Post Stations:
8, 6, 4
Weight (KG):
2800
Core Components:
Motor, Gear
Product Name:
Automatic CNC Machine Lathe
Turret Type:
4/6/8 Station Turret
X/Z Rapid Traverse:
4/6m/min
Tail Stock Center Travel:
150mm
Spindle Speed Ranges:
100~1600r/min
Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed
Product Description



Fanuc Controller Flat Bed CNC Lathe Machine Automatic Metal Turning Lathe



The CNC lathe is a machine tool that is used for shaping and turning metal workpieces. It use a variety of cutting tools, such as drills, boring tools, and turning tools, to remove material from the workpiece. The machine is programmed using software that specifies the size and shape of the workpiece, as well as the cutting operations to be performed.



The workpiece is clamped in the spindle of the lathe, which rotates at high speed to create the cutting motion. As the workpiece rotates, the cutting tools move in precise patterns to remove material and shape the workpiece.



CNC lathes are highly precise and efficient machines that are used in a wide range of industries, including aerospace, automotive, and electronics manufacturing. They are capable of producing complex parts with tight tolerances and high accuracy, making them an essential tool for modern manufacturing.



1.With feeding motor and lead screw for type of direct connection, it can assure the machining precision and positioning accuracy.
2.Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
3.Headstock adopts oil bath circulating lubrication to reduce thermal deformation;
4.Frond end of the spindle adopts three-supporting structure of two-way angular in touch with the ball bearing to improve its accuracy and enhance its rigidity;
5.Gears in head stock and guide way are processed by quenching to ensure accurate transmission and high rigidity.



Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 0Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 1Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 2Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 3Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 4Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 5Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 6Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 7Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 8Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 9Heavy Duty Cnc Lathe Machine Fanuc Controller Flat Bed 10



Machine Parameter



Specifications

CK6140

CK6150

CK6161

CK6166

CK6180

Max. swing over bed

400mm

500mm

610mm

660mm

800mm

Max. workpiece length

750/1000/1500/2000/3000mm

Spindle taper

Mohs NO.6(MT6)[ Φ90 1:20(Type B)][ Φ113 1:20(Type C)]

Chuck size

C6[D8(Type B/C)]

Spindle bore dia.

Φ52mm/[Φ80mm(Type B)][Φ105mm(Type C)]

Range of spindle speeds 3 steps(Auto. Change gear)

Independent spindle:100~1600r/min
21-1500r/min(Ⅰ62-1500 Ⅱ66-500 Ⅲ21-150)

Tail stock center travel

150mm

Tail stock sleeve taper

MT5

Positioning accuracy

±0.015mm

Repositioning accuracy

±0.006mm

X/Z rapid traverse

4/6m/min

Spindle motor

7.5kw

11kw

Overall dimensions for750

2550*1550*1700mm

2550*1550*1900mm

Overall dimensions for1000

2750*1550*1700mm

2750*1550*1900mm

Overall dimensions for1500

3250*1550*1700mm

3250*1550*1900mm

Overall dimensions for2000

3700*1550*1700mm

3700*1550*1900mm

Overall dimensions for3000

4710*1550*1700mm

4710*1550*1900mm

G.W for750(kg)

2800

2900

2850

2900

3000

G.W for1000(kg)

2900

3000

3000

3050

3150

G.W for1500(kg)

3150

3200

3200

3250

3350

G.W for2000(kg)

3350

3400

3400

3450

3550

G.W for3000(kg)

4100

4200

4250

4300

4400

Company Introduction

Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer,  which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.

Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.
