Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: CK6150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package, or as customers' requirement.

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

cnc wheel lathe machine

,

Cnc Lathe Machine Heavy Duty

,

cnc and lathe machine

Max. Length Of Workpiece (mm):
3000
Max. Spindle Speed (r.p.m):
1600 R.p.m
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
300
Spindle Bore(mm):
52
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Max. Turned Length (mm):
2800
Number Of Axes:
2
Travel (X Axis)(mm):
260 Mm
Travel (Z Axis)(mm):
850 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.006
Dimension(L*W*H):
2550*1550*1700mm
Tool Post Stations:
8, 6, 4
Weight (KG):
2800
Product Name:
Heavy Duty Cnc Lathe Machine
Turret Type:
4/6/8 Station Turret
X/Z Rapid Traverse:
4/6m/min
Tail Stock Center Travel:
150mm
Spindle Speed Ranges:
100~1600r/min
Max. Length Of Workpiece (mm):
3000
Max. Spindle Speed (r.p.m):
1600 R.p.m
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
300
Spindle Bore(mm):
52
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Max. Turned Length (mm):
2800
Number Of Axes:
2
Travel (X Axis)(mm):
260 Mm
Travel (Z Axis)(mm):
850 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.006
Dimension(L*W*H):
2550*1550*1700mm
Tool Post Stations:
8, 6, 4
Weight (KG):
2800
Product Name:
Heavy Duty Cnc Lathe Machine
Turret Type:
4/6/8 Station Turret
X/Z Rapid Traverse:
4/6m/min
Tail Stock Center Travel:
150mm
Spindle Speed Ranges:
100~1600r/min

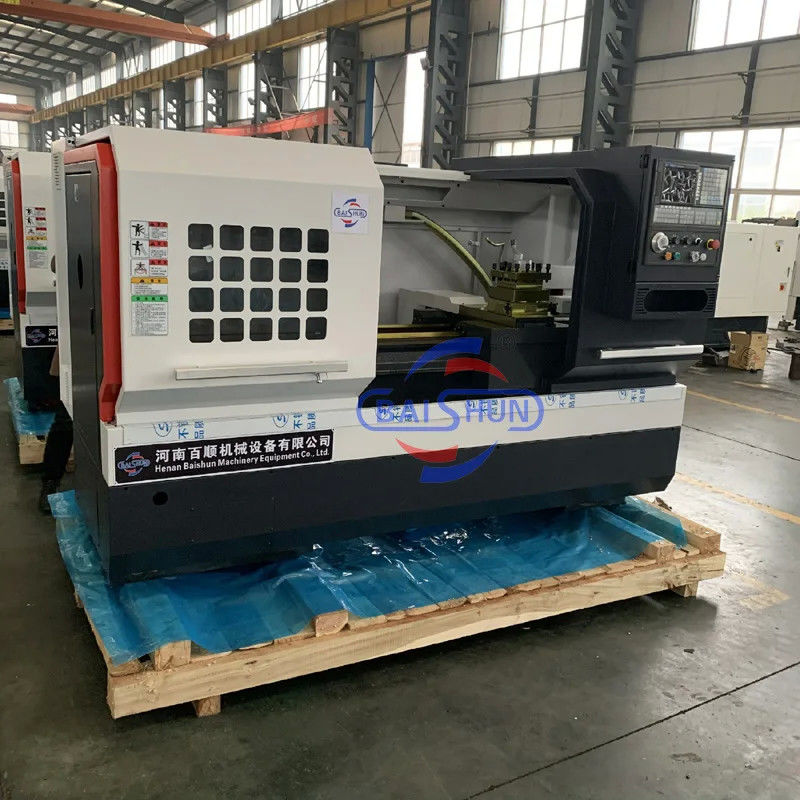

Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed
Product Description

Heavy Duty Low Cost Automatic Lathe Torno Flat Bed Cnc Lathe Machine



The CNC lathe is a machine tool that is used for shaping and turning metal workpieces. It use a variety of cutting tools, such as drills, boring tools, and turning tools, to remove material from the workpiece. The machine is programmed using software that specifies the size and shape of the workpiece, as well as the cutting operations to be performed.



Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing. Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.



CNC lathes are highly precise and efficient machines that are used in a wide range of industries, including aerospace, automotive, and electronics manufacturing. They are capable of producing complex parts with tight tolerances and high accuracy, making them an essential tool for modern manufacturing.

Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 0Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 1Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 2Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 3Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 4Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 5Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 6Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 7Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 8Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 9Cnc Wheel Lathe Machine Heavy Duty Automatic Torno Flat Bed 10



Machine Parameter



Specifications

CK6140

CK6150

CK6161

CK6166

CK6180

Max. swing over bed

400mm

500mm

610mm

660mm

800mm

Max. workpiece length

750/1000/1500/2000/3000mm

Spindle taper

Mohs NO.6(MT6)[ Φ90 1:20(Type B)][ Φ113 1:20(Type C)]

Chuck size

C6[D8(Type B/C)]

Spindle bore dia.

Φ52mm/[Φ80mm(Type B)][Φ105mm(Type C)]

Range of spindle speeds 3 steps(Auto. Change gear)

Independent spindle:100~1600r/min
21-1500r/min(Ⅰ62-1500 Ⅱ66-500 Ⅲ21-150)

Tail stock center travel

150mm

Tail stock sleeve taper

MT5

Positioning accuracy

±0.015mm

Repositioning accuracy

±0.006mm

X/Z rapid traverse

4/6m/min

Spindle motor

7.5kw

11kw

Overall dimensions for750

2550*1550*1700mm

2550*1550*1900mm

Overall dimensions for1000

2750*1550*1700mm

2750*1550*1900mm

Overall dimensions for1500

3250*1550*1700mm

3250*1550*1900mm

Overall dimensions for2000

3700*1550*1700mm

3700*1550*1900mm

Overall dimensions for3000

4710*1550*1700mm

4710*1550*1900mm

G.W for750(kg)

2800

2900

2850

2900

3000

G.W for1000(kg)

2900

3000

3000

3050

3150

G.W for1500(kg)

3150

3200

3200

3250

3350

G.W for2000(kg)

3350

3400

3400

3450

3550

G.W for3000(kg)

4100

4200

4250

4300

4400
