Home > products > Flat Bed CNC Lathe Machine > CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine

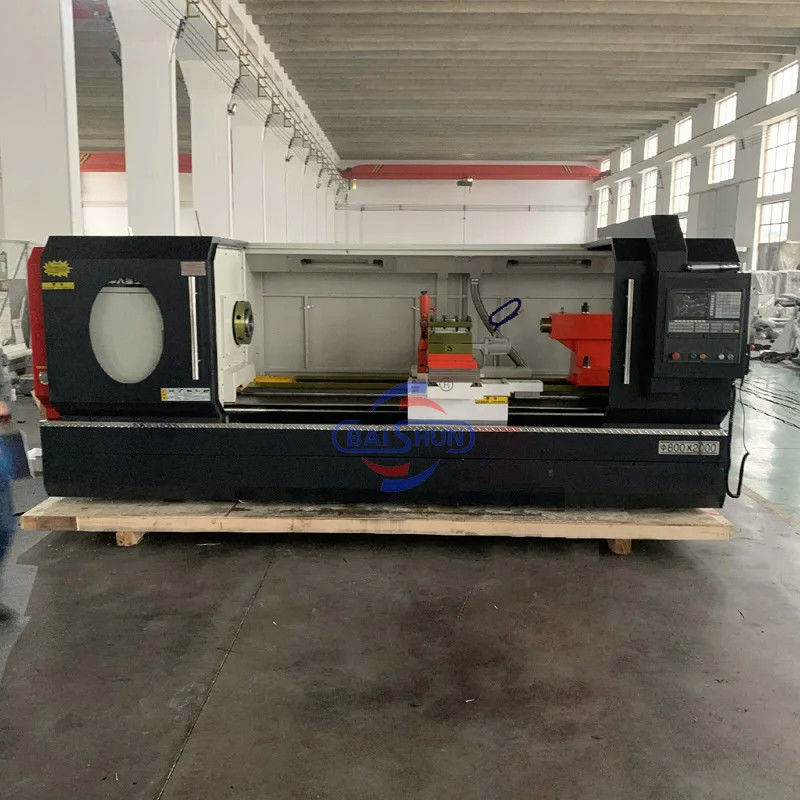

CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: CK6150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package, or as customers' requirement.

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 80 Set/Sets per Month

Get Best Price
Highlight:

CAK6140

,

automatic metal lathe machine

,

Flat bed CNC Lathe

Max. Length Of Workpiece (mm):
3000
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
1600 R.p.m
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
300
Spindle Bore(mm):
52
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Max. Turned Length (mm):
2800
Number Of Axes:
2
Travel (X Axis)(mm):
260 Mm
Travel (Z Axis)(mm):
850 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.006
Dimension(L*W*H):
2550*1550*1700mm
Tool Post Stations:
8, 6, 4
Weight (KG):
2800
Product Name:
Automatic Metal Lathe Machine
Turret Type:
4/6/8 Station Turret
X/Z Rapid Traverse:
4/6m/min
Tail Stock Center Travel:
150mm
Spindle Speed Ranges:
100~1600r/min
Max. Length Of Workpiece (mm):
3000
Structure:
Flat Bed Lathe
Max. Spindle Speed (r.p.m):
1600 R.p.m
Machining Capacity:
Heavy Duty
Max. Weight Of Workpiece(kg):
300
Spindle Bore(mm):
52
Width Of Bed (mm):
400 Mm
Spindle Motor Power(kW):
7.5
No. Of Spindles:
Single
Max. Turned Length (mm):
2800
Number Of Axes:
2
Travel (X Axis)(mm):
260 Mm
Travel (Z Axis)(mm):
850 Mm
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
±0.006
Dimension(L*W*H):
2550*1550*1700mm
Tool Post Stations:
8, 6, 4
Weight (KG):
2800
Product Name:
Automatic Metal Lathe Machine
Turret Type:
4/6/8 Station Turret
X/Z Rapid Traverse:
4/6m/min
Tail Stock Center Travel:
150mm
Spindle Speed Ranges:
100~1600r/min
CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine
Product Description



New horizontal CNC lathe CAK6140 lathe machine automatic metal lathe machine



The CNC lathe is a machine tool that is used for shaping and turning metal workpieces. It use a variety of cutting tools, such as drills, boring tools, and turning tools, to remove material from the workpiece. The machine is programmed using software that specifies the size and shape of the workpiece, as well as the cutting operations to be performed.



The numerical control system adopts GSK980TC3 and servo drive of Guangshu system, and adopts domestic famous and high-quality ball screw and high-precision screw bearing. The spindle adopts high-precision spindle bearing set and has been precisely assembled and dynamically balanced to ensure that the spindle has high precision, low noise and strong rigidity.



CNC lathes are highly precise and efficient machines that are used in a wide range of industries, including aerospace, automotive, and electronics manufacturing. They are capable of producing complex parts with tight tolerances and high accuracy, making them an essential tool for modern manufacturing.

CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 0CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 1CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 2CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 3CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 4CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 5CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 6CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 7CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 8CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 9CAK6140 Horizontal Flat Bed CNC Lathe Machine Automatic Metal Lathe Machine 10



Machine Parameter



Specifications

CK6140

CK6150

CK6161

CK6166

CK6180

Max. swing over bed

400mm

500mm

610mm

660mm

800mm

Max. workpiece length

750/1000/1500/2000/3000mm

Spindle taper

Mohs NO.6(MT6)[ Φ90 1:20(Type B)][ Φ113 1:20(Type C)]

Chuck size

C6[D8(Type B/C)]

Spindle bore dia.

Φ52mm/[Φ80mm(Type B)][Φ105mm(Type C)]

Range of spindle speeds 3 steps(Auto. Change gear)

Independent spindle:100~1600r/min
21-1500r/min(Ⅰ62-1500 Ⅱ66-500 Ⅲ21-150)

Tail stock center travel

150mm

Tail stock sleeve taper

MT5

Positioning accuracy

±0.015mm

Repositioning accuracy

±0.006mm

X/Z rapid traverse

4/6m/min

Spindle motor

7.5kw

11kw

Overall dimensions for750

2550*1550*1700mm

2550*1550*1900mm

Overall dimensions for1000

2750*1550*1700mm

2750*1550*1900mm

Overall dimensions for1500

3250*1550*1700mm

3250*1550*1900mm

Overall dimensions for2000

3700*1550*1700mm

3700*1550*1900mm

Overall dimensions for3000

4710*1550*1700mm

4710*1550*1900mm

G.W for750(kg)

2800

2900

2850

2900

3000

G.W for1000(kg)

2900

3000

3000

3050

3150

G.W for1500(kg)

3150

3200

3200

3250

3350

G.W for2000(kg)

3350

3400

3400

3450

3550

G.W for3000(kg)

4100

4200

4250

4300

4400
