Product Details
Place of Origin: Henan, China
Brand Name: BAISHUN
Certification: CE ISO
Model Number: CK6140
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case package, or as customers' requirement.
Delivery Time: 45 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 80 Set/Sets per Month
Condition: |
New |
Type: |
Horizontal |
Year: |
2023 |
Max. Length Of Workpiece (mm): |
3000 |
Structure: |
Flat Bed Lathe |
Max. Spindle Speed (r.p.m): |
1600 R.p.m |
Machining Capacity: |
Heavy Duty |
Max. Weight Of Workpiece(kg): |
300 |
Spindle Bore(mm): |
52 |
Width Of Bed (mm): |
400 Mm |
Spindle Motor Power(kW): |
7.5 |
No. Of Spindles: |
Single |
Number Of Axes: |
2 |
Travel (X Axis)(mm): |
260 Mm |
Travel (Z Axis)(mm): |
850 Mm |
Positioning Accuracy (mm): |
±0.015 |
Repeatability (X/Y/Z) (mm): |
±0.006 |
Dimension(L*W*H): |
2550*1550*1700mm |
Voltage: |
380V |
CNC Control System: |
GSK |
Toolpost Brand: |
Hongda |
Tool Post Stations: |
8, 6, 4 |
Weight (KG): |
2800 |
Warranty: |
1 Year |
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
Key Selling Points: |
Competitive Price |
Showroom Location: |
Italy, Brazil, Peru, Indonesia, India, Russia, Spain, Thailand, Chile |
Marketing Type: |
Hot Product 2023 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Gear |
Product Name: |
Factory Sale CNC Lathe Machine |
Key Word: |
Horizontal CNC Lathe Machine |
Usage: |
Metal Machining |
Machine Type: |
CK6140 |
Turret Type: |
4/6/8 Station Turret |
X/Z Rapid Traverse: |
4/6m/min |
Tail Stock Sleeve Taper: |
MT5 |
Tail Stock Center Travel: |
150mm |
Spindle Speed Ranges: |
100~1600r/min |
Port: |
Qingdao Port, China. Or Delivery As Customer's Requirement. |
Condition: |
New |
Type: |
Horizontal |
Year: |
2023 |
Max. Length Of Workpiece (mm): |
3000 |
Structure: |
Flat Bed Lathe |
Max. Spindle Speed (r.p.m): |
1600 R.p.m |
Machining Capacity: |
Heavy Duty |
Max. Weight Of Workpiece(kg): |
300 |
Spindle Bore(mm): |
52 |
Width Of Bed (mm): |
400 Mm |
Spindle Motor Power(kW): |
7.5 |
No. Of Spindles: |
Single |
Number Of Axes: |
2 |
Travel (X Axis)(mm): |
260 Mm |
Travel (Z Axis)(mm): |
850 Mm |
Positioning Accuracy (mm): |
±0.015 |
Repeatability (X/Y/Z) (mm): |
±0.006 |
Dimension(L*W*H): |
2550*1550*1700mm |
Voltage: |
380V |
CNC Control System: |
GSK |
Toolpost Brand: |
Hongda |
Tool Post Stations: |
8, 6, 4 |
Weight (KG): |
2800 |
Warranty: |
1 Year |
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
Key Selling Points: |
Competitive Price |
Showroom Location: |
Italy, Brazil, Peru, Indonesia, India, Russia, Spain, Thailand, Chile |
Marketing Type: |
Hot Product 2023 |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Motor, Gear |
Product Name: |
Factory Sale CNC Lathe Machine |
Key Word: |
Horizontal CNC Lathe Machine |
Usage: |
Metal Machining |
Machine Type: |
CK6140 |
Turret Type: |
4/6/8 Station Turret |
X/Z Rapid Traverse: |
4/6m/min |
Tail Stock Sleeve Taper: |
MT5 |
Tail Stock Center Travel: |
150mm |
Spindle Speed Ranges: |
100~1600r/min |
Port: |
Qingdao Port, China. Or Delivery As Customer's Requirement. |

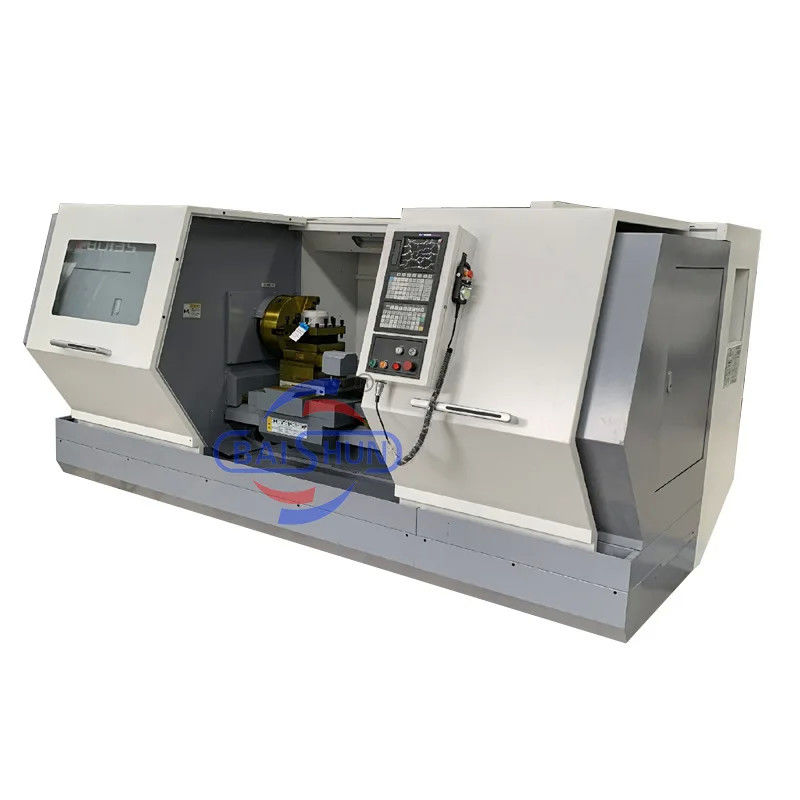

Automatic Metal Cnc Turning Machine Lathe Lathe Machine Flat Bed Lathe Machine
The CNC lathe is a machine tool that is used for shaping and turning metal workpieces. It use a variety of cutting tools, such as drills, boring tools, and turning tools, to remove material from the workpiece. The machine is programmed using software that specifies the size and shape of the workpiece, as well as the cutting operations to be performed.
The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.
CNC lathes are highly precise and efficient machines that are used in a wide range of industries, including aerospace, automotive, and electronics manufacturing. They are capable of producing complex parts with tight tolerances and high accuracy, making them an essential tool for modern manufacturing.
Specifications |
CK6140 |
CK6150 |
CK6161 |
CK6166 |
CK6180 |
Max. swing over bed |
400mm |
500mm |
610mm |
660mm |
800mm |
Max. workpiece length |
750/1000/1500/2000/3000mm |
||||
Spindle taper |
Mohs NO.6(MT6)[ Φ90 1:20(Type B)][ Φ113 1:20(Type C)] |
||||
Chuck size |
C6[D8(Type B/C)] |
||||
Spindle bore dia. |
Φ52mm/[Φ80mm(Type B)][Φ105mm(Type C)] |
||||
Range of spindle speeds 3 steps(Auto. Change gear) |
Independent spindle:100~1600r/min |
||||
Tail stock center travel |
150mm |
||||
Tail stock sleeve taper |
MT5 |
||||
Positioning accuracy |
±0.015mm |
||||
Repositioning accuracy |
±0.006mm |
||||
X/Z rapid traverse |
4/6m/min |
||||
Spindle motor |
7.5kw |
11kw |
|||
Overall dimensions for750 |
2550*1550*1700mm |
2550*1550*1900mm |
|||
Overall dimensions for1000 |
2750*1550*1700mm |
2750*1550*1900mm |
|||
Overall dimensions for1500 |
3250*1550*1700mm |
3250*1550*1900mm |
|||
Overall dimensions for2000 |
3700*1550*1700mm |
3700*1550*1900mm |
|||
Overall dimensions for3000 |
4710*1550*1700mm |
4710*1550*1900mm |
|||
G.W for750(kg) |
2800 |
2900 |
2850 |
2900 |
3000 |
G.W for1000(kg) |
2900 |
3000 |
3000 |
3050 |
3150 |
G.W for1500(kg) |
3150 |
3200 |
3200 |
3250 |
3350 |
G.W for2000(kg) |
3350 |
3400 |
3400 |
3450 |
3550 |
G.W for3000(kg) |
4100 |
4200 |
4250 |
4300 |
4400 |
Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.
Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.
Certificate:
Our Services
We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.
Our advantage:
1: With CE, ISO certification.
2: Full production tracking.
3: Professional engineers can guarantee the highest quality.
4: More suppliers as alternatives, guarantee your lowest and competitive price.
5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.
6: OEM production is available, to meet customer needs
7. Low MOQ (1 unit) is available.
8. 24 hours technical support.
Welcome to contact!!
