Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

cnc gear shaping machine

,

cnc gear machine

,

cnc gear hobbing

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor, Gear
Voltage:
380V/50Hz
Key Selling Points:
Automatic
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Showroom Location:
Peru, Indonesia, Mexico, Spain
Name:
Y3150 Spur Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor, Gear
Voltage:
380V/50Hz
Key Selling Points:
Automatic
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops
Showroom Location:
Peru, Indonesia, Mexico, Spain
Name:
Y3150 Spur Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG
Port:
Shanghai, Qingdao, Tianjin Port, China
Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel

Y3150E Gear Making Machine Spur worm Chain Wheel Gear Hobbing Machine

Product Description

Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece.





1. The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.

2.The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.

3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

4. According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.

5. Easy in operation and maintain.

6. Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.

7. Main gears are all precision grind, ensuring high precision and low noise.



Model Y3150 Y3180
Max.diameter of machining spur gears with external support 350mm 550m
Max. diameter of machining spur gears without external support 500mm 800mm
Dia. of worktable 520mm 650mm
Max. cutting module 8mm 10mm
Max. Processing width 250mm 300mm
Min.number of teeth processed 6 8
Max.vertical travel of tool seat 300mm 350mm
Min.turning angle 240° 240°
Max.tool loading dimensions(Dia.*L) 160*160mm 180*180mm
Dia. Of hob mandrel 22/27/32mm 22/27/32/40mm
Max. diameter of hob 160mm 180mm
Diameter of table hole 80mm 80mm
Hob spindle speed step 12 steps 12 steps
Hob spindle speed scope 50-275rpm 40-200rpm
Vertical feed range of the hob per revolution of the workpiece 0.24-4.25mm/r 0.4-4mm/r
Main motor power 4.75kw 5.5kw
Main motor speed 1430rpm 1500rpm
Machine weight 4500kg 5500kg
Machine tool dimensions (L*W*H) 2440*1370*1800mm 2752*1490*1870mm

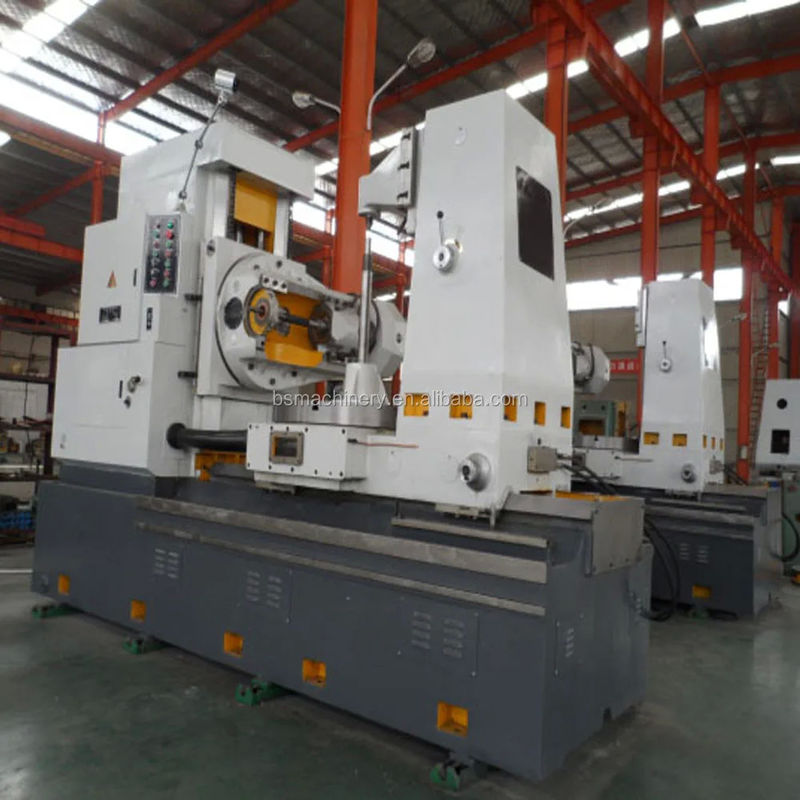

Product photos for your reference:

Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel 0Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel 1Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel 2Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel 3Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel 4Y3150E Cnc Gear Shaping Machine Spur Worm Chain Wheel 5



Our Services



1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
