Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical

Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO9001:2008

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Standard export package

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

vertical gear hobbing machine

,

Y3180 gear hobbing machine

,

vertical hobbing machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
YK3150 Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG, 4500KG
Warranty:
12 Months
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
YK3150 Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG, 4500KG
Warranty:
12 Months
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical

Fast Speed Vertical Y3180 Worm Gear Cutting New Mechanical Gear Hobbing Machine



Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece.



High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.



Product Description

 China Supplier YK3150 Gear Hobbing Machine for sales

 Technical Parameter

Unit

Y3150E

Max work piece diameter

mm

500

Max modulus

mm

8

Max machining width

mm

250

Min machining number of teeth



6

The largest machining spiral angle



+-45

Scope of main tool turning speed and grade

rpm/grade

40-250/9

Max turning angle of tool



240

Max tool loading dimensions(diameter* length)

mm

160 *160

Main motor

kw

6.45

Spindle taper



Morse 5

Max axial amount of movement of tool

mm

50

Distance between axis line of tool and worktable face

mm

235-535

Min distance between tool axis and worktable axis

mm

30

Distance between back rest under face and worktable face

mm

380-630

Machine size(length* width* height)

mm

2440*1370* 1800

Weight

kg

4500

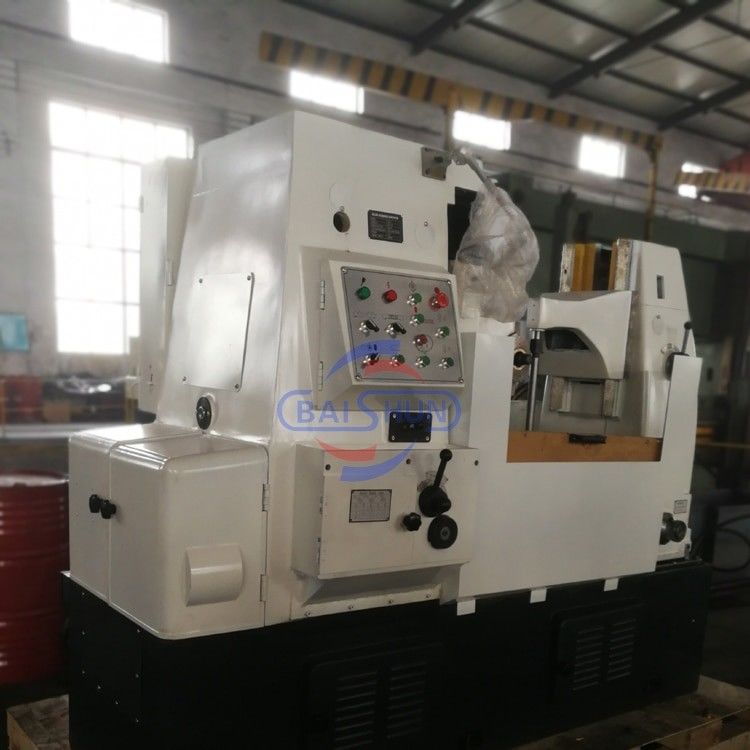

Product photos for your reference:

Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical 0Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical 1Y3180 Vertical Gear Hobbing Machine Worm Gear Cutting New Mechanical 2



Our Services



1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
