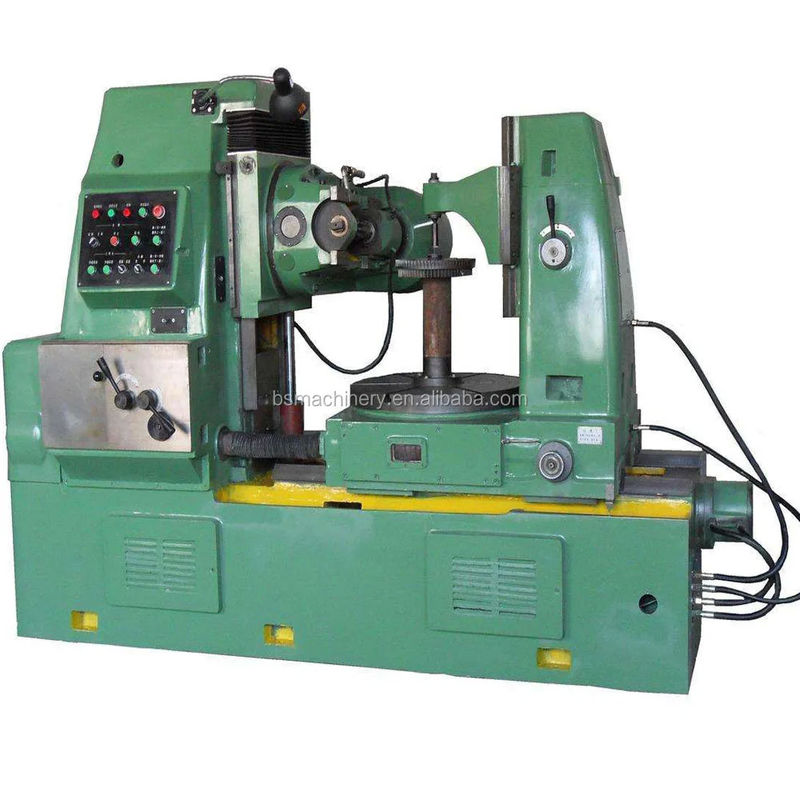

Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

worm gear hobbing machine

,

worm gear hobbing

,

worm gear hob cutter

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Gearbox
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
3300
Power (kW):
3
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Retail, Worm Gear Processing Shop, Gear Workshop
Showroom Location:
Brazil, Peru, Indonesia, Mexico, Russia, Uzbekistan, Australia
Name:
YK3150 Cnc Gear Hobber Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm And 10mm
Keyword:
Gear Hobbing Machine
Max Machining Width:
250mm
Power:
3KW
Weight:
3300KG
Machine Size:
2440*1370* 1800
COLOR:
Customer Required
Packing:
Export Standard
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Gearbox
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
3300
Power (kW):
3
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Retail, Worm Gear Processing Shop, Gear Workshop
Showroom Location:
Brazil, Peru, Indonesia, Mexico, Russia, Uzbekistan, Australia
Name:
YK3150 Cnc Gear Hobber Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm And 10mm
Keyword:
Gear Hobbing Machine
Max Machining Width:
250mm
Power:
3KW
Weight:
3300KG
Machine Size:
2440*1370* 1800
COLOR:
Customer Required
Packing:
Export Standard
Port:
Shanghai, Qingdao, Tianjin Port, China
Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter

Worm Gear Processing Lathe Y3150 Gear Cutting Hobber Machine



Product Description

Worm Gear Processing Lathe Y3150 Gear Cutting Hobber Machine



Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece.



The machine has the following characteristics:



Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.
Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.


High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.



 Technical Parameter

Unit

Y3150E

Max work piece diameter

mm

500

Max modulus

mm

8

Max machining width

mm

250

Min machining number of teeth



6

The largest machining spiral angle



+-45

Scope of main tool turning speed and grade

rpm/grade

40-250/9

Max turning angle of tool



240

Max tool loading dimensions(diameter* length)

mm

160 *160

Main motor

kw

6.45

Spindle taper



Morse 5

Max axial amount of movement of tool

mm

50

Distance between axis line of tool and worktable face

mm

235-535

Min distance between tool axis and worktable axis

mm

30

Distance between back rest under face and worktable face

mm

380-630

Machine size(length* width* height)

mm

2440*1370* 1800

Weight

kg

4500



Product photos for your reference:





Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 0



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 1



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 2



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 3



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 4



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 5



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 6



Worm Gear Hobbing Machine Processing Lathe Y3150 Gear Hobber Cutter 7
