Y3180H Gear Cutting Lathe Universal Hydraulic Bevel

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO9001:2008

Model Number: Y3180H

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

Gear Cutting Lathe

,

Y3180H Gear Cutting Lathe

,

Bevel Gear Cutting Machines

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Small Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG, 4500KG
Warranty:
12 Months
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Small Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG, 4500KG
Warranty:
12 Months
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
Y3180H Gear Cutting Lathe Universal Hydraulic Bevel

Y3180H Gear Cutting Lathe Universal Hydraulic Bevel Gear hobbing machine



Product Description

Y3180H Gear Cutting Lathe Universal Hydraulic Bevel Gear hobbing machine



High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters(Y3180).





Model Y3150 Y3180
Max.diameter of machining spur gears with external support 350mm 550m
Max. diameter of machining spur gears without external support 500mm 800mm
Dia. of worktable 520mm 650mm
Max. cutting module 8mm 10mm
Max. Processing width 250mm 300mm
Min.number of teeth processed 6 8
Max.vertical travel of tool seat 300mm 350mm
Min.turning angle 240° 240°
Max.tool loading dimensions(Dia.*L) 160*160mm 180*180mm
Dia. Of hob mandrel 22/27/32mm 22/27/32/40mm
Max. diameter of hob 160mm 180mm
Diameter of table hole 80mm 80mm
Hob spindle speed step 12 steps 12 steps
Hob spindle speed scope 50-275rpm 40-200rpm
Vertical feed range of the hob per revolution of the workpiece 0.24-4.25mm/r 0.4-4mm/r
Main motor power 4.75kw 5.5kw
Main motor speed 1430rpm 1500rpm
Machine weight 4500kg 5500kg
Machine tool dimensions (L*W*H) 2440*1370*1800mm 2752*1490*1870mm

Product photos for your reference:

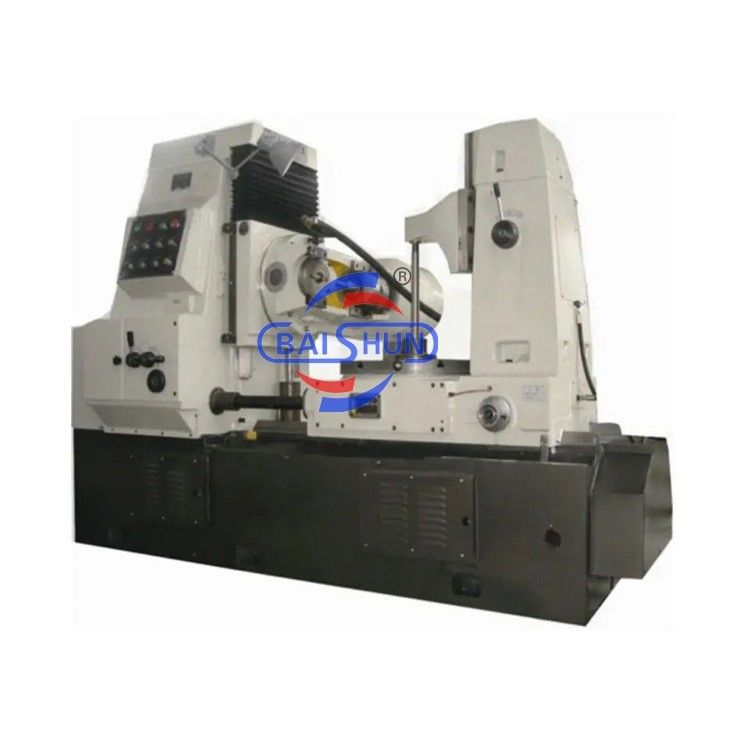

Y3180H Gear Cutting Lathe Universal Hydraulic Bevel 0

Y3180H Gear Cutting Lathe Universal Hydraulic Bevel 1Y3180H Gear Cutting Lathe Universal Hydraulic Bevel 2
