Y3150 Gear Hobbing Machine For Sale Metal

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO9001:2008

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Standard export package

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

y3150 gear hobbing machine

,

gear hobbing machine for sale

,

Y3150 Hobbing Machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Yk3150 Cnc Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG, 4500KG
Warranty:
12 Months
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
Yk3150 Cnc Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
COLOR:
Customer Required
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2440*1370* 1800
Weight:
4500KG, 4500KG
Warranty:
12 Months
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
Y3150 Gear Hobbing Machine For Sale Metal

Economic Gear Hobbing Machines Factory Direct Metal Gear Hobbing Machine For Sale

Product Description

 Economic Gear Hobbing Machines Factory Direct Metal Gear Hobbing Machine For Sale


The gear hobbing machine is a specialized type of milling machine used for cutting gears, splines, and worm gears. It employs a rotating hob to cut teeth into the workpiece, producing gears of various sizes and shapes. Gear hobbing machines are widely used in the manufacturing of gears for applications such as automobiles, aerospace, and industrial machinery.


1. The machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.
2. The machine is characterized by good rigidity, high working accuracy, easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.
4. According to the special needs of users, can be raised or extended tool to expand the scope of the processing machine accuracy.
5. Easy in operation and maintain.


ModelY3150Y3180
Max.diameter of machining spur gears with external support350mm550m
Max. diameter of machining spur gears without external support500mm800mm
Dia. of worktable520mm650mm
Max. cutting module8mm10mm
Max. Processing width250mm300mm
Min.number of teeth processed68
Max.vertical travel of tool seat300mm350mm
Min.turning angle240°240°
Max.tool loading dimensions(Dia.*L)160*160mm180*180mm
Dia. Of hob mandrel22/27/32mm22/27/32/40mm
Max. diameter of hob160mm180mm
Diameter of table hole80mm80mm
Hob spindle speed step12 steps12 steps
Hob spindle speed scope50-275rpm40-200rpm
Vertical feed range of the hob per revolution of the workpiece0.24-4.25mm/r0.4-4mm/r
Main motor power4.75kw5.5kw
Main motor speed1430rpm1500rpm
Machine weight4500kg5500kg
Machine tool dimensions (L*W*H)2440*1370*1800mm2752*1490*1870mm

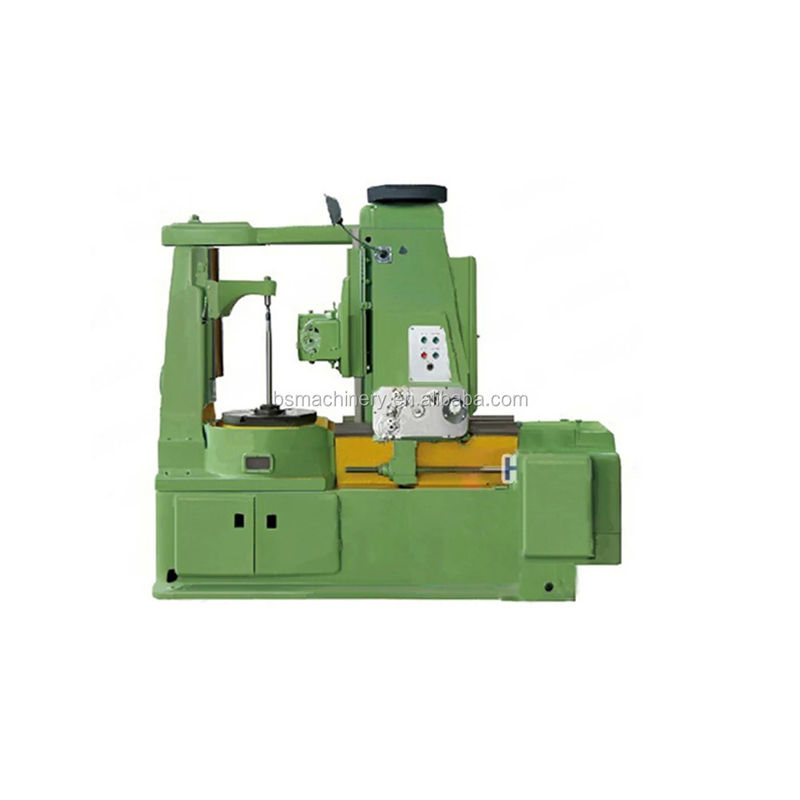

Product photos for your reference:
Y3150 Gear Hobbing Machine For Sale Metal 0Y3150 Gear Hobbing Machine For Sale Metal 1Y3150 Gear Hobbing Machine For Sale Metal 2


Our Services



1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.
