Universal Gear Hobbing Machine High Precision 8mm Modulus Manual

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: ISO

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Exported standard package
gear hobbing machine

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

universal gear hobbing machine

,

Gear Hobbing Machine High Precision

,

universal hobbing machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Gear
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800mm
Warranty:
1 Year, 12 Month
Key Selling Points:
Competitive Price
Weight (KG):
45000
Power (kW):
4.75
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Machine Tools Workshop
Showroom Location:
Brazil, Peru, Indonesia, Mexico, Russia, Chile, Ukraine
Product Name:
Gear Hobbing Machine
Color:
White Or As Customer's Requirement
Keyword:
Small Gear Hobbing Machine
Max Machining Width:
250mm
Motor Power:
6.45kw
Max Work Piece Diameter:
500mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Machine Size:
2440 X 1370 X 1800mm
Weight:
4500kg
Port:
Qingdao Port, China Or As Customer's Requirement
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Gear
Voltage:
380V/50Hz
Dimension(L*W*H):
2440 X 1370 X 1800mm
Warranty:
1 Year, 12 Month
Key Selling Points:
Competitive Price
Weight (KG):
45000
Power (kW):
4.75
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Machine Tools Workshop
Showroom Location:
Brazil, Peru, Indonesia, Mexico, Russia, Chile, Ukraine
Product Name:
Gear Hobbing Machine
Color:
White Or As Customer's Requirement
Keyword:
Small Gear Hobbing Machine
Max Machining Width:
250mm
Motor Power:
6.45kw
Max Work Piece Diameter:
500mm
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Machine Size:
2440 X 1370 X 1800mm
Weight:
4500kg
Port:
Qingdao Port, China Or As Customer's Requirement
Universal Gear Hobbing Machine High Precision 8mm Modulus Manual

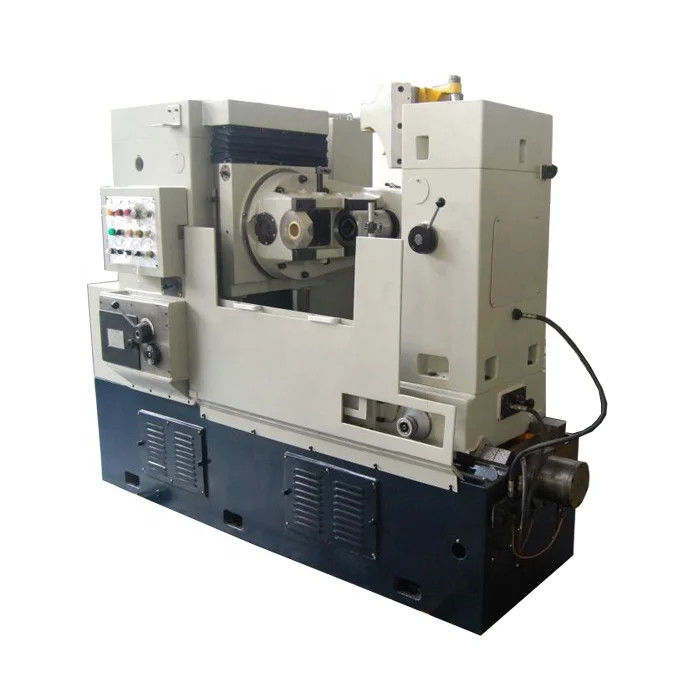

New Brand High Precision 8mm Modulus Manual Universal Gear Hobbing Machine

Product Description



Y3180/Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:

1.Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.



2.Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.



3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.



4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.



5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.



6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.



7.External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters(Y3180).

Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 0



Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 1



Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 2



Gear Hobbing Machine Technical Data:

Iterms

Y3150

Y3180

Max.dia.Of workpiece ( without back column/with back column)  mm

500/500

800/550

Max. modulus mm

8/6

10/8

Max machining width mm

350

500

Minimum hobbing gear teeth  (Z/K)

5

7

Max. travel of carriage in vertical direction  mm

430

530

Max. helix angle in turning bevel gear

±45°

±45°

Distance between axis of cutter and work table face mm

235~665

235~765

Spindle Taper

MT.5

MT.5

Max. dimension of cutter mm

Φ160×180

Φ160×180

Max. axial movement of cutter mm



180

Diameter of changeable hobbing arbor mm

22,27,32

27,32,40

distance from hob center to worktable center mm

30~330

50~550

Rapid moving speed of work table mm

50

50

External Diameter/bore diameter of work table mm

510/80

650/80

spindle speed steps

9

8

spindle speed  range  rpm

40~250

40~200

axial feeds range mm/rev

12-step 0.4~4

12-step 0.4~4

power of main motor synchro-speed    kw/rpm

4/1500

5.5/1500

power of rapid axial motor synchro-speed kw/rpm

1.1/1500

Power of rapid worktable motor synchro-speed kw/rpm

1.1/1000

1.1/1000

Power of Pump motor synchro-speed  kw/rpm

4500

5800

Net Weight kg

4500

5800

Overall Size   mm

2440×1270×1920

2765×1420×2030



Details Discription:

Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 3



Casting parts

Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 4

Packaging & Shipping

 Payment terms

We usually use T/T, L/C

T/T:T/T 30% in advance, the balance be paid after inspection before the delivery

Before delivery, we will send you the pictures of finished machines and welcome you to come to our factory for inspection

Way of packing

FCL&LCL export standard in 20/40feet container

FCL:Sea-worthy package,machine are fixed in container and the spare parts are packed in wooden boxes

Shipping

MSK/MSC/APL/EMC/PIL and so on

Warranty

12 months under normal use except for wearing parts

Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 5

Our Services

1. 24 Hours after sales service by E-mail or Phone.

2. 100% response rate.

3. Engineers available to service overseas.

4. OEM service is available

5. Warranty: 12 months, beyond the warranty period, all spare parts offered to you with factory price.

Our Certification:

Universal Gear Hobbing Machine High Precision 8mm Modulus Manual 6

Tags:
