Y3150E cylindrical gear hobbing machines Processing

Product Details

Place of Origin: Henan, China

Brand Name: Baishun

Certification: ce

Model Number: Y3150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

cylindrical gear hobbing machines

,

Y3150E

,

Cylindrical Gear Machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380v
Dimension(L*W*H):
2440*1370*1800
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
4500
Applicable Industries:
Building Material Shops, Construction Works , Energy & Mining
Showroom Location:
None
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Name:
Y3150E Precision Gear Hobbing Machine Price
Key Words:
Gear Hobbing Machine Price
Max Diameter Of Workpiece:
500mm
Max Modulus:
8/6mm
Max Machining Width:
250mm
Color:
Customized Option
Precision:
High Precision
Function:
Processing Cylindrical Gear, Worm Gear, Spur Gear
Power(W):
4kw
Port:
Qingdao Port, Others Main Port China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Voltage:
380v
Dimension(L*W*H):
2440*1370*1800
Warranty:
1 Year
Key Selling Points:
Competitive Price
Weight (KG):
4500
Applicable Industries:
Building Material Shops, Construction Works , Energy & Mining
Showroom Location:
None
After-sales Service Provided:
Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
None
Name:
Y3150E Precision Gear Hobbing Machine Price
Key Words:
Gear Hobbing Machine Price
Max Diameter Of Workpiece:
500mm
Max Modulus:
8/6mm
Max Machining Width:
250mm
Color:
Customized Option
Precision:
High Precision
Function:
Processing Cylindrical Gear, Worm Gear, Spur Gear
Power(W):
4kw
Port:
Qingdao Port, Others Main Port China
Y3150E cylindrical gear hobbing machines Processing

Y3150E Processing Cylindrical Gear Machine Gear Hobbing Machine



Gear hobbing machine basic machine introduction:



Y3150 series gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece.



Raised height for vertical column and increased stroke: The vertical column is made higher (180/130mm increased axial stroke in head slide than Y3180/Y3150 of the same kind) to enable processing of larger tooth width.
Service life of cutting tools is increased by electric tool leap. The longest stroke reaching 180mm, such electric tool leap takes longer hob and greatly increases life the hob.



1. The model Y3150E gear hobbing machine is applicable to cut spur and helical gears,worm wheels,sprockets and short spindle shafts in jobbing, small or batch production.
2. It is characterized by good rigidity,high working accuracy, easy operation and simple set up procedure, either conventional or climb method can be used in the machine.
3. In addition, the machine is equipped with an automatic shout-down device and safety-securing mechanisms,and an automatic lubricating system.
4. Imported hydraulic components can be used for the machine according to the customers requirements. Furthermore,tangential hob head is also available for special order to cut worm wheels under tangential feeding mode.

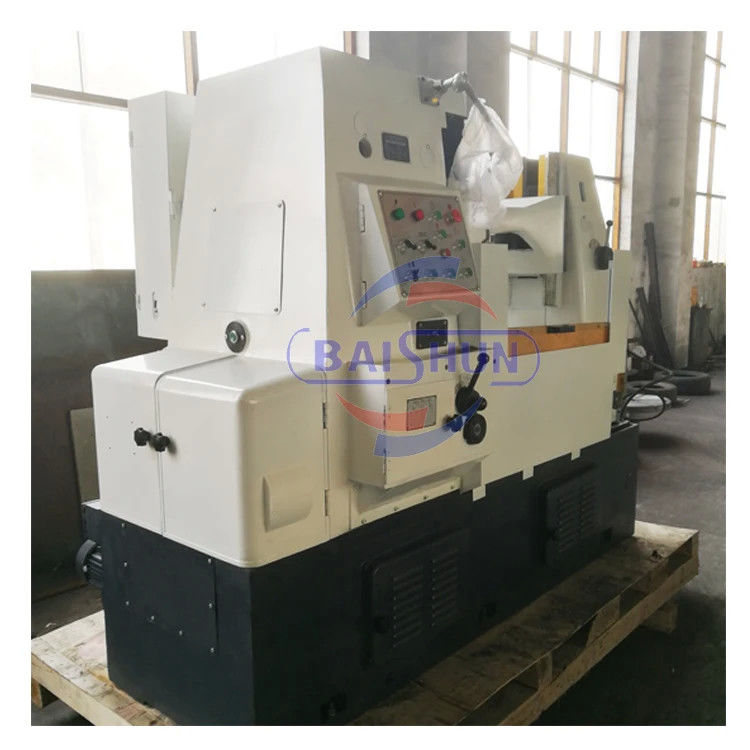

Y3150E cylindrical gear hobbing machines Processing 0Y3150E cylindrical gear hobbing machines Processing 1Y3150E cylindrical gear hobbing machines Processing 2









Specification of gear hobbing machine:

Model Y3150E Y3180H
Max workpiece diameter(with rear column/without rear column) 350mm/500mm 550mm/800mm
Max hobbing modulus 8mm 10mm
Max Processing Width 250mm 300mm
Min processing gear Z/K=6 Z/K=8
Max vertical travel of tool post 300mm 350mm
Max swiver angel of tool post ±240° ±240°
Distance between cutter axis and worktable 235-535mm 235-585mm
Spindle taper Morse 5 Morse 5
Hob diameter 160mm 180mm
Max axial movement of cutter  -------- 50mm
Hob abor diameters Φ22,Φ27,Φ32MM Φ22,Φ27,Φ32,Φ40MM
Distance between hob axis center and worktable 30-330mm 50-550mm
Worktable aperture 80mm 80mm
Taper bore of workpiece mandrel Morse 5 Morse 5
Worktable diameter 520mm 650mm
Spindle rotate speed and range 9Level 40-250R/Min 8Level 40-200R/Min
Rapid travel speed of tool post slide ≤540MM/Min ≤540MM/Min
Worktable rapid moving speed ≤500MM/Min ≤500MM/Min
Distance between worktable 400-600mm 400-600mm
Axial feed rate and degree 12Level 0.4-4MM/R 12Level 0.4-4MM/R
main motor power and synchro-speed N=4Kw 1500R/Min N=5.5Kw 1500R/Min
Machine weight 4500kg 5500kg
Overall dimension 2440*1370*1800MM 2752*1490*1870MM
