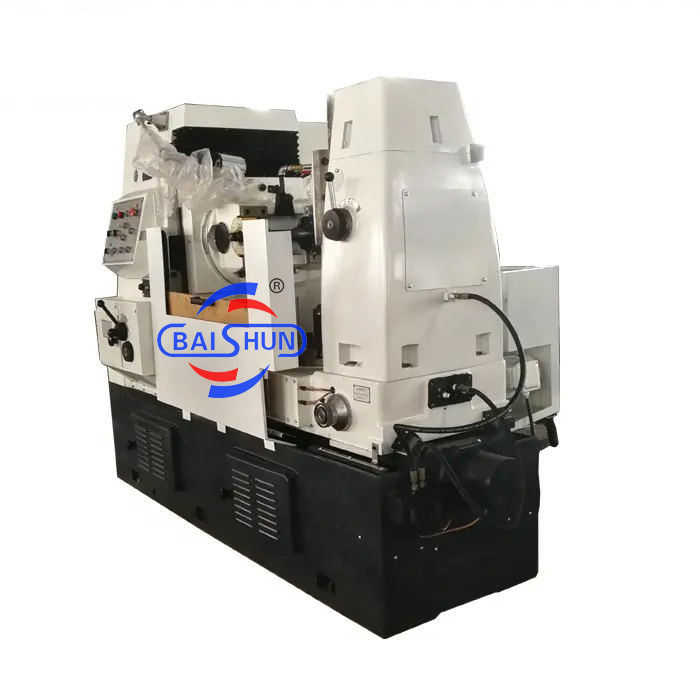

Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting
Y3180 Hydraulic Gear Hobber Machine Metal Cutting

Y3180 Hydraulic Gear Hobber Machine Metal Cutting

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN

Certification: CE and ISO

Model Number: Y3180H

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Export Standard Wooden Case Package Or Based on Customers' requirement.

Delivery Time: 55 work days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 50 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Y3180

,

gear hobber machine

,

gear hob machine

CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Bearing
Voltage:
380V/50Hz
Dimension(L*W*H):
2752*1490*1870mm
Warranty:
1 Year, 12 Months
Key Selling Points:
Multifunctional
Weight (KG):
5500
Power (kW):
6.45
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location:
Italy, Viet Nam, Brazil, Peru, Indonesia, Pakistan, Mexico, Russia, Thailand, Ukraine
Name:
Y3150 Spur Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2752*1490*1870mm
Color:
Custmized
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
CNC Or Not:
Normal
Condition:
New
Type:
Gear Hobbing Machine
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2023
Warranty Of Core Components:
1 Year
Core Components:
Bearing
Voltage:
380V/50Hz
Dimension(L*W*H):
2752*1490*1870mm
Warranty:
1 Year, 12 Months
Key Selling Points:
Multifunctional
Weight (KG):
5500
Power (kW):
6.45
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location:
Italy, Viet Nam, Brazil, Peru, Indonesia, Pakistan, Mexico, Russia, Thailand, Ukraine
Name:
Y3150 Spur Gear Hobbing Machine
Max Work Piece Diameter:
500mm
Max. Module:
8mm
Max Machining Width:
250mm
Motor Power:
6.45KW
Machine Size:
2752*1490*1870mm
Color:
Custmized
Power:
6.45KW
Port:
Shanghai, Qingdao, Tianjin Port, China
Y3180 Hydraulic Gear Hobber Machine Metal Cutting

 Y3180 Metal Cutting Gear Hobber Hydraulic Gear Hobbing Machine



Product Description

Gear hobbing machine is a machining process for cutting gears, splines, and worm gears on a hobbing machine, which is a special type of milling machine. The gear hobbing machine uses a rotating hob to cut teeth into the workpiece, creating gears of various sizes and shapes. It is widely used in the manufacture of gears for various applications such as automobiles, aerospace and other industrial machinery.



Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of larger diameters



Feature:

1. This machine is suitable for large and single production of cylindrical spur and helical gears, worm gears and sprocket.

2. High rigidity, high working accuracy, It is easy in operation and maintain.

3. Can be operated not only with forward and backward cutting, but also with axial or radial feed.

4. Easily operation and maintenance.


Model Y3150 Y3180
Max.diameter of machining spur gears with external support 350mm 550m
Max. diameter of machining spur gears without external support 500mm 800mm
Dia. of worktable 520mm 650mm
Max. cutting module 8mm 10mm
Max. Processing width 250mm 300mm
Min.number of teeth processed 6 8
Max.vertical travel of tool seat 300mm 350mm
Min.turning angle 240° 240°
Max.tool loading dimensions(Dia.*L) 160*160mm 180*180mm
Dia. Of hob mandrel 22/27/32mm 22/27/32/40mm
Max. diameter of hob 160mm 180mm
Diameter of table hole 80mm 80mm
Hob spindle speed step 12 steps 12 steps
Hob spindle speed scope 50-275rpm 40-200rpm
Vertical feed range of the hob per revolution of the workpiece 0.24-4.25mm/r 0.4-4mm/r
Main motor power 4.75kw 5.5kw
Main motor speed 1430rpm 1500rpm
Machine weight 4500kg 5500kg
Machine tool dimensions (L*W*H) 2440*1370*1800mm 2752*1490*1870mm


Y3180 Hydraulic Gear Hobber Machine Metal Cutting 0

Y3180 Hydraulic Gear Hobber Machine Metal Cutting 1

Y3180 Hydraulic Gear Hobber Machine Metal Cutting 2

Y3180 Hydraulic Gear Hobber Machine Metal Cutting 3

Y3180 Hydraulic Gear Hobber Machine Metal Cutting 4

Y3180 Hydraulic Gear Hobber Machine Metal Cutting 5
